VisiFerm DO SU Arc

Hamilton reusable VisiFerm DO SU Arc provides a cost-effective solution for integrating ODO Cap Sx sensor element into single-use applications, enabling seamless integration and real-time insights for data-driven process optimization.

Receive More Information

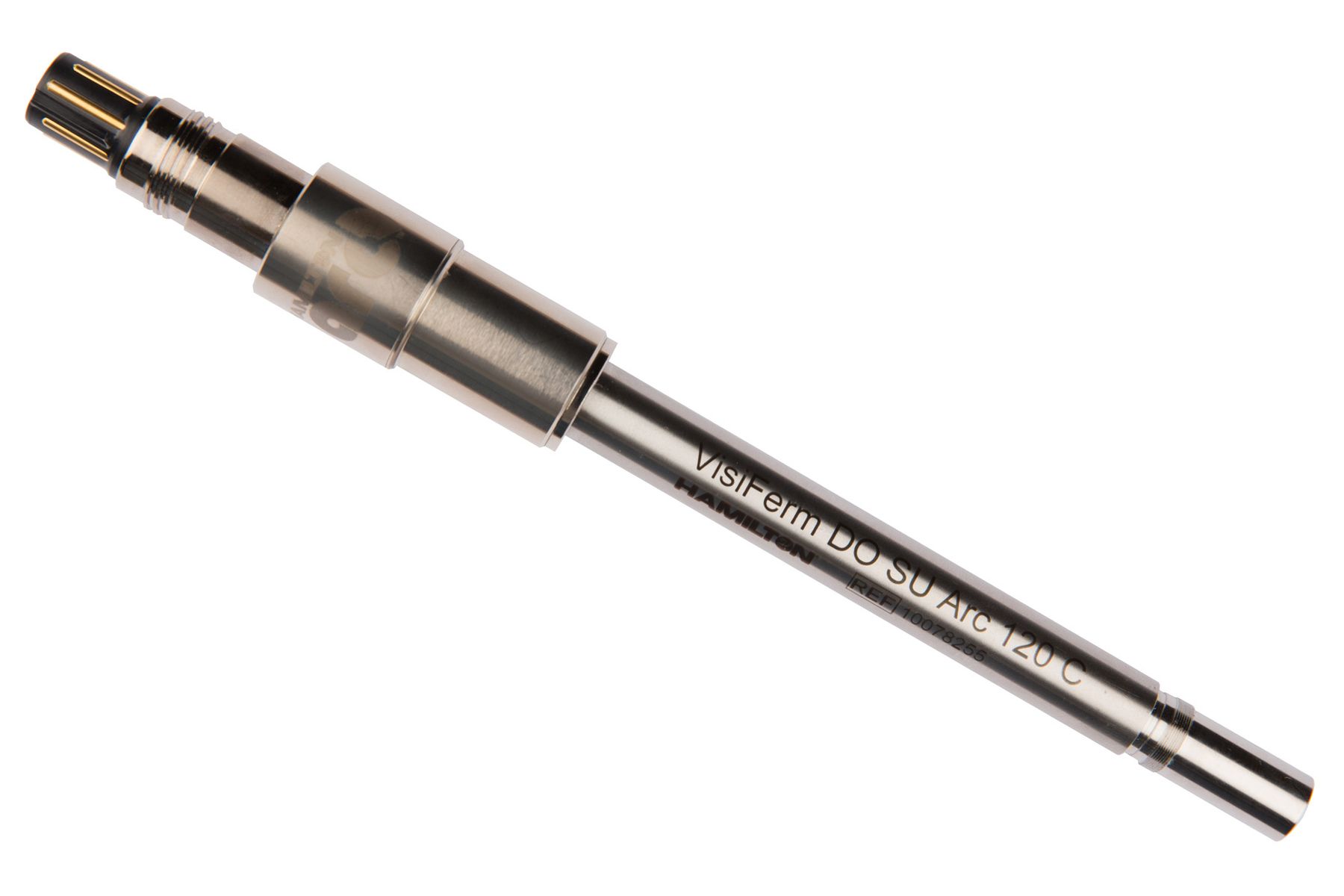

  • VisiFerm DO SU Arc Dissolved Oxygen Sensor

Commonly Grouped Accessories

VisiFerm DO SU Arc Details

The reusable VisiFerm DO SU Arc  serves as a direct interface to process control systems, converting signals from ODO Cap Sx sensors into stable digital signals without needing additional equipment like amplifiers or transmitters. Integrating proven sensor technology into single-use bioreactors or bags meets the requirements of the single-use bioprocessing.

Pre-installed, pre-calibrated ODO Cap Sx sensor elements eliminate contamination and leakage risks associated with traditional sensors. Gamma sterilized with the single-use container, they offer a safe, reliable solution with sufficient shelf life. Together with reusable VisiFerm DO SU Arc, they provide a cost-effective alternative to traditional sensors. Time consuming polarization, as required by polarographic DO sensors, is not necessary.

Since VisiFerm DO SU Arc  does not contact the media, gamma or steam sterilization is not needed. The VisiFerm DO SU Arc provides industry-standard digital Modbus RTU signals and an analog signal (4 to 20 mA).

Common applications Pharma & Biopharma, Bioprocess Downstream, Single-Use Bioprocessing, Bioprocess Upstream, Biotechnology, Agri-Food and Beverage

Reduce costs with reusable sensor design for single-use applications.

Simplify installation with direct mounting into SU bioreactors.

Ensure accurate dissolved oxygen measurements without compromising process integrity.

Reusable Sensor Design

  • Reusable VisiFerm SU reduces long-term costs.
  • Compatible with Hamilton single-use ODO Cap for reliable DO measurement in SU bioreactors and bags

Seamless Integration

  • Mounts directly into SU bioreactors or bags.
  • Easy installation with no additional hardware required.

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

VisiFerm DO SU Arc Specifications

Print
Sensor Family Visiferm SU
Electrical Connector VP8
Parameter DO (Optical)
Sensor Output Arc: Modbus, 4 to 20 mA
Measuring Range 4 ppb to 25 ppm (DO)
0 to 62.85 %-vol
0 to 300 %-sat
Electrolyte None
Accuracy at 25 °C ± 1.0 %-sat (at 20 %-sat), only in combination with the gamma irradiated Hamilton single-use ODO Cap and with product calibration
± 1.0 %-sat (at 100 %-sat), only in combination with the gamma irradiated Hamilton single-use ODO Cap and with product calibration
± 2.5 %-sat (at 200 %-sat), only in combination with the gamma irradiated Hamilton single-use ODO Cap and with product calibration
Drift at Room Temperature < 1 % per week (of measurement value)
Oxygen Consumption None
Temperature Sensor NTC 22 kOhm
Configurable Values Dissolved Oxygen (DO): mbar; %-sat; %-vol; µg/l; mg/l; ppb/ppm (gas); ppb/ppm; Temperature: °C
Analog Interface 1 4 to 20 mA for DO, programmable, galvanically not isolated; pulse width modulation 5 kHz
Digital Interface RS485 Modbus (max. 32 addresses)
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Operating Voltage 7 to 30 VDC max. 1 W
Serial Number Yes
Response Time t98% < 30 s at 25 °C
Certificate Yes, with parameter settings and materials used
ATEX Approval No
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Gamma Irradiatable No
X-Ray irradiatable No
Operating Temperature Range 0 to 60 °C
Required Flow None
