AI Lab Automation & Closed-Loop Experimentation

Computer monitor displaying a dark dashboard UI overlaid with candlestick charts and data visualization graphics

AI in Lab Automation

Connecting Scientific Intelligence with Reliable Physical Experimentation

AI is changing how laboratories design experiments, interpret results, and decide what to do next. But faster scientific decision-making only creates value when the laboratory can execute those decisions reliably, capture what actually happened, and return trusted data for the next iteration.

Hamilton's position

Hamilton bridges scientific intelligence and physical experimentation with reliable execution, open integration, and the traceability required for trusted closed-loop science.

Circular diagram of DMTA Closed-Loop Experimentation with four steps: Design, Make, Test, and Analyze, with a Repeat Cycle icon at center.

From AI-Generated Ideas to Experimental Evidence

AI can help researchers explore larger design spaces, prioritize experiments, and identify promising next steps. The challenge is turning those recommendations into controlled laboratory actions.

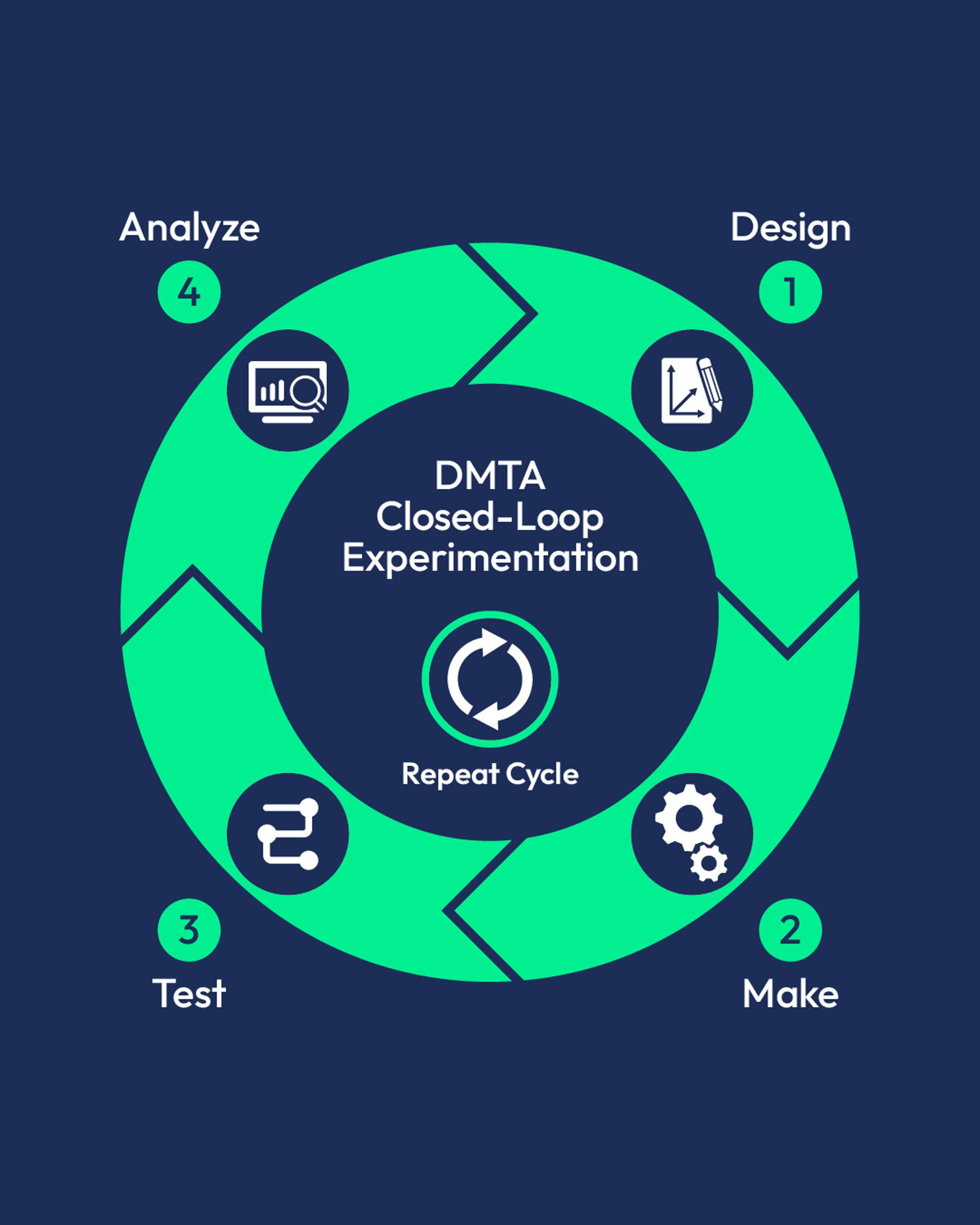

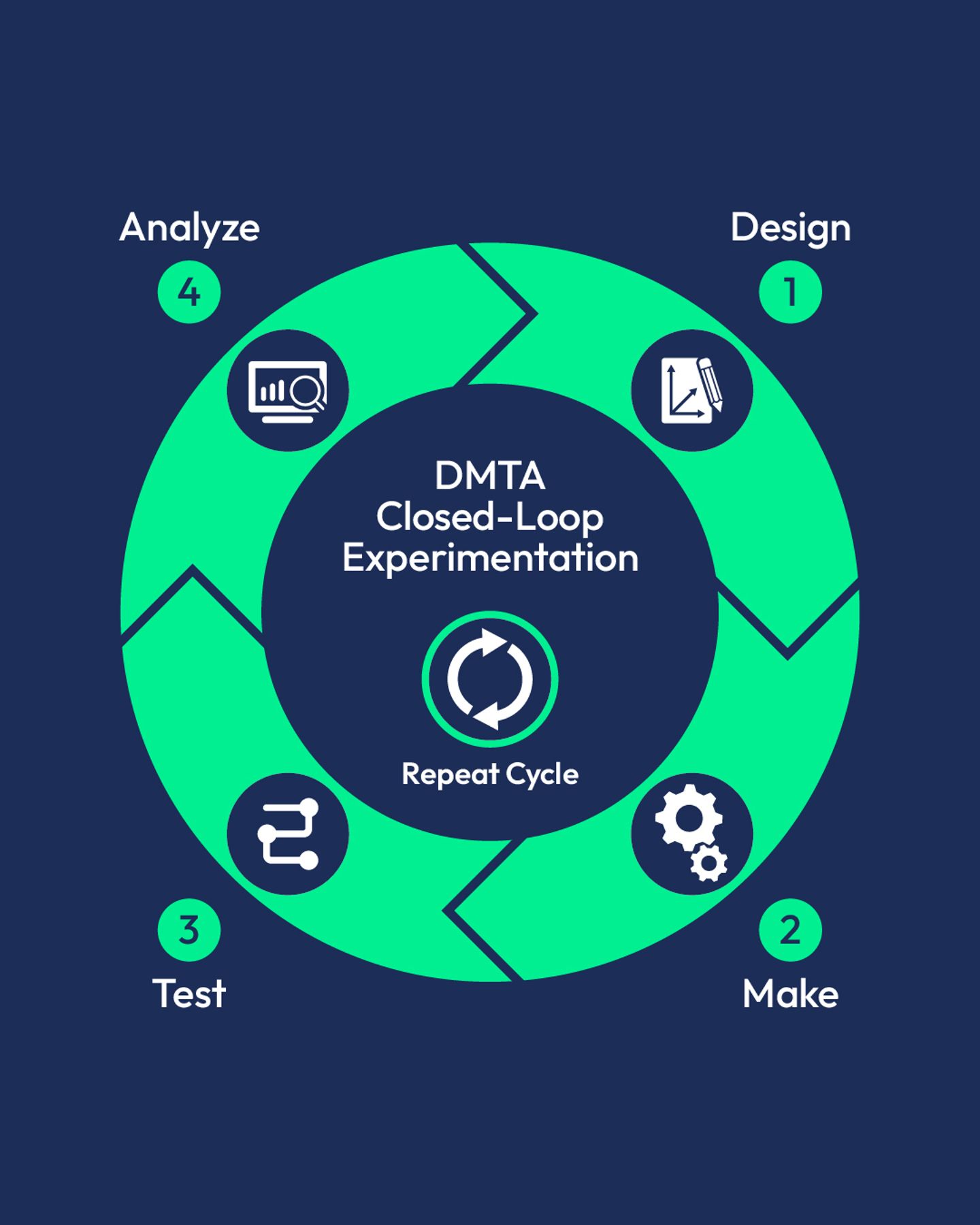

Closed-loop experimentation depends on a continuous Design–Make–Test–Analyze (DMTA) cycle:

Design	Defines the scientific objective and constraints
Make	Translates the design into controlled automated execution
Test	Measures the outcome and captures execution evidence
Analyze	Combines results and context to inform the next Design cycle

When these stages are connected, every experiment can contribute directly to the next.

Four-layer stack diagram showing Execution, Workflow Orchestration, Data/API-First, and Customer-Specific AI-Skilled layers for Discovery through Scale-Up workflows

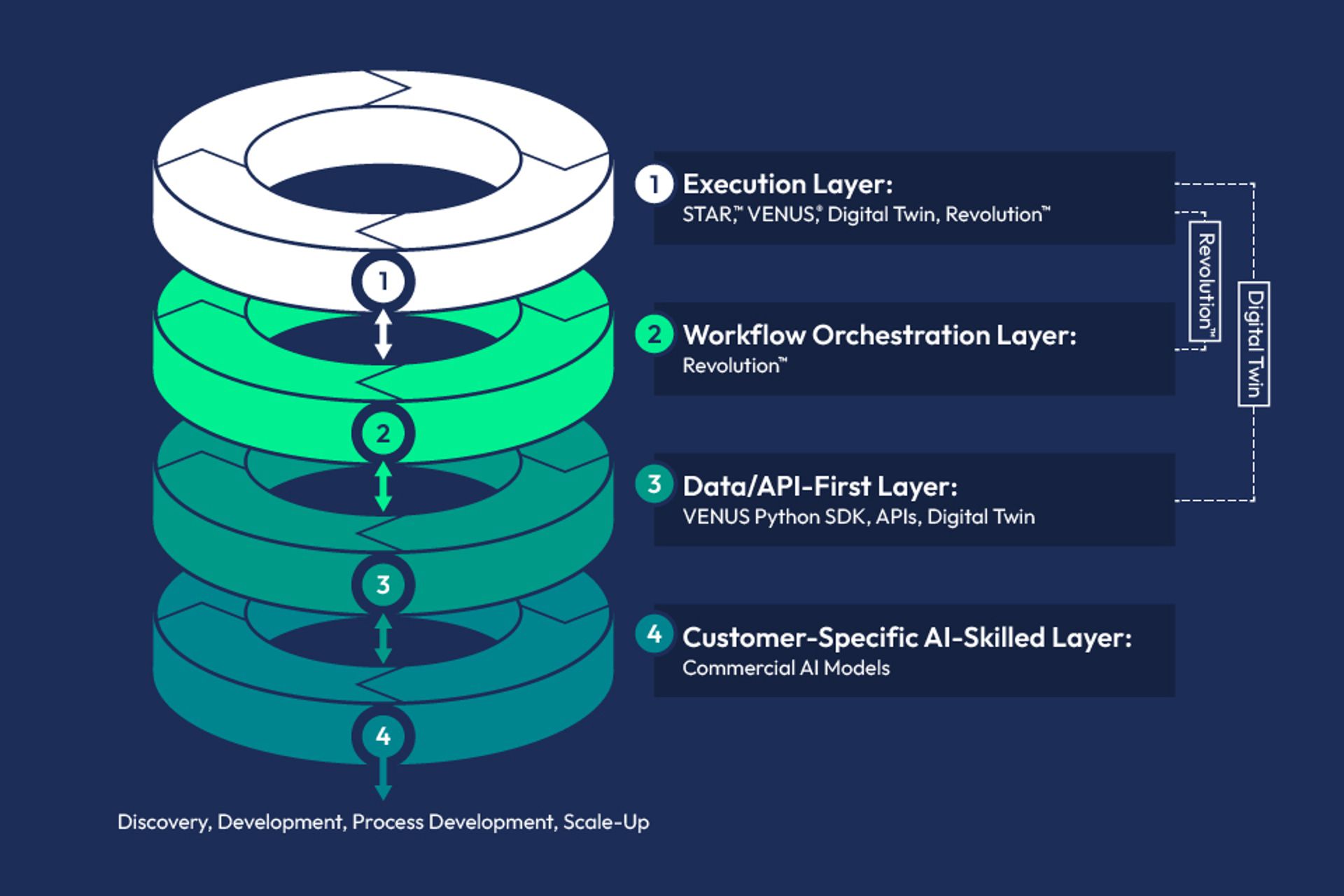

The Infrastructure Behind the Closed Loop

DMTA describes the scientific cycle. A connected laboratory also needs the technical infrastructure to support it. Hamilton’s approach brings together four complementary layers.

How the models work together

The four-layer architecture describes the enabling technology stack. DMTA describes the experimental closed loop that moves through it.

Automated liquid handler with multi-channel pipette head dispensing into pink-filled multi-well cell culture plates

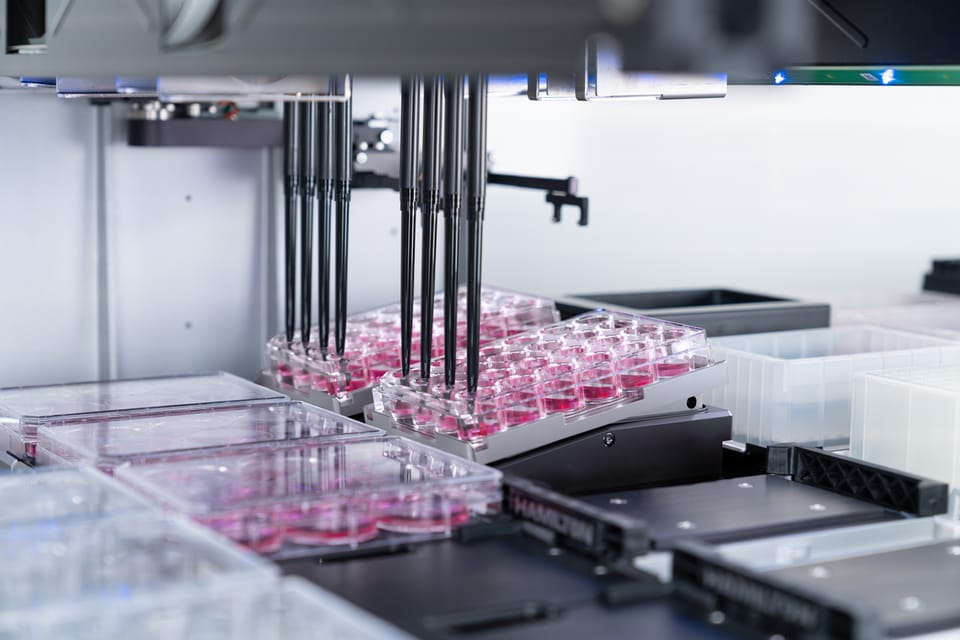

Reliable Physical Execution

Closed-loop science depends on experiments being performed as intended. Hamilton liquid handling platforms provide the precision, flexibility, and reliability required for complex workflows, including extended and increasingly unattended operation. Platforms such as Microlab® STAR™, Microlab® STAR V, Microlab® NIMBUS®, and Microlab® Prep™ provide the physical foundation for automated experimentation.

Hamilton Vantage automated liquid handler work cell with touchscreen monitor, Nimbus, and additional Hamilton instruments in a laboratory setting

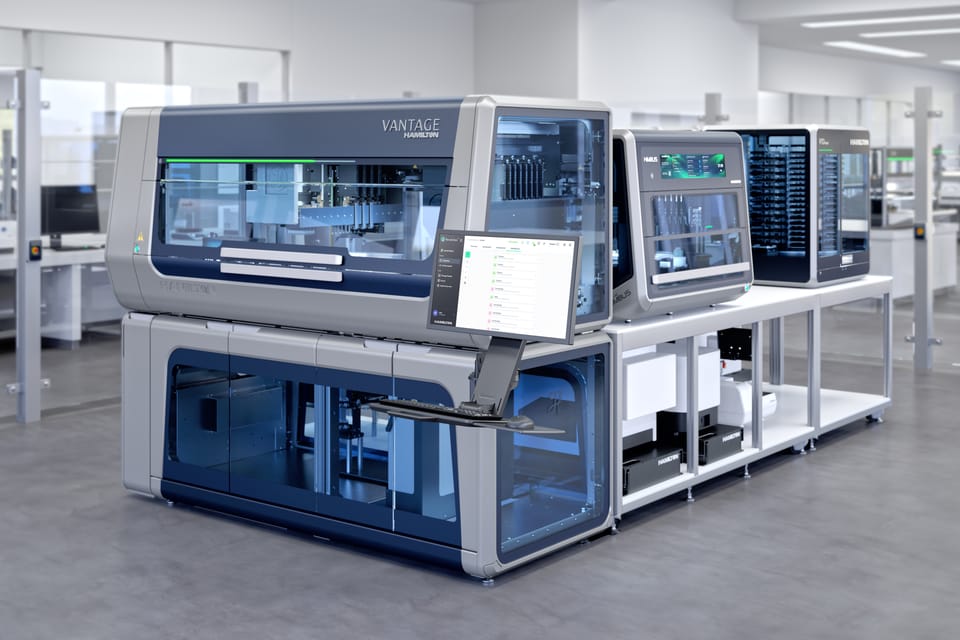

Workflow Orchestration

Orchestration connects workflows, instruments, samples, and resources so experimental plans can be translated into coordinated laboratory operations. VENUS® provides deterministic instrument-level execution, while REVOLUTION can extend orchestration across broader laboratory workflows. By coordinating workflow logic and resources across connected instruments, REVOLUTION supports consistent execution of complex, multi-device laboratory processes while making workflows easier to adapt as requirements change.

Data, Context, and Integration

A result alone does not tell the complete experimental story. Closed-loop systems also need to know how an experiment was performed: the method used, instrument state, liquid handling conditions, errors, interventions, environmental conditions, and other execution metadata. Hamilton technologies can capture and expose this operational context through run records, monitoring data, analytical measurements, and open interfaces. That allows downstream analytics and AI systems to work with more than an endpoint measurement—they can work with evidence of what actually happened.

Three lab professionals in white coats and safety glasses review software on a monitor beside a Hamilton Vantage instrument

Scientific Intelligence

Scientific models, optimization algorithms, and AI agents can use experimental results and context to determine what should happen next. Through open APIs and interfaces, Hamilton enables customers to connect their preferred AI models, analytics, ELN, LIMS, and data technologies to the automation environment. This gives laboratories the flexibility to evolve their intelligence layer independently while relying on Hamilton for execution, integration, and contextualized experimental data. The AI intelligence layer itself is provided by the customer or their selected technology partners.

Empty doctor office equipped with routine checkup tools and devices, modern electronic consultations at the private clinic. Healthcare industry improved for care management. Close up.

Making AI Decisions Executable

One of the most important boundaries in an AI-enabled laboratory is the transition from probabilistic scientific decision-making to controlled physical execution.

An AI model may recommend an experiment. The laboratory still needs to execute that experiment within defined parameters, operating limits, and during 24/7 operations reliably.
Hamilton’s role is to ensure that those requests are translated into controlled, traceable execution within defined operating boundaries.

Hamilton provides the deterministic execution layer together with the operational data needed to verify how an experiment was performed.

Liquid Handling Monitoring technologies such as TADM®, liquid level detection, system-state information, and run history can provide additional evidence about how execution steps were performed. The following instrument, sample and workflow data are available through Hamilton instrumentation:

Run identity (Run ID, method name/version incl GitHub versioning, start/end time, run status)
Sample and labware identity (Sample IDs, plate/tube barcodes, carrier IDs)
Transfer instructions (Requested volume, source, destination, liquid class, tip type, channel/head used)
Execution events (Aspirate, dispense, mix, tip pickup/ejection, plate movements and integrated-device)
Pipetting-monitoring data (Pressure signals TADM, pass/fail assessment, bubble/clot/empty-well or insufficient-volume indications)
Liquid-level data (Liquid detected/not detected, Double LLD: capacitive or pressure detection, detected liquid-surface height)
Timing and performance (Step timestamps, runtime, wait time, device utilization, interruptions and throughput)
Errors and interventions (Error code, affected channel/well, timestamp, retry, recovery decision, operator interaction)
Environmental data (Humidity, Temperature) captured in the instrument by CELSORA
Integrated device results (e.g. centrifuge status, thermocycler data, deck watch records or other results—if integrated and returned to Hamilton VENUS or REVOLUTION lab scheduling software)
Fluorescence and absorption measurements (Hamilton FLUOREYE and Cerillo readers)
Data feedback into the next DMTA cycle

From Experimental Data to Experimental Context

AI-ready laboratories require more than large volumes of data. They require contextualized data.

Traditional automation often solves the first loop very well. A liquid handler can aspirate and dispense with excellent precision. But the lab is not genuinely closed loop unless the downstream system also knows the context of each execution step:

Laboratory workstation with a desktop monitor displaying a Hamilton asset management dashboard, alongside a microscope and keyboard.

which sample was handled;
from which source and into which destination;
which protocol and version were used;
the requested and, where measurable, actual transfer conditions incl. environmental;
whether liquid-level detection, pressure monitoring, vision, or other checks passed;
whether a value represents a valid result, a failed measurement, a rerun, or missing data;
which instrument, calibration state, reagent lot, operator, and timestamp belong to the event.

The trust question

Precision liquid handling closes the physical workflow. Trusted, contextualized data closes the scientific loop.

This provenance helps explain not only what was measured, but how the result was generated. Hamilton’s opportunity lies not only in generating experimental results, but in helping laboratories preserve the context required to interpret those results reliably.

Open by Design

AI technologies and agents are evolving rapidly. Laboratories should not have to redesign their automation infrastructure every time a new model or analytics platform becomes relevant.

Hamilton provides an integration-ready hardware and software architecture based on a robust robotic execution layer, modular workflow orchestration layer and open data/API-first layer. This comprehensive technology ecosystem allows customers to connect to preferred scientific and digital technologies while keeping physical experimentation dependable.

Why Hamilton for AI-Enabled Laboratories?

Liquid handling, instrument control, orchestration, application expertise, and service support can be brought together within one automation environment. That can reduce vendor handoffs and make integration responsibilities easier to define.

Open interfaces and structured integration can reduce the need for bespoke connections between every instrument and software system. Fewer interfaces can mean less integration effort, lower cost and clearer system ownership.

For workflows where liquid handling is central, reproducible pipetting, liquid-class expertise, sensing, and monitoring provide a dependable physical foundation for repeated experimental cycles.

Run history, system state, analytical results, and experimental metadata provide evidence of what happened during Make and Test. That context can support Analyze—and ultimately improve the next Design cycle.

Building Trusted Closed-Loop Science

The autonomous laboratory will not be powered by AI alone. Its success will depend on how seamlessly scientific intelligence, physical execution, experimental data, and human oversight work together as one trusted system.

With decades of laboratory automation expertise, Hamilton provides the execution and integration foundation to start closed-loop experimentation today and scale toward increasingly autonomous science.
