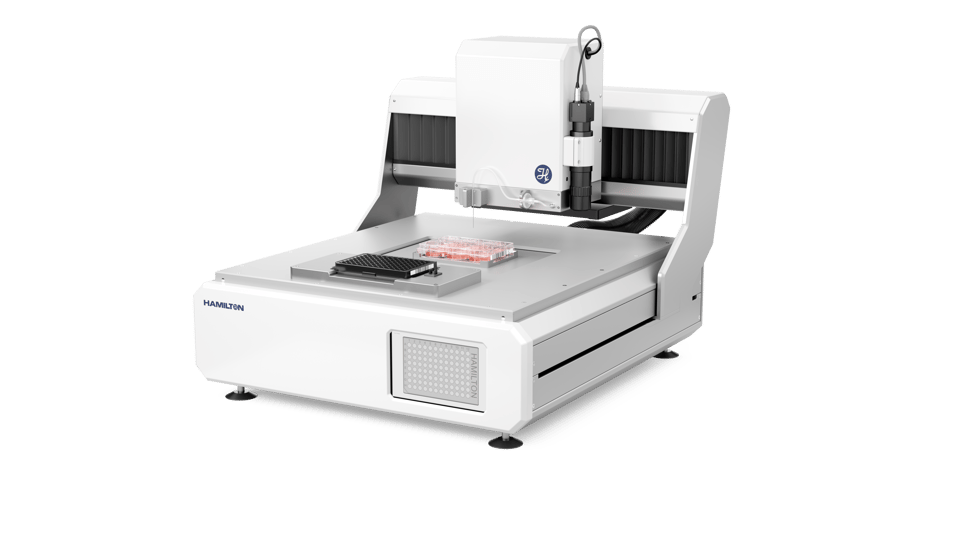

BIOSPOT Organoid Sorter

Name: BIOSPOT Organoid Sorter
Brand: Hamilton Company
SKU: BIOSPOT Organoid Sorter

Automated Transfer

Single Organoids

Pick and Place Workflow

Defined Criteria

Image-Based Selection

Size, Shape, Contrast

Integrated QC

Full Traceability

Pre- and Post-Imaging

Standardized 3D Cell Culture Assays

Standardize organoid selection and transfer into assay-ready plates to reduce variability and improve reproducibility in screening workflows. Replace manual handling with controlled, traceable automation.

Pause

Mute

Enter Fullscreen

Use case

How It's Used

Organoid Screening Workflow Automation

Automate the transition from heterogeneous organoid cultures to assay-ready plates using image-based selection and controlled transfer.

Reduce manual handling and improve consistency in high-throughput screening workflows.

From Culture to Assay-Ready Plates

The Organoid Sorter enables automated organoid workflow standardization for screening applications. It supports the transition from heterogeneous 3D cultures to reproducible assay-ready formats using image-based selection and controlled pick-and-place.

Selection and Transfer

Organoids are detected using integrated imaging and are selected based on configurable parameters such as size, morphology, and contrast. A pressure-controlled system enables precise aspiration and dispensing for targeted placement into defined wells.

Quality Control and Traceability

Both pre-and-post-transfer imaging enables quality control at each step. Process data, images, and parameters are automatically logged to support reproducible and traceable workflows.

Screening-Ready Performance

Demonstrated preparation of a 96-well assay plate in under 30 minutes using a 6-well source format with pre-and-post-pick imaging.

Common applications Cell Biology, Cell Culture, Cell-Based Assays, Pharma & Biopharma, Gene and Cell Therapy

Ensure consistent organoid selection and placement using image-based criteria, reducing variability at the start of screening workflows.

Automate time-intensive picking and plating steps to reduce hands-on time and minimize dependency on operator skill, enabling more consistent and efficient daily workflows.

Capture images, selection parameters, and transfer data for each step to support reproducible, documented, and auditable workflows.

Work with SBS plates and adaptable labware formats without reliance on proprietary consumables, enabling integration into existing workflows.

Scale from manual handling to automated plate preparation to increase screening throughput without proportional increases in labor or workflow complexity.

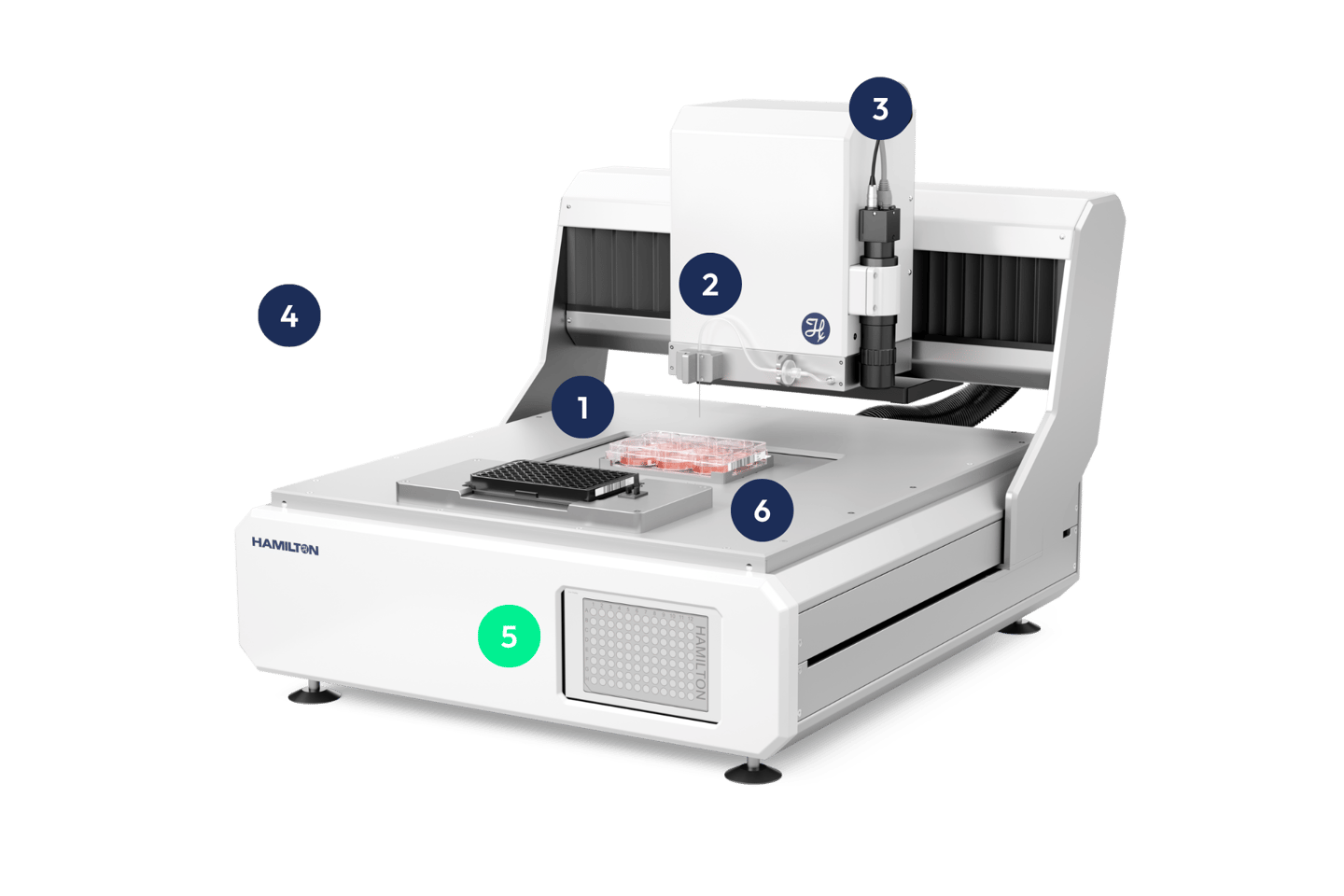

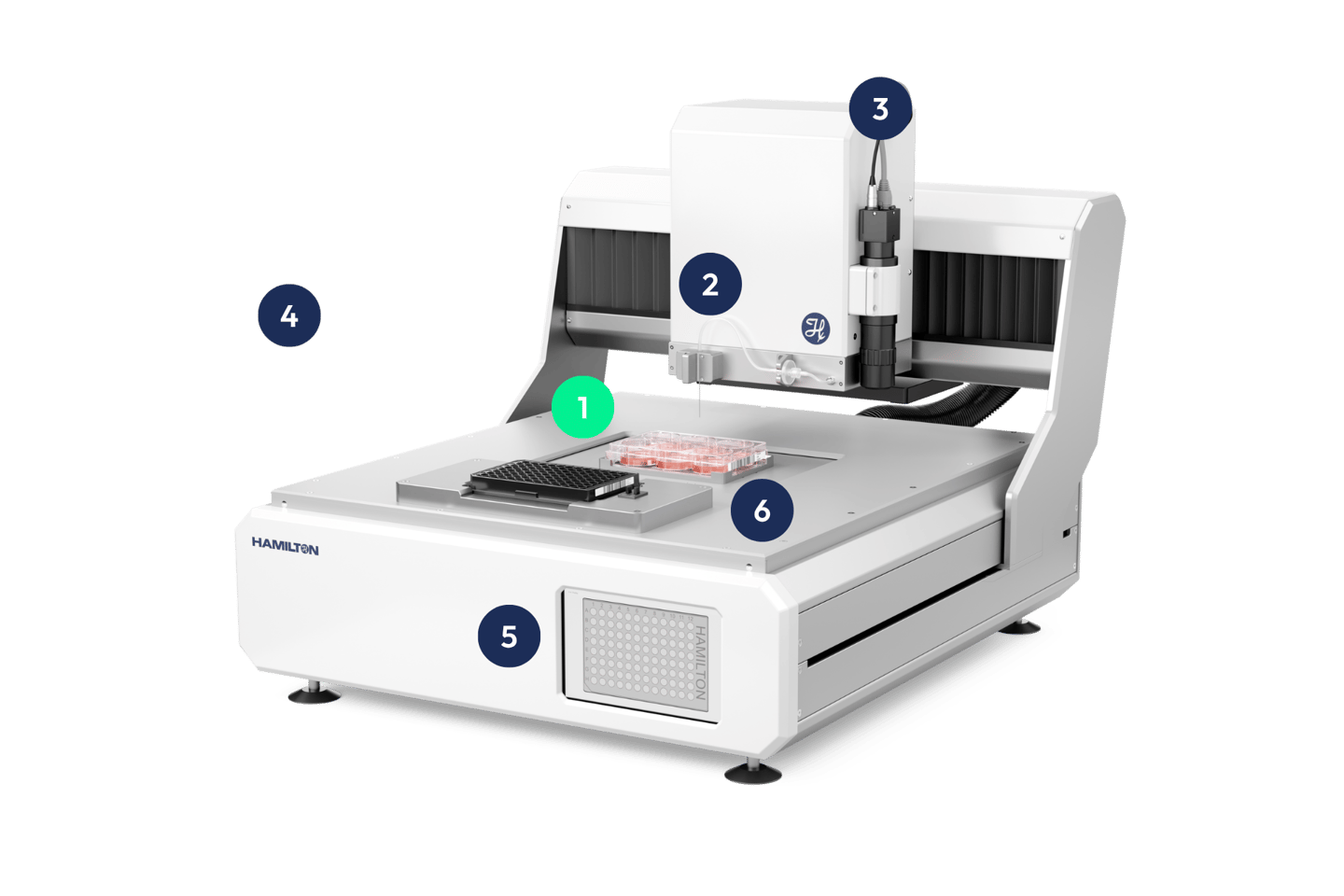

Core System Capabilities

The BIOSPOT Organoid Sorter integrates imaging, controlled liquid handling, and workflow software to enable precise organoid selection, transfer, and quality control in screening applications.

Image-Based Detection

BottomVIEW imaging enables detection and selection of organoids using configurable parameters such as size, circularity, brightness, and contrast.

Data Logging

Detection results, transfer parameters, and images are automatically recorded in structured folders to enable traceable workflows and downstream analysis.

Labware Flexibility

Supports SBS plates and adaptable labware formats, enabling use with microcavity plates and custom carriers without proprietary consumables.

Workflow Software

The user interface supports experiment setup, parameter control, and execution, with the ability to save and load workflows for repeatable operation.

Data Logging

Detection results, transfer parameters, and images are automatically recorded in structured folders to enable traceable workflows and downstream analysis.

Labware Flexibility

Supports SBS plates and adaptable labware formats, enabling use with microcavity plates and custom carriers without proprietary consumables.
