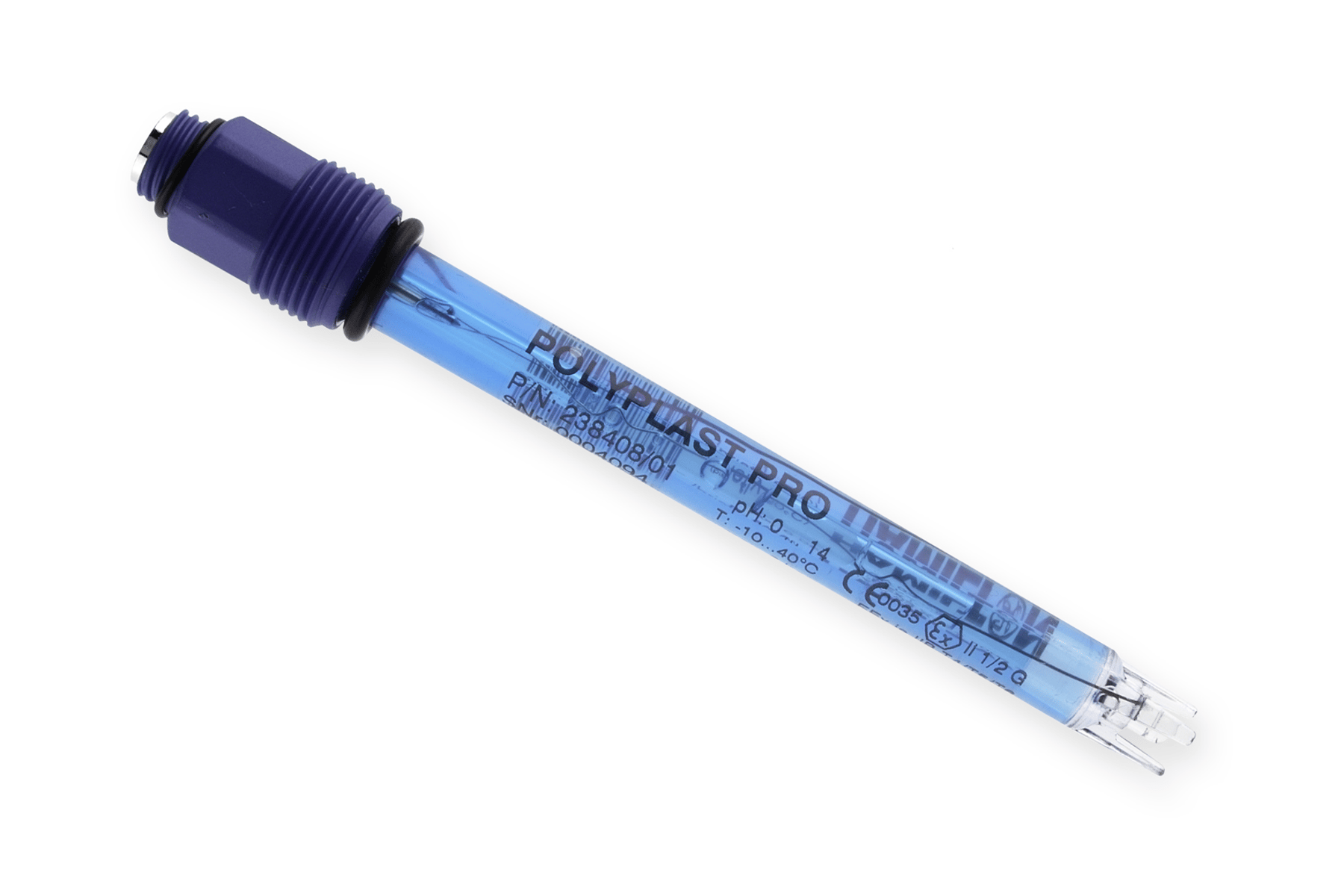

Polyplast PRO

Part # 238408

The Polyplast Pro sensor offers reliable pH measurement in low conductivity water applications. Its Single Pore design ensures fast, clog-free performance, while the robust plastic shaft provides durability and glass bulb protection.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Polyplast PRO Details

The maintenance free Polyplast Pro sensor is designed for pH measurements in water applications where sensor breakage is a concern, especially in low conductivity samples, e.g. wastewater, fish farming and groundwater.

The single pore liquid junction guarantees best measurement results because of direct contact between the sample and the Polisolve electrolyte - clogging is nearly impossible. The Polyplast Pro sensor comes with a robust plastic shaft and glass bulb protection.

Common applications Water, Energy, & Environment, Water and Wastewater

Reliable measurements with a never-clog single pore junction.

Offers durability and prevents breakage with a robust plastic shaft and notched tip.

Accurate readings even in challenging low conductivity water samples.

Single Pore Liquid Junction

  • This innovative design ensures direct contact between the reference electrode and the sample through a single, virtually uncloggable hole.
  • Paired with the Polisolve electrolyte, it prevents clogging and maintains stable measurements, especially in complex samples.

Robust Plastic Shaft with Glass Bulb Protection

  • Built with a durable plastic shaft that offers excellent chemical resistance and mechanical strength.
  • Features glass bulb protection, including a notched tip, specifically designed to prevent breakage in demanding applications like water treatment and fish farming.
  • Longer sensor lifespan reduces replacement costs.
Scientific Citations

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

Polyplast PRO Specifications

Print
Process Connection PG13,5
Wetted Parts GΙass
EPDM (Ethylene propylene elastomer)
SAN (Polystyrene-Acrylonitrile)
(FDA 21 CFR 177.2600; EU 1935/2004; USP <88> Class VI - 121 °C)
pH Glass Hamilton Type V Glass
Electrical Connector S8
a-length 120 mm
Parameter pH
Measuring Range pH 0 to 14
Electrolyte Polisolve
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Single Pore
Number of Diaphragms 1
Reference System Ag/AgCl
Liquid Earth No
Temperature Sensor No
O-ring Material FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate No
ATEX Approval II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Operating Temperature Range -10 to 40 °C (60 °C short exposure)
Sample min Conductivity 50 µS/cm
Pressure Range bar g 0 to 6 bar
