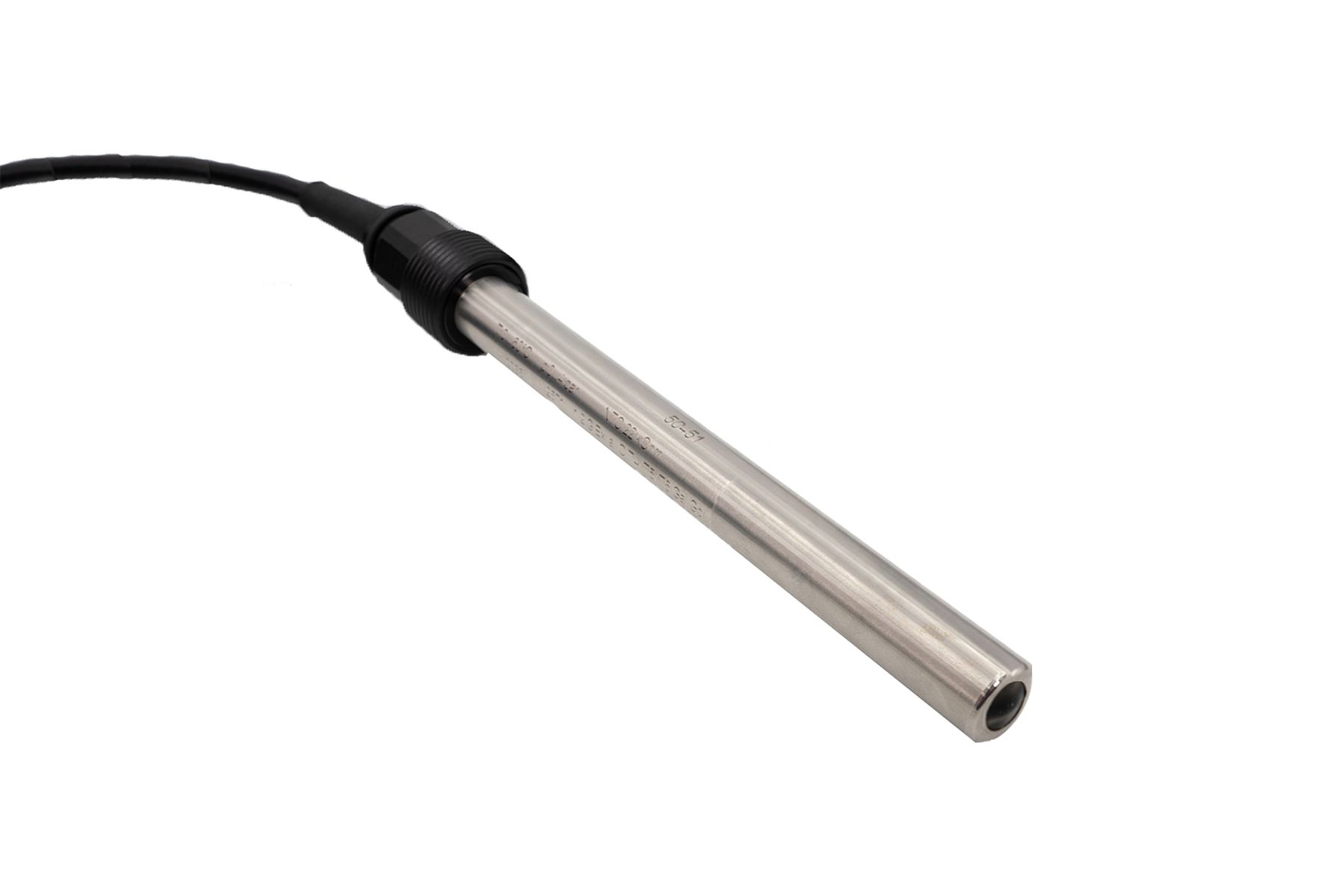

Oxysens

Part # 237150

The Oxysens electrochemical dissolved oxygen sensor is designed for water applications. Its key advantages are low maintenance, fast response, flow independence, and soiling resistance.

Receive More Information

Minimum: 1, Maximum: 1000

Oxysens Details

Oxysens is an electrochemical dissolved oxygen (DO) sensor specifically designed for water monitoring applications such as wastewater treatment, swimming pools, fish farms, and algae ponds. Building on Hamilton's proven electrochemical DO sensor technology, Oxysens provides reliable dissolved oxygen measurements while offering a simple, economical, and maintenance-free solution for routine process monitoring.

The sensor features a non-replaceable membrane and electrolyte, eliminating the need for routine membrane or electrolyte replacement throughout its service life. This maintenance-free design reduces operating costs, simplifies sensor handling, and minimizes maintenance effort.

Oxysens delivers fast response times and provides measurements that are largely independent of flow conditions and insensitive to soiling. These characteristics ensure reliable dissolved oxygen monitoring even in demanding water treatment applications.

Combining maintenance-free operation, robust measurement performance, and economical ownership, Oxysens provides a dependable solution for long-term dissolved oxygen monitoring in a wide range of water applications.

Common applications Water, Energy, & Environment, Power Generation, Agri-Food and Beverage, Brewing, Winemaking

Enables extended sensor lifetime

Easy integration into your process

Low sensor maintenance

Maintenance-Free Sensor Design

  • Our Oxysens sensor's maintenance-free design delivers time savings and cost-effective oxygen measurement for water applications.
  • It is not required to replace the membrane of the sensor or the electrolyte.


Fast Sensor Responsive Time

We have designed the Oxysens to be insensitive to water flow rate and soiling, enabling a quick response time.

Scientific Citations

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in troubleshooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • The sensors allowed us to improve the end product.

    We have high quality standards and are convinced that Hamilton is able to meet them with its oxygen sensors. We use the oxygen sensors throughout the entire area of ​​beer production and bottling. The sensors allowed us to improve the end product. Hamilton's support is excellent at all times.

    Marco Punke
    Team leader for technology and QM/UM, Princely Fürstenbergische Brewery GmbH & Co. KG

Oxysens Specifications

Print
Wetted Parts Stainless Steel 1.4435
PEEK (Polyetheretherketone)
EPDM (Ethylene propylene elastomer)
VMQ (Silicone elastomer)
Silicone
Electrical Connector 5 m Fix Cable / Open End
a-length 120 mm
Measuring Range 40 ppb to 40 ppm (DO) or 0.8 to 1000 mbar (pO₂)
Electrolyte Oxylyte
Drift at Room Temperature < 1 % per week
Membrane Cap Standard
Oxygen Consumption Ca. 20 ng/h in air at 25 °C
Temperature Sensor NTC 22 kOhm
Current in Air at 25 °C 40 - 80 nA
Process Connection PG13,5
Surface Quality of Steel Ra < 0.8 µm (N6)
Electrode system Silver platinum combination
Polarization Voltage and Time -670 ± 50 mV, ≥ 2 hours
Serial Number Yes
Response Time t98% < 60 s at 25 °C
Certificate No
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Operating Temperature Range 0 to 60 °C
Pressure Range bar g 0 to 4 bar
Max. CO₂ Partial Pressure 0.01 bar
Required Flow ≥ 0.03 m/s

Compatibility with Hamilton Devices

Explore the limitless possibilities of Hamilton products.

Oxysens Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

When should I replace the membrane and electrolyte in my polarographic DO sensor?

The frequency of membrane and electrolyte replacement is process specific and will vary. Routine calibration before each run can identify a high nA current at the nitrogen zero point or low nA current in air, indicating a need to replace the membrane and electrolyte. Click to learn more about membrane replacement.
