Take Control of your Process Sensor Time
By automating retraction and cleaning of sensors in our Retractex retractable sensor housings, the RetractoControl 2 control system saves valuable time in process workflows. Customizable settings support your routine cleaning requirements so that you can optimize sensor performance to support a long sensor life.

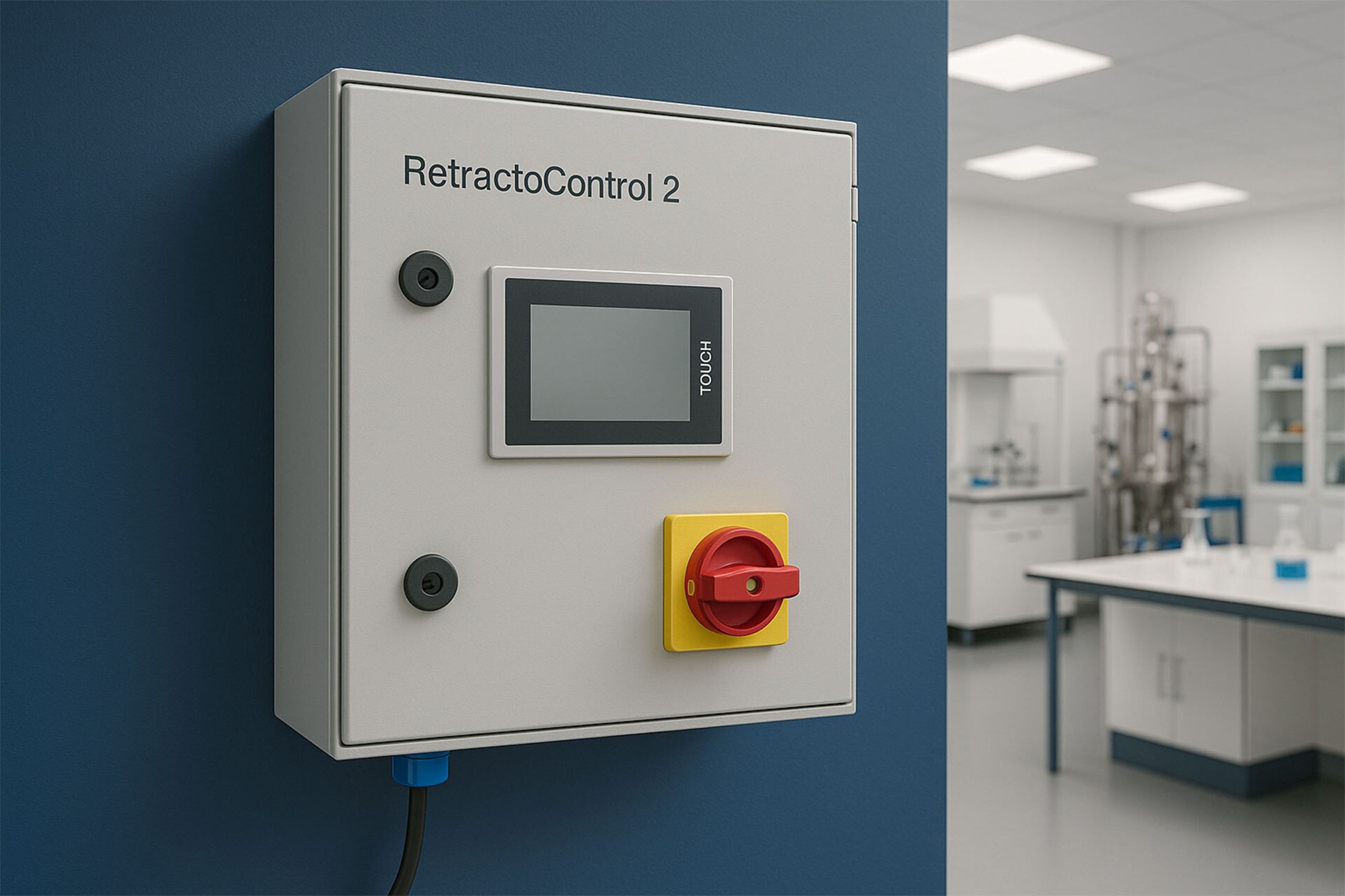

RetractoControl 2 Electro-pneumatic Control System
Automated Sensor Retraction and Cleaning
The RetractoControl 2 integrates seamlessly into your process application and works with our Retractex housings and sensors for process analytics to automate sensor retraction, reinsertion, and cleaning. This automated electro-pneumatic control system is easily programmed to optimize specific processes and automate sensor cleaning around your schedule to reduce maintenance time and efforts while helping to extend the sensor’s lifetime.
A Welcome Addition to Boost Process Efficiencies
RetractoControl 2 can be rapidly installed in existing workflows and is particularly useful throughout the chemical industry and downstream pharmaceutical applications.
RetractoControl 2 takes over sensor retraction and cleaning so that users can focus efforts on high-value activities and the process can continue uninterrupted.
By automating routine cleaning cycles and retracting the sensor when not needed, the sensor’s overall lifetime may be enhanced in your process.
With easy, rapid installation, customizable settings, and automated electro-pneumatic control, RetractoControl 2 supports chemistry, pharmaceuticals, and more.
Connection Options
1

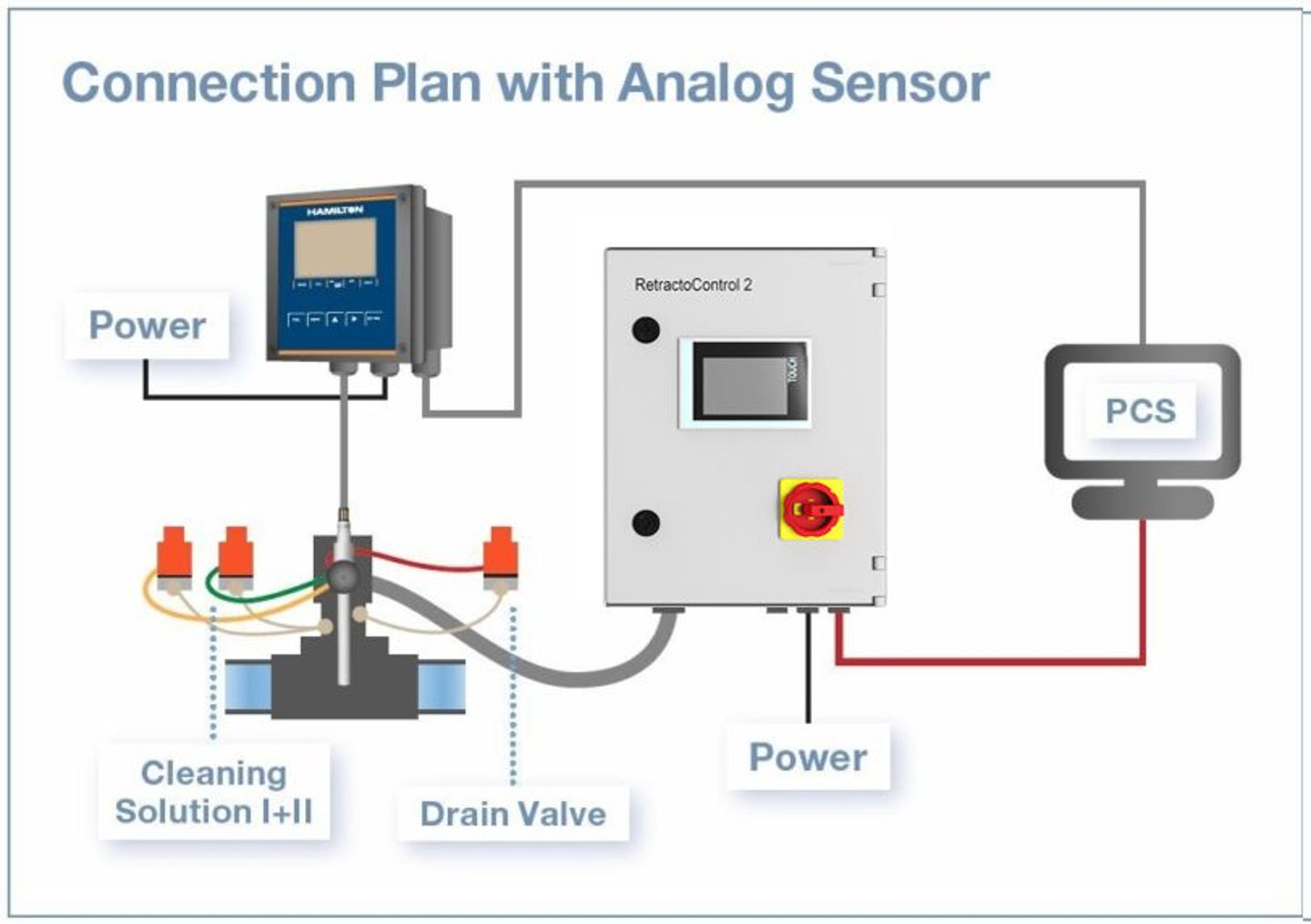

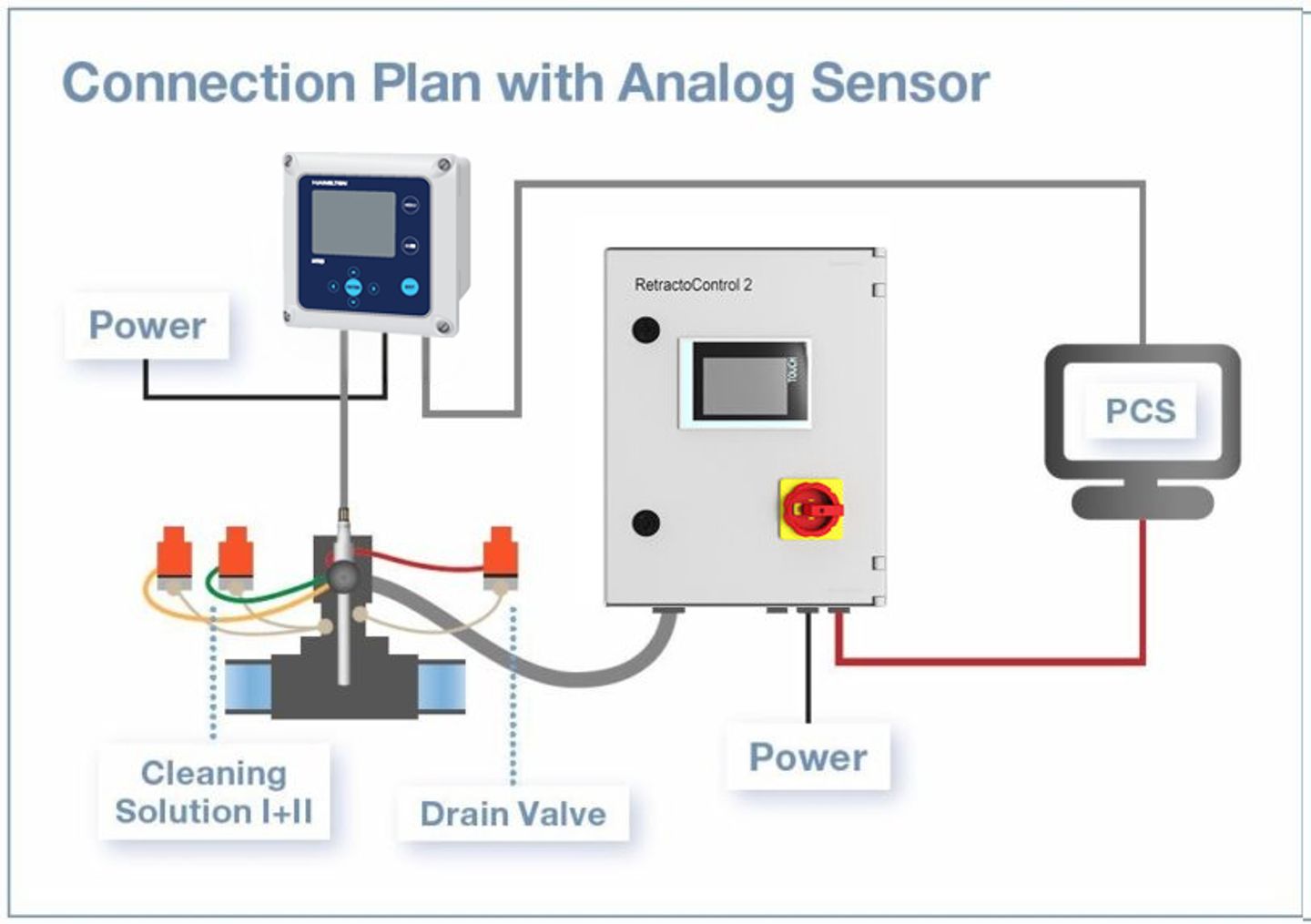

RetractoControl 2 with Traditional Sensors
Traditional sensor outputs are routed to a transmitter or analyzer. The transmitter output would go to the process control system where signals from the RetractoControl 2 can alert the system about cleaning cycles.
2

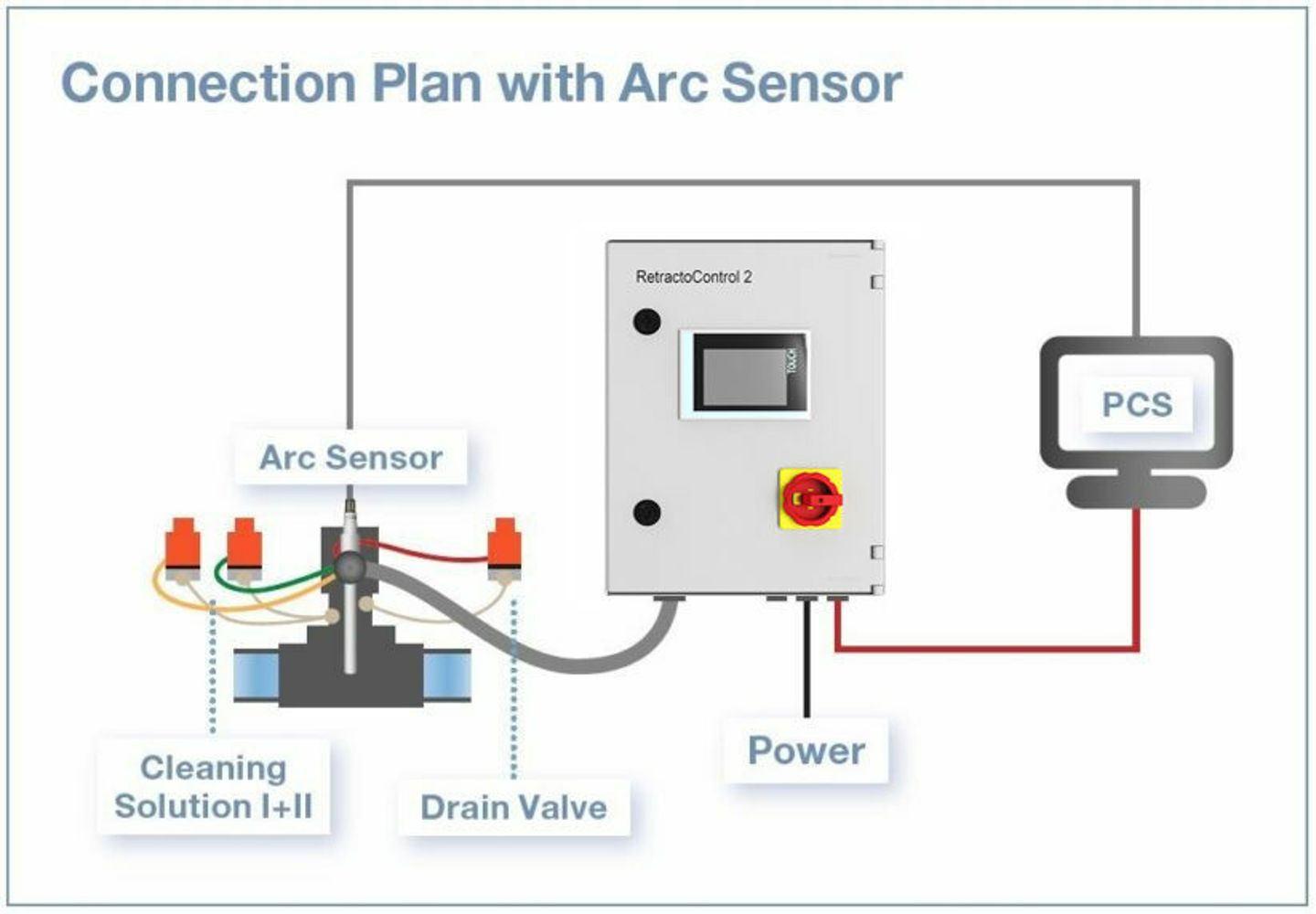

RetractoControl 2 with Arc Sensors
Arc sensor outputs can be directly connected to the control system. Signals from the RetractoControl 2 can be used to update the system at the start and the end of cleaning cycles.
Technical Data
Pneumatics
| Pneumatic hoses | Ø - external | Ø - internal |
|---|---|---|
| For compressed air supply | 8 mm | 6 mm |
| For control air | 6 mm | 4 mm |
| For position feedback | 4 mm | 2 mm |
Environmental conditions
| Condition | ||
|---|---|---|
| Temperature | Ambient temperature | 0...55°C / 32...131°F |
| Transport and storage temperature | -10...60°C / 14...141°F | |
| Environment | Relative humidity | 10...95%, non-condensing |
| Protection class | Housing with switches and LEDs | IP 54, with guard door closed |
| Housing with display | IP 54, with guard door closed |
Electrical connection values
| Value | ||
|---|---|---|
| Voltage supply | 24 V DC (+/-10%) | 30 VA |
| Input for external contacts | 24 V DC | Self-supply for floating contact |
| Maximum current consumption | 1.6 A | |
| Output for external relay, cleaning pump I, II and III | 24 V DC | Max. 250 mA |
| Output for status and alarm contacts | 24 V DC | Max. 100 mA |
Cleaning valves (optional)
| Compressed air |
|---|
| According to ISO8573-1:2010 [5:4:4] |
| Filtered, 40 µm, water and oil-free |
| 6 bar |
| No continuous air consumption |

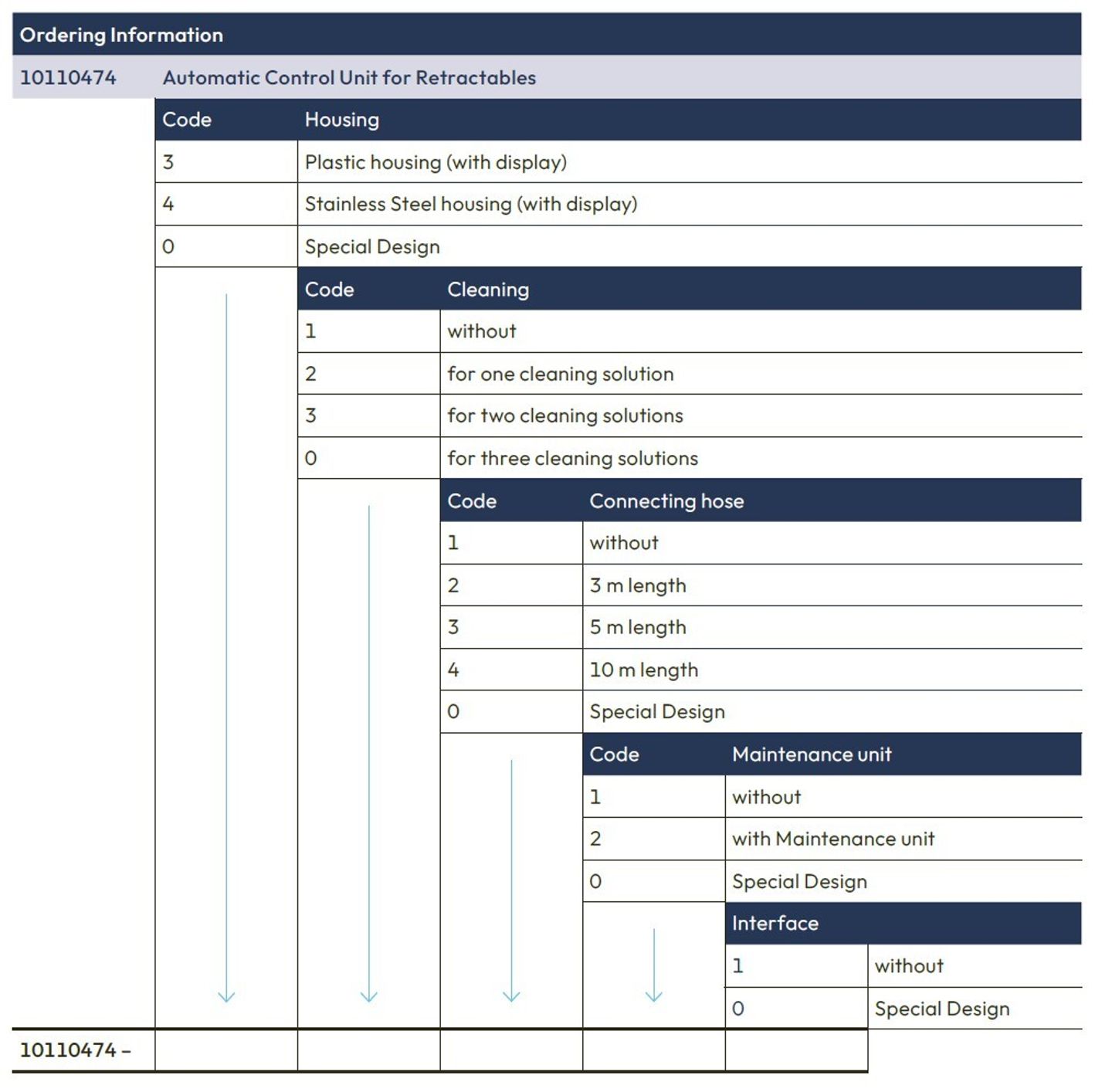

RetractoControl 2 Ordering Information
Webinars
Process Analytics Webinars
Explore our upcoming live and on-demand virtual events
RetractoControl 2 Specifications
Retractocontrol 2 Specifications
Print- Height
- 40 cm (1 ft, 3.75 in)
- Width
- 30 cm (11.81 in)
- Depth
- 25 cm (9.84 in)
Support your entire workflow with Hamilton's integrated products.
Retractex B
A manual / pneumatic retractable housing for sanitary applications in biotechnology, food and beverage, and pharmaceutical applications.
Retractex C
For applications that require flange or NPT process connections. Options for plastic and stainless as well as manual and pneumatic retraction.
Retractex BC
The Retractex BC offers stainless and plastic wetted options for downstream pharma and chemical applications with G 1¼" (Ingold) mounting.
