Hat Type Needles

A stainless steel removable needle with a polymer “hat type” termination that connects to a 1/4 -28 flat bottom valve port using a needle bushing.  Supplied in multiple gauges and needle point styles.

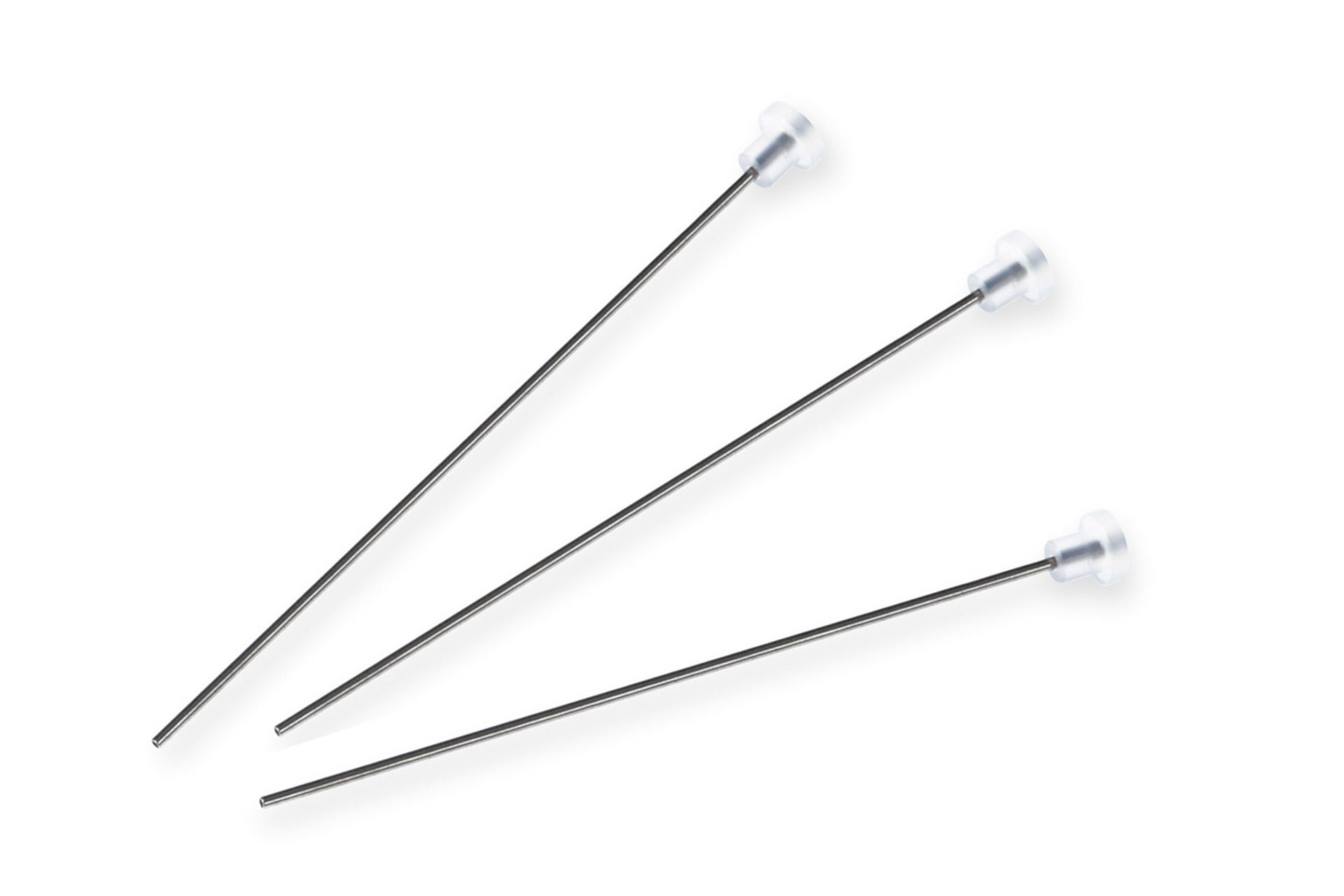

Needles Hat Needle

Precision fluid handling in tubing assemblies

Hamilton’s Hat Type Needles are specifically designed for compatibility with Hamilton’s ¼-28 flat bottom valve ports (1/4 inch nominal outer diameter, 28 threads per inch), including those used in automated liquid handling systems. These precision-engineered needles for valve ports ensure accurate, reliable, and leak-free fluid transfer, making them ideal for laboratory and industrial applications. Hat needles are supplied in three-packs.

Note on Length: Needle length is specified from the needle point to the start of the installation hardware. The distance from the needle point to the back end of the hub is length + 14.22 mm. This additional length is added so that when a needle is fixed into a port, with Hamilton fitting part number 35056, the overall exposed length of the needle is the length specified by the order. For more information, please reference the Hamilton Needle Point Style Guide.

Needle length diagram

View all Valve Port Hat Type Needles

Compare
Part # Gauge Point Style Needle Length Sales Quantity Hub Sales Quantity

JavaScript is required to view and filter products in this category.

Additional Needle Resources

Try the Visual Needle Builder

Take the hassle out of syringe needle selection with Hamilton's visual tool to guide you through the selection process.
Hamilton Needle Builder

Needle Point Style Guide

Hamilton offers a variety of different laboratory needle point designs. Needle termination selection is very important to the proper function of an application. Lab needles need to perform in many different environments. Terminations are available in non-coring, beveled, drilled side port and more.
Syringe needle

Needle Gauge Chart

In addition to being inert stainless steel, lab needles require proper sizing in order to function properly. The diameter of a needle is defined by its gauge. Hamilton company offers a wide spectrum of gauges. This index displays the internal and outer dimensions and the dead volume.
needle syringe gauge

Needle Length Guide

Needle length is a critical consideration for every application. Each needle hub design requires a slightly different length definition. It doesn't matter if the application is utilizing lab needles for life science injection or environmental analysis of ground water, the injection needs to hit the right target. This guide illustrates how to make the different measurements.
Needle Length Metal Hub
