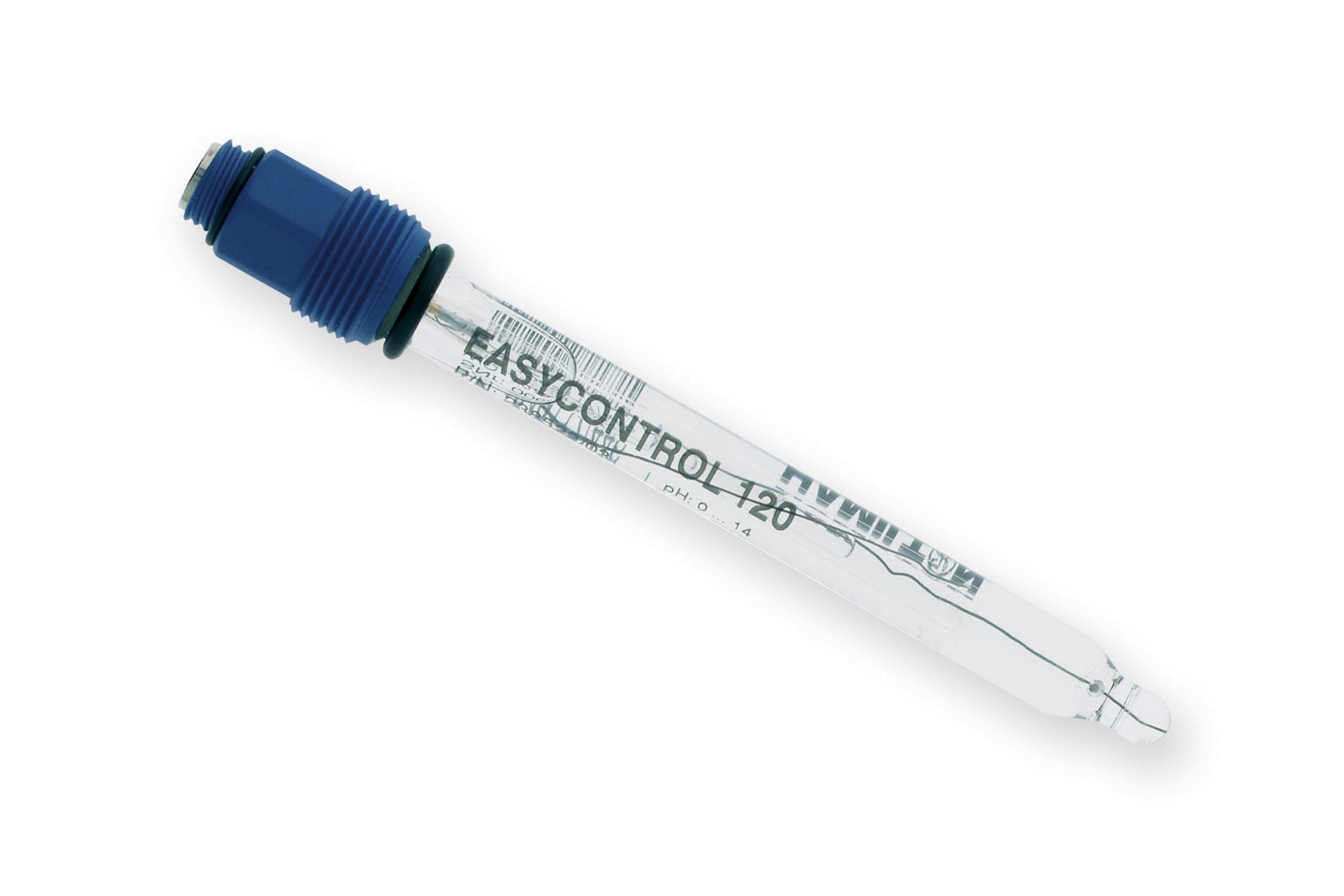

EasyControl

Part # 238522

EasyControl sensors are entry-level pH sensors ideal for chemical or wastewater applications, especially in low-temperature and low-conductivity environments.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

EasyControl Details

Viscous liquid gel-filled sensors provide a suitable upgrade for the entry level pH electrodes used in many industries. The added viscosity of the electrolyte helps slowing down the ingress of process contaminants from poisoning the reference element. Hamilton’s EasyControl sensors provide reliable, entry-level pH measurement in chemical and wastewater applications, even under conditions of low temperature and low conductivity.

Common applications Water, Energy, & Environment, Water and Wastewater, Power Generation, Chemical Processes

 Designed for use in low temperature applications.

Ideal for applications with low conductivity.

 Entry-level pH sensor.

Reliable pH Measurement

  • The EasyControl pH sensor provides reliable pH measurements as an entry-level option.
  • It is particularly well-suited for chemical or wastewater applications.
  • The sensor's design ensures dependable performance in these demanding environments.

Low Maintenance

Engineered for minimal upkeep, reducing operational costs and downtime in demanding industrial settings.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

EasyControl Specifications

Print
Process Connection PG13,5
Wetted Parts GΙass
Ceramic
EPDM (Ethylene propylene elastomer)
pH Glass Hamilton Type HF Glass
Electrical Connector S8
a-length 120 mm
Measuring Range pH 0 to 14
Electrolyte Gel electrolyte
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Ceramic
Number of Diaphragms 1
Reference System Ag/AgCl
Liquid Earth No
Temperature Sensor No
O-ring Material FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate No
ATEX Approval No
IECEx Approval No
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Operating Temperature Range 0 to 60 °C
Sample min Conductivity 5 µS/cm
Pressure Range bar g 0 to 2 bar

EasyControl Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

pH Calibration Procedure

Article

The pH Sensor Calibration Procedure

This article provides guidelines for calibrating a pH sensor or an industrial transmitter. The article provides best practices for handling sensors and liquid buffer solutions.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the expected lifetime of my pH sensor?

Expected pH sensor lifetime is dependent on the application. Exposure to strong chemicals, elevated temperature, fluctuating pressure, and solid build-up can all impact the sensor life. As the sensor ages, a sluggish response may become more apparent, and will require more frequent calibrations to compensate for this change. The overall health of the Arc pH sensors can be seen using the quality indicator in ArcAir software.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is viscous electrolyte?

Viscous electrolyte helps slow the ingress of contaminants that could poison the sensor. These sensors offer a good compromise between long life and good value. They are well suited for applications found in water treatment, swimming pools, fish farming, algae cultivation and many other industries.
