Single-Use Viable Cell Density (VCD) Measurement
The Hamilton’s Incyte SU sensor elements are pre-installed as integral part of the single-use container with a long shelf life. They offer accurate, and stable measurements and come ready-to-use and pre-calibrated. They connect to the Arc Module Incyte SU for a reliable measurement in single-use applications. Our SU VCD use sensors combine the reliability and measurement stability of our long-term proven conventional sensors with the ease of use as an integral part of the bioreactor. Collect real-time viable cell density measurements for deeper process insights and data driven process optimization.
Designed to meet your single-use requirements.
The Hamilton Incyte SU family of Viable Cell Density (VCD) sensors elements represent a leading solution for single-use applications within the Pharmaceutical and Biotechnology Industries. These sensors represent a significant advancement in single-use measurement, addressing common issues associated with traditional reusable VCD sensors inserted into bags or benchtop bioreactors. Combining the proven reliability and measurement stability of Hamilton's conventional sensors with the convenience of seamless integration into single-use bioreactors, Incyte SU sensor elements offer high accuracy even after gamma irradiation and boast a sufficient shelf life.
The Incyte SU family is ideal for a single-use bioreactor bag. The difference between the Incyte-P SU and the Incyte-PO SU is their compatibility with bioreactor bag films available on the market. The Incyte SU in combination with the Arc Module Incyte SU, provides an industry-standard digital Modbus RTU signal. Analog signal (4 to 20 mA) is also available in combination with an Arc Wi 2G adapter BT.
The Incyte SU sensor is designed to measure viable cells in mammalian cell culture, yeast, and high-density bacterial fermentation. The measurement principle of Incyte sensors is based on permittivity. Viable cells behave like capacitors, and their polarization and depolarization in an alternating electrical field are measured. This signal can be correlated to the viable cell density and is insensitive to cell debris and microcarriers.
Cost sensitive solution for single-use applications
Find the right Incyte Sensor for your Single-Use bag type
Anatomy of Incyte SU Viable Cell Density (VCD)
| Criteria | Description |
|---|---|
| Measurement principle | Permittivity and Conductivity |
| Measurement range | 0–700 pF/cm, equivalent to 5 x 105 to 8 x 109 cells/mL (mammalian) |
| Installation | Weld-in flush sensing element |
| Arc Module Options | Straight for stirred tank bags |
| Wetted Parts | HDPE / Ceramic / Glass / Platinum |

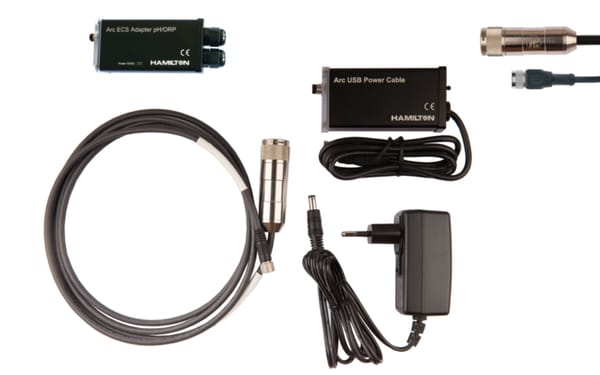

Accessories for the Incyte SU Sensor Elements
SU Viable Cell Density (VCD) Measurement Resources
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Services
Hamilton's Technical Support team is here to provide product trouble-shooting, repair, application support, virtual start-up support, and more.
Installation, set-up, and calibration support directly on-site. Our field service team ensures your sensors and cables are installed and functioning correctly.
Support for the qualification of Hamilton equipment including complete documentation. Readying your process for GMP manufacturing activities.
Preventative maintenance and regular service contracts. Schedule on-site service dates to ensure your sensors are properly maintained and your process is optimized.
Diagnosing and resolution of process system problems on-site. Finding the root cause and presenting a solution to fit your needs.
User trainings and on-site trainings for technicians. Tailored training ranging from basic operation to advanced calibration and maintenance.
Backed by world-class service and support.
For over 75 years, the Hamilton name has been recognized globally for its unwavering commitment to quality. That pledge extends to creating long-term customer partnerships. We're proud to offer in-depth training courses, on-site field support, custom product builds, and so much more.
