Arc Wi 1G Adapter BT

Part # 243460

Enhance your ECS/Modbus sensors with the Arc Wi 1G Adapter BT, providing wireless Bluetooth connectivity for streamlined calibration, configuration, and diagnostics. Monitor sensor status visually to minimize downtime and maximize efficiency.

We are moving forward with a refreshed design that replaces this version. Learn more about the Arc Wi Pivot.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

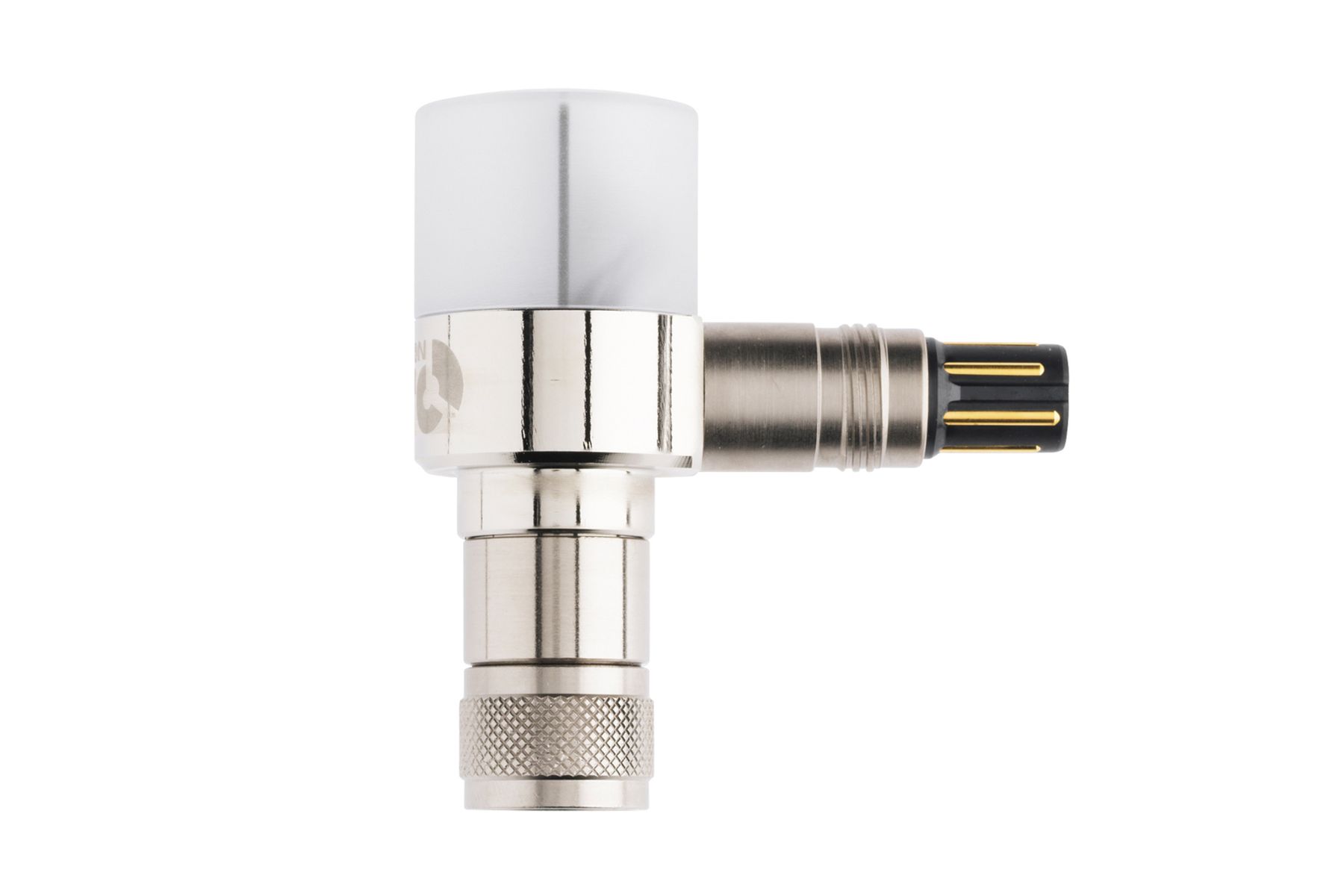

Arc Wi 1G Adapter BT Details

The Arc Wi Wireless Adapters add Bluetooth wireless communication to existing Arc or ECS sensors. The transparent cover offers a visual indication of sensor status through color changes, alerting users to warnings or critical errors. Choose the Arc Wi 1G BT Adapter for ECS sensors or direct Modbus communication to bioreactors or controllers. These adapters facilitate easy, wireless configuration, calibration, and troubleshooting of Arc sensors.

The Arc Wi Adapter facilitates effortless wireless configuration, calibration, and troubleshooting of your Hamilton Arc sensors.

The adapter's transparent cover changes color to provide an immediate visual indication of your sensor's operational status, highlighting warnings or critical errors.

Wireless Bluetooth Communication

Enables wireless communication to any Bluetooth-enabled device, such as a mobile phone, tablet, or computer. This allows for convenient configuration, calibration, and troubleshooting of Arc sensors without interrupting the hardwired signal.

Visual Status Indication

The transparent cover provides a visual indication of sensor status by changing color in the event of warnings or critical errors occurring with the sensor, allowing for quick identification of potential issues.

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Arc Wi 1G Adapter BT Specifications

Print
Electrical Connector VP8 / VP8
Analog Interface 1 4 to 20 mA, programmable
Analog Interface 2 4 to 20 mA for Temp., programmable
Analog Interface 1 and 2 Galvanically not isolated; pulse width modulation 3.5 kHz
Frequency Range 2.45 GHz (IEEE 802.15.1)
Transmitting Power Max. 4 dBm
Digital Interface Bluetooth 4.0
RS485 Modbus (max. 32 addresses)
Max. Range in Process Environment ~ 20 m
Operating Voltage 7 to 30 VDC
Serial Number Yes
Operating Temperature Range 5 to 70 °C
Protection Rating IP67

Arc Wi 1G Adapter BT Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton Arc Air manual

Article

ArcAir 3.11 Downloads

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Connecting Arc Products to Programmable Logic Controllers (PLCs)

Wiring schematics and tips for connecting Arc sensors directly to programmable logic controllers.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

ArcAir Minimum Sensor Firmware Requirements

This article lists the minimum firmware levels for all Arc sensors to properly work with ArcAir Software.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How do I communicate with an Arc sensor?

Arc sensors have a built-in micro-transmitter within the sensor. ArcAir software is a powerful tool to access data, configure and calibrate the sensor. This can be done with Bluetooth wireless communication or with a wired connection directly to a PC.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Which wireless adapter do I need for my sensor?

Hamilton makes two Bluetooth wireless adapters - Wi 1G and Wi 2G. The Wi 1G is designed for VisiFerm sensors using the ECS (nA) signal. The Wi 2G is better choice with Arc sensors.
