ChemoTrode

The robust Hamilton ChemoTrode pH sensor is ideal for demanding downstream pharmaceutical and chemical applications. Its refillable liquid electrolyte ensures fast, precise measurements, while the Everef-F cartridge prevents clogging for extended life. Easy to maintain with a refill/pressurization port, it offers reliable pH monitoring in challenging environments.

Receive More Information

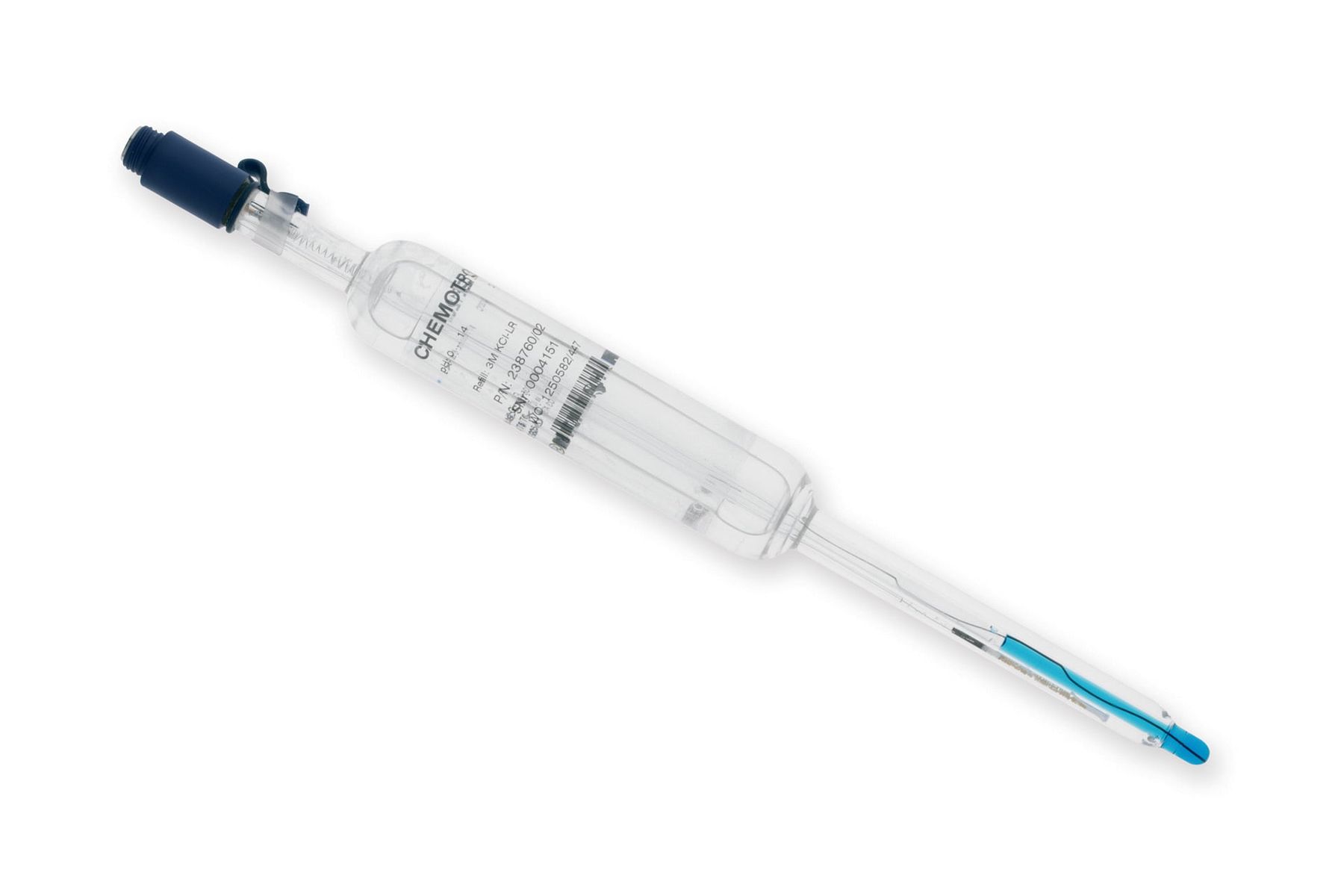

  • pH Sensor Chemotrode

ChemoTrode Details

ChemoTrode is Hamilton's most robust pH sensor, specifically designed for demanding applications in the pharmaceutical and chemical industries. Building on Hamilton's proven pH sensor technology, ChemoTrode provides reliable and precise pH measurement in challenging process environments where robustness, measurement stability, and long sensor lifetime are critical.

The ChemoTrode utilizes a refillable liquid electrolyte in combination with Hamilton's Everef-F reference cartridge. This design prevents contamination of the reference electrolyte by silver ions and protein precipitation, helping to maintain measurement stability and extend sensor service life under demanding process conditions.

The liquid electrolyte can be easily refilled and pressurized up to 6 bar through an integrated service port, simplifying maintenance while ensuring reliable sensor performance throughout its lifetime. The refillable electrolyte system additionally provides fast response times and high measurement precision across a wide range of process applications.

Designed for long-term operation in demanding pharmaceutical and chemical processes, ChemoTrode combines exceptional robustness with user-friendly maintenance, making it a reliable solution for critical pH monitoring applications.

Common applications Water, Energy, & Environment, Chemical Processes, Petrochemicals, Oil & Gas Processing

Fast, precise, and long-lasting pH measurement in challenging pharmaceutical and chemical processes.

Robust Design

Specifically engineered to withstand demanding applications within the pharmaceutical and chemical industries, ensuring reliable performance in challenging environments.

Fast Response & High Precision

Utilizes a refillable liquid electrolyte to guarantee rapid response times and highly accurate pH measurements.

Scientific Citations

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in troubleshooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

ChemoTrode Specifications

Print
Wetted Parts GΙass
Ceramic
pH Glass Hamilton Type PHI Glass
Measuring Range pH 0 to 14
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm HP-Ceramic
Number of Diaphragms 3
Reference System Hamilton Everef-F, Silver ion barrier included
Liquid Earth No
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 30 mm
Autoclavable No
Steam Sterilizable Yes
CIP Yes
Operating Temperature Range 0 to 130 °C
Sample min Conductivity 50 µS/cm
Pressure Range bar g 0 to 6 bar
Shaft Diameter Below 12 mm

Compatibility with Hamilton Devices.

Explore the limitless possibilities of Hamilton products.

  • Sensor Cables

    Hamilton VP cables

    Hamilton's VP (VarioPin) electrical connectors, with VP6 and VP8 options, are specifically designed for process sensors. These robust connectors feature an IP68 rating, withstand repeated autoclave cycles, and have a design that prevents moisture collection. Choose from open-end or M12 cables tailored for various sensor types and environments.

    Vp cables
    Browse All VP Sensor Cables

  • Sensor Cables

    S7 / S8 Sensor Cables
    Hamilton offers a variety of S7 and S8 sensor cables designed for connecting traditional pH, ORP, and dissolved oxygen sensors to transmitters and controllers. These cables are easy to use and provide a standard, moisture-protected connection for transmitting analog sensor outputs and temperature compensation signals.
    Blue connector on a black cable, disconnected from a threaded black fitting
    Browse All S7 / S8 Sensor Cables

ChemoTrode Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

pH Calibration Procedure

Article

The pH Sensor Calibration Procedure

This article provides guidelines for calibrating a pH sensor or an industrial transmitter. The article provides best practices for handling sensors and liquid buffer solutions.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the expected lifetime of my pH sensor?

Expected pH sensor lifetime is dependent on the application. Exposure to strong chemicals, elevated temperature, fluctuating pressure, and solid build-up can all impact the sensor life. As the sensor ages, a sluggish response may become more apparent, and will require more frequent calibrations to compensate for this change. The overall health of the Arc pH sensors can be seen using the quality indicator in ArcAir software.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How are the housings for refillable pressurized pH / ORP sensors such as the ChemoTrode actually pressurized?

The ChemoTrode requires a pressurized housing such as the MasterFit or RetractoMaster for proper installation. These housings use a Dunlap valve (bicycle tube valve) which permits pressurizing the chamber with the sensor up to 6 Bar. A simple bicycle pump with a Presta or Dunlap pump head can be used for this purpose.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is a refillable sensor and why would I choose it?

Refillable sensors have a port that allows manual replenishment of the reference electrolyte. Processes like pure water leach out out the electrolyte so the Ionotrode is a good choice. Other products like the ChemoTrode allow the for externally pressurized electrolyte so the process liquid cannot easily contaminate the sensor.
