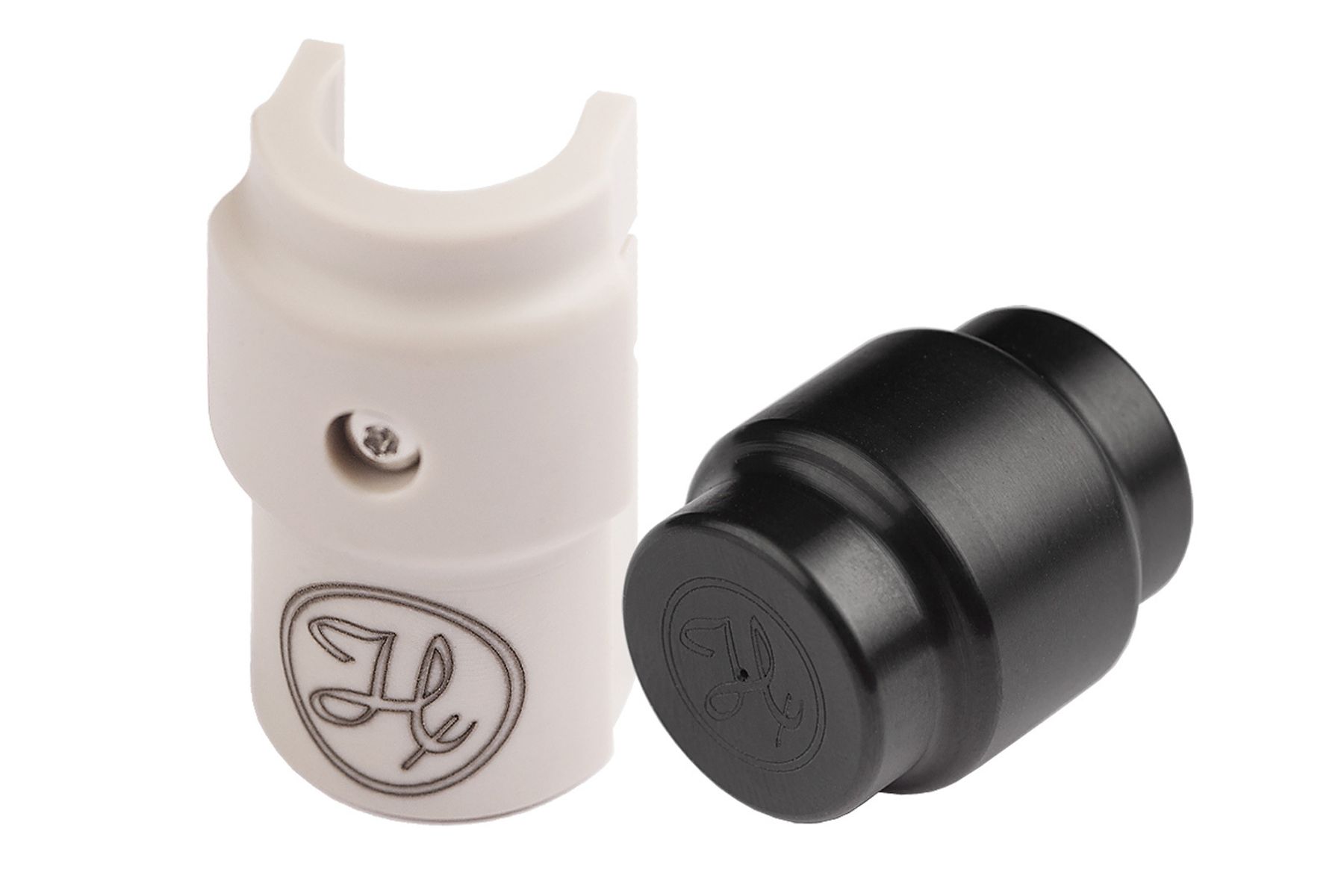

Dencytee Tool Kit

Dencytee Sensor Calibration

Part # 10146924

 Ensure the optimal performance of your Dencytee Arc sensors with our Dencytee Tool Kit.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Dencytee Tool Kit Details

Achieve consistent accuracy and dependable performance from your Dencytee Arc sensors with the Dencytee Tool Kit. Equipped with two certified, Dencytee Arc-specific verification tools, this kit enables you to produce detailed 2-point verification reports for all your sensors.

Ensures optimal sensor performance through certified sensor verification.

Enables easy air verification for Dencytee Arc sensors.

Certified

Each tool has a serial number and gets individual certification by Hamilton.

No shelf-life

The Dencytee Maintenance Tool Kit can be used for many sensors without degradation.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Dencytee Tool Kit Specifications

Print
Sensor Family Dencytee
Measuring Range Absorbance 880 : 36

Compatibility with Hamilton Devices

Explore the limitless possibilities of Hamilton products.

  • Dencytee RS485 120

    Total cell density (TCD) measurement by the Dencytee Arc sensor is based on the optical density or turbidity derived from a transmission and reflection signal at NIR wavelengths. The signal can be correlated with off-line measurements to achieve higher accuracy.

    Dencytee RS485 Cell Density Sensor
    Compare Cell Density Sensors

Dencytee Tool Kit Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Dencytee arc operating instructions

Technical Manual

Operating Instructions - Dencytee Arc Sensors

Download the operating instructions for the Dencyte Arc total cell density sensors.
Hamilton Viable and Total Cell Density Sensors product brochure mockup showing front cover and interior spread

Brochure

Brochure - Viable and Total Cell Density Sensors

Download our brochure to learn more about Hamilton's viable and total cell density sensors and the innovative measurement technology behind them.
Hamilton Process Analytics catalog cover showing sensors labeled ORP, CO₂, GLC, TCD, VCD, DO, Cond, and pH

Catalog

Catalog - Process Analytics

Download the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How can the user check the validity of the measurement for Dencytee Arc?

The Dencytee Arc Sensor has several internal check routines to ensure the highest accuracy and precision. The user can check the validity of the measurement by performing a verification with the "Dencytee Maintenance Tool Kit". During measurements, the current condition of the sensor is continuously monitored, and the result is reflected in the Quality Indicator (QI) as a percentage.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

At what value of the quality indicator does the Dencytee Arc need to be replaced?

There will be a red error (“Replace Sensor” or “Sensor defective”) in the ArcAir software when the Quality Indicator drops below 10% and the sensor needs to be replaced.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Is the measurement from Dencytee Arc less reliable if the quality index decreases?

Although the probe is very robust and designed for long process life, it is subject to a certain amount of aging. The quality indicator takes the operating hours and sensor diagnostic results into account and recommends replacement when needed. In addition, the probe has other built-in features that constantly check the sensor, even during a measurement.
