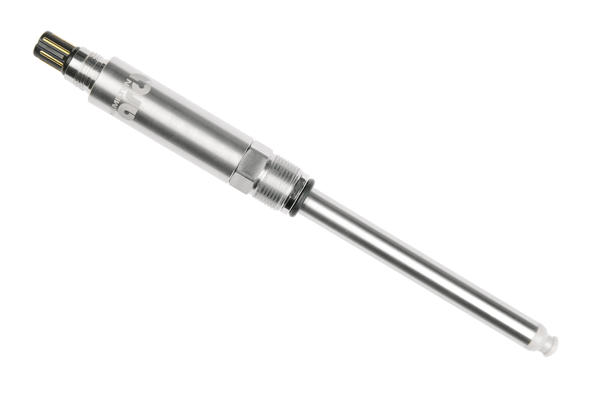

Incyte Arc Expert - 120

The Incyte Arc Expert sensor enables in-line, real-time viable cell density measurement, essential for achieving data-driven process optimization and control in bioprocessing.

Incyte Arc Expert - 220

The Incyte Arc Expert sensor enables in-line, real-time viable cell density measurement, essential for achieving data-driven process optimization and control in bioprocessing.

Incyte Arc Expert - 320

The Incyte Arc Expert sensor enables in-line, real-time viable cell density measurement, essential for achieving data-driven process optimization and control in bioprocessing.

Incyte Arc Expert - 420

The Incyte Arc Expert sensor enables in-line, real-time viable cell density measurement, essential for achieving data-driven process optimization and control in bioprocessing.

Dencytee Arc RS485 120

Hamilton's Dencytee Arc RS485 sensor is an in-line optical transmittance and reflectance sensor capable of accurately measuring the total cell density and turbidity of the whole bioprocess from inoculation to harvesting.

Dencytee Arc RS485 225

Hamilton's Dencytee Arc RS485 sensor is an in-line optical transmittance and reflectance sensor capable of accurately measuring the total cell density and turbidity of the whole bioprocess from inoculation to harvesting.

Dencytee Arc RS485 325

Hamilton's Dencytee Arc RS485 sensor is an in-line optical transmittance and reflectance sensor capable of accurately measuring the total cell density and turbidity of the whole bioprocess from inoculation to harvesting.

Dencytee Arc RS485 425

Hamilton's Dencytee Arc RS485 sensor is an in-line optical transmittance and reflectance sensor capable of accurately measuring the total cell density and turbidity of the whole bioprocess from inoculation to harvesting.

Electrical Connector VP8

Parameter Viable Cell Density

Parameter Total Cell Density

Measuring Range 0 to 700 pF/cm, equivalent to 5 x 10^5 to 8 x 10^9 cells/mL (mammalian)

Measuring Range e.g. 0-200g/l cell dry weight yeast
0-4 AU
0-30'000 NTU

Precision at 25 °C Permittivity (at 1 MHz): ± 1 pF or ± 1 %
Whichever value is greater over the entire measuring range

Precision at 25 °C —

Accuracy at 25 °C Conductivity (at 0 pF): ± 25 µS or ± 1 %
Whichever value is greater over the entire measuring range

Accuracy at 25 °C Resolution: 0.05 g/l (0-10 g/l); 0.5 % (> 10 g/l) cell dry weight yeast
Reproducibility: ± 1 %
Linearity: < ± 1% of respective measuring range (specific to application with off-line correlation)

Temperature Sensor Yes

Temperature Sensor NTC 22 kOhm

Configurable Values VCD, Conductivity, Temperature

Configurable Values TCD: PCV, AU, arb. Unit, NTU, g/l, CFU, e6 cells/ml, OD
Temperature: K, °C, °F

O-ring Material See compliance details in Material Specification document

Surface Quality of Steel Ra < 0.4 µm (N5)

Digital Interface RS485 Modbus (max. 32 addresses)

Baud Rate 19200, 38400, 57600,115200 Bd

Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd

Operating Voltage 24 V (± 10 %)

Operating Voltage 10 to 27 VDC

Sensor Output Arc: Modbus

Wetted Parts Stainless Steel 1.4435
PEEK (Polyetheretherketone)
Platinum
EPDM (Ethylene propylene elastomer)
See compliance details in Material Specification document

Wetted Parts Stainless Steel 1.4435
Sapphire glass
EPDM (Ethylene propylene elastomer)
See compliance details in Material Specification document

Process Connection PG13,5

Serial Number Yes

Certificate Yes

Certificate Yes, in water and at 10'000 NTU Standard

Diameter 12 mm

Autoclavable Yes (30-minute sterilization duration, for Revision 00: 130°C, for Revision ≥ 01: 140°C)

Autoclavable Yes (140°C, 30-minute sterilization duration)

Steam Sterilizable Yes (140°C, 30-minute sterilization duration)

CIP Yes (3% NaOH, 90°C, 30-minute cleaning duration)

Operating Temperature Range 0 to 60 °C

Operating Temperature Range 0 to 140 °C; the sensor provides no TCD reading above 80 °C.

Conductivity Range 1 to 80 mS/cm for firmware below CDCUM003
0.5 to 80 mS/cm for firmware CDCUM003 and above (with Hamilton calibration)

Conductivity Range —

Pressure Range bar g 0 to 12 bar

Resolution at 25 °C 0.1 pF/cm

Resolution at 25 °C —

Max. Accuracy Conductivity (at 0 pF): ± 100 µS (for whole operating temperature range)

Max. Accuracy —

Max. Precision Permittivity (over all frequencies): ± 1 pF (for whole operating temperature range)

Max. Precision —

a-length 120 mm

a-length 220 mm

a-length 320 mm

a-length 420 mm

a-length 120 mm

a-length 225 mm

a-length 325 mm

a-length 425 mm

Sensor Family —

Sensor Family Dencytee Arc

Wavelength —

Wavelength 860 nm

Accuracy —

Optical Path Length —

Optical Path Length 5 mm

ATEX Approval —

ATEX Approval No

IECEx Approval —

IECEx Approval No

Storage Conditions —

Storage Conditions -20 °C to 45 °C

Protection Rating —

Protection Rating IP68

Cell Biology Cell Culture Pharma & Biopharma Bioprocess Upstream Biotechnology Algae Water, Energy, & Environment Water and Wastewater Chemical Processes Basic Chemicals Agri-Food and Beverage Winemaking Novel Food Bioprocessing Precision Fermentation Cultivated Meat Cultivated Fish & Seafood

Cell Biology Cell Culture Pharma & Biopharma Bioprocess Downstream Bioprocess Upstream Biotechnology Algae Water, Energy, & Environment Water and Wastewater Chemical Processes Basic Chemicals Petrochemicals, Oil & Gas Processing Agri-Food and Beverage Brewing Winemaking Novel Food Bioprocessing Precision Fermentation Cultivated Fish & Seafood Analytical Chemistry
