FlowChamber
Pressure Tolerant
Material Options
Chemically Compatible
Flexible
Multiple Connections
Any System Size
Versatile
90° or 180°
Flow Direction
Supports Steady Process Monitoring
Hamilton’s FlowChamber flow-through fittings seamlessly integrate with retractable sensor housings. This properly positions sensors for the best possible data in your process monitoring applications.
Supports Optimal Sensor Housing Positioning
The FlowChamber is a flow-through fitting engineered to seamlessly integrate with our retractable sensor housings to optimize sensor positioning in fluid flow. Proper positioning helps to ensure accurate and consistent readings over time within process monitoring applications.
FlowChamber Options

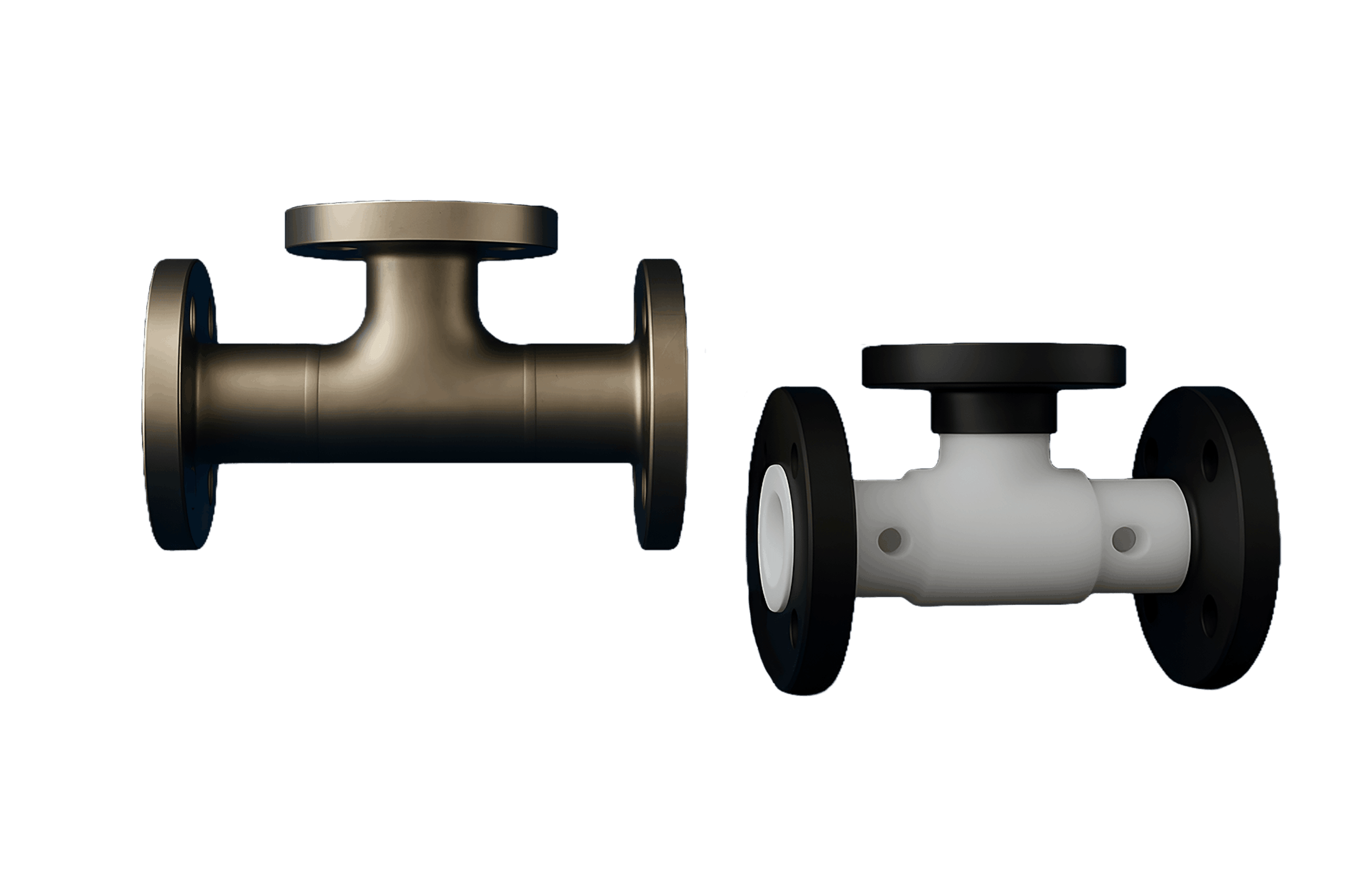

Two materials of construction are offered for the FlowChamber. PVDF plastic provides chemical corrosion resistance and is suitable for harsh chemical environments. Stainless steel (1.4571 / 316Ti) offers robust performance under pressure and may be ETFE-lined for enhanced corrosion resistance. Multiple connection options help to fine-tune FlowChamber specific to your process needs. Special designs and materials are available to satisfy unique requirements.
As part of a broad system with sensors, housings, software, and other components, trust Hamilton’s expertise and support to propel your process efficiency.
FlowChamber offers flexibility for pressures up to 16 bar and temperatures up to 140 ºC to perform even in challenging applications.
FlowControl can work with any system size or layout.
Explore FlowChamber
1
Materials of Construction
FlowControl is made from PVDF or stainless steel (option for ETFE lining)
2
Pressure Range
Steel offers 16 bar maximum pressure; plastic yields 6 bar maximum pressure.
3
Flow Direction
Fluid flow may be directed at 180 degrees or 90 degrees. Contact us with special requirements.

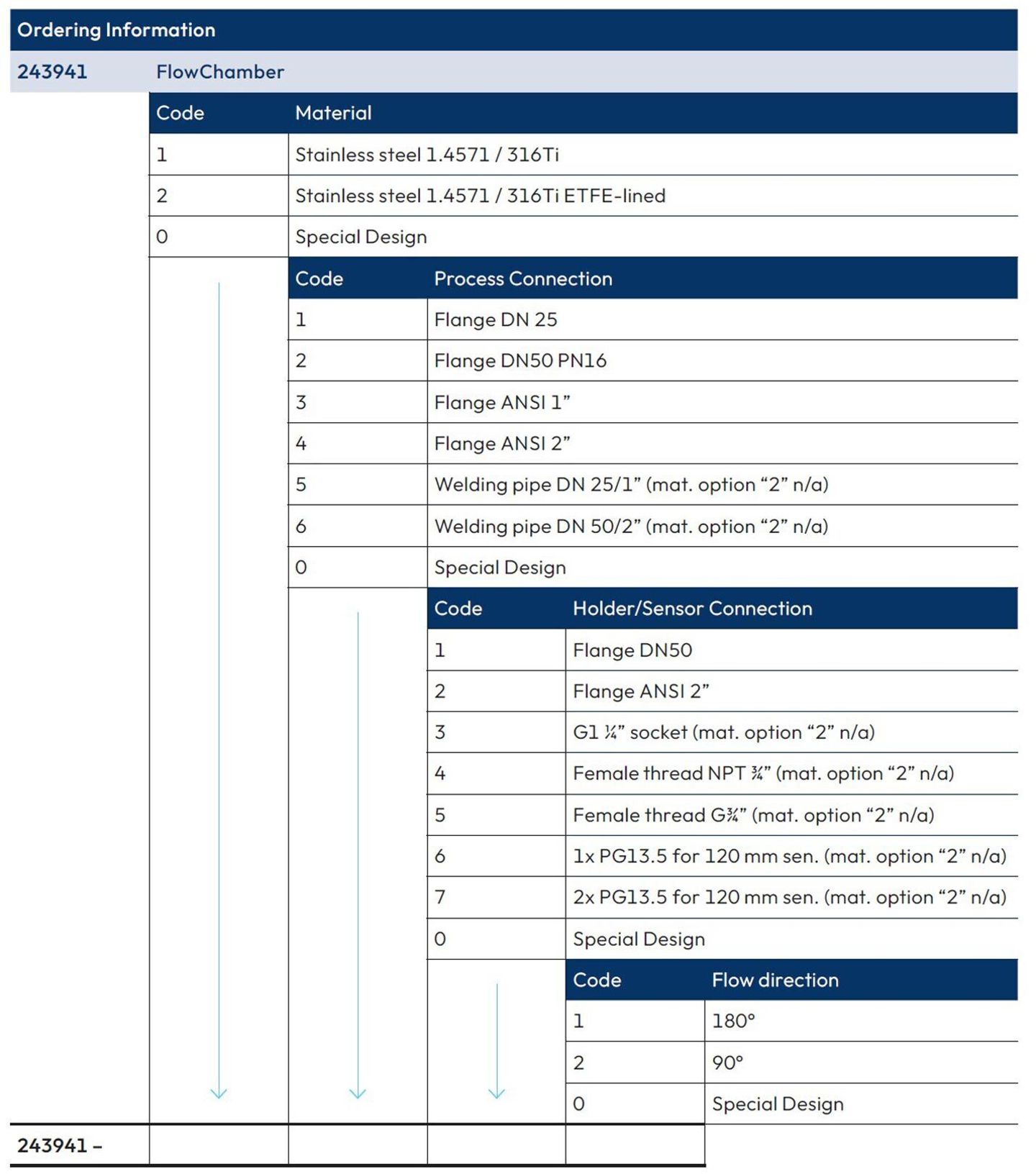

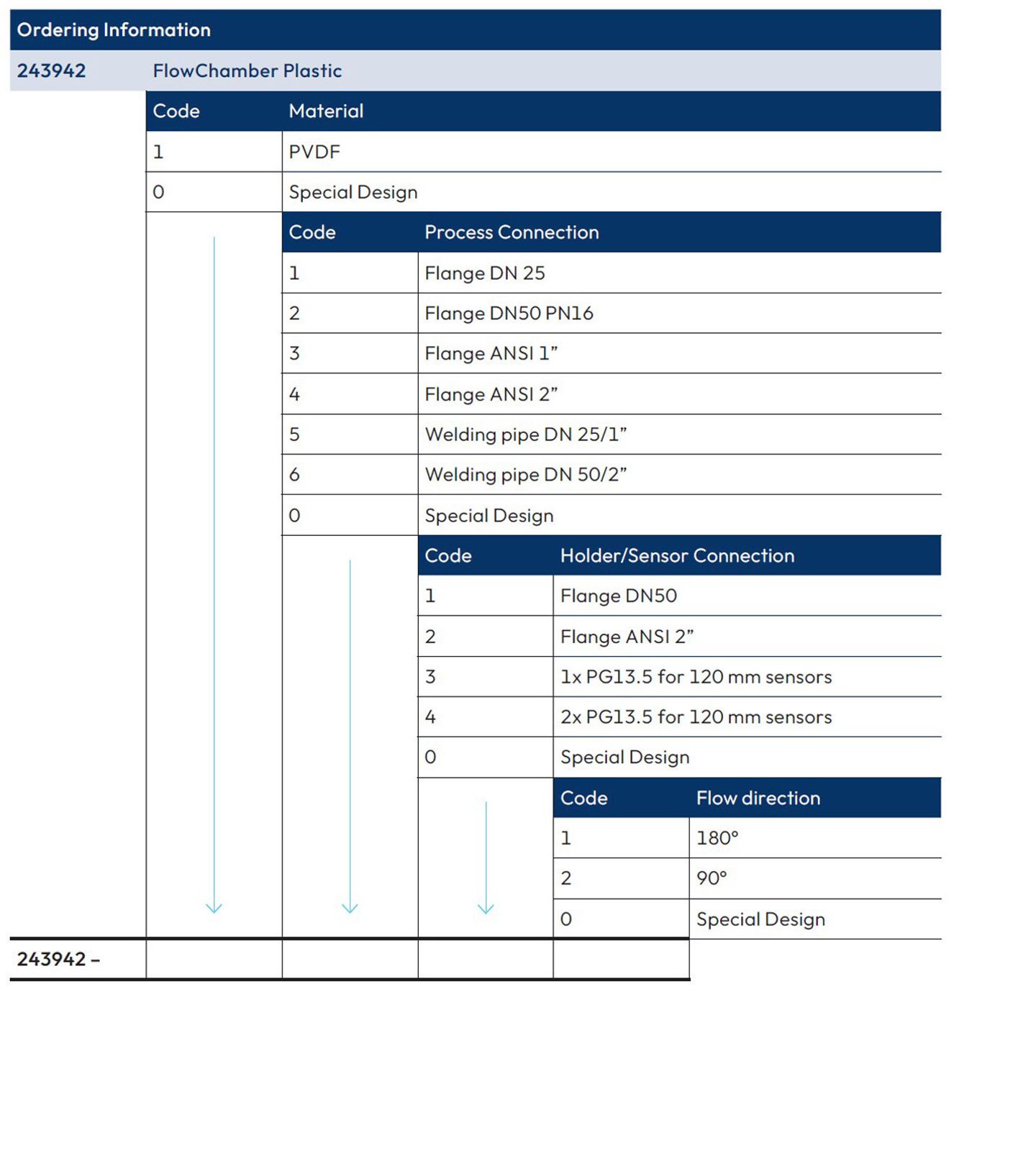

Ordering information
Webinars
Process Analytics Webinars Process Analytics Webinars
Explore our upcoming live and on-demand virtual events.
FlowChamber Specifications

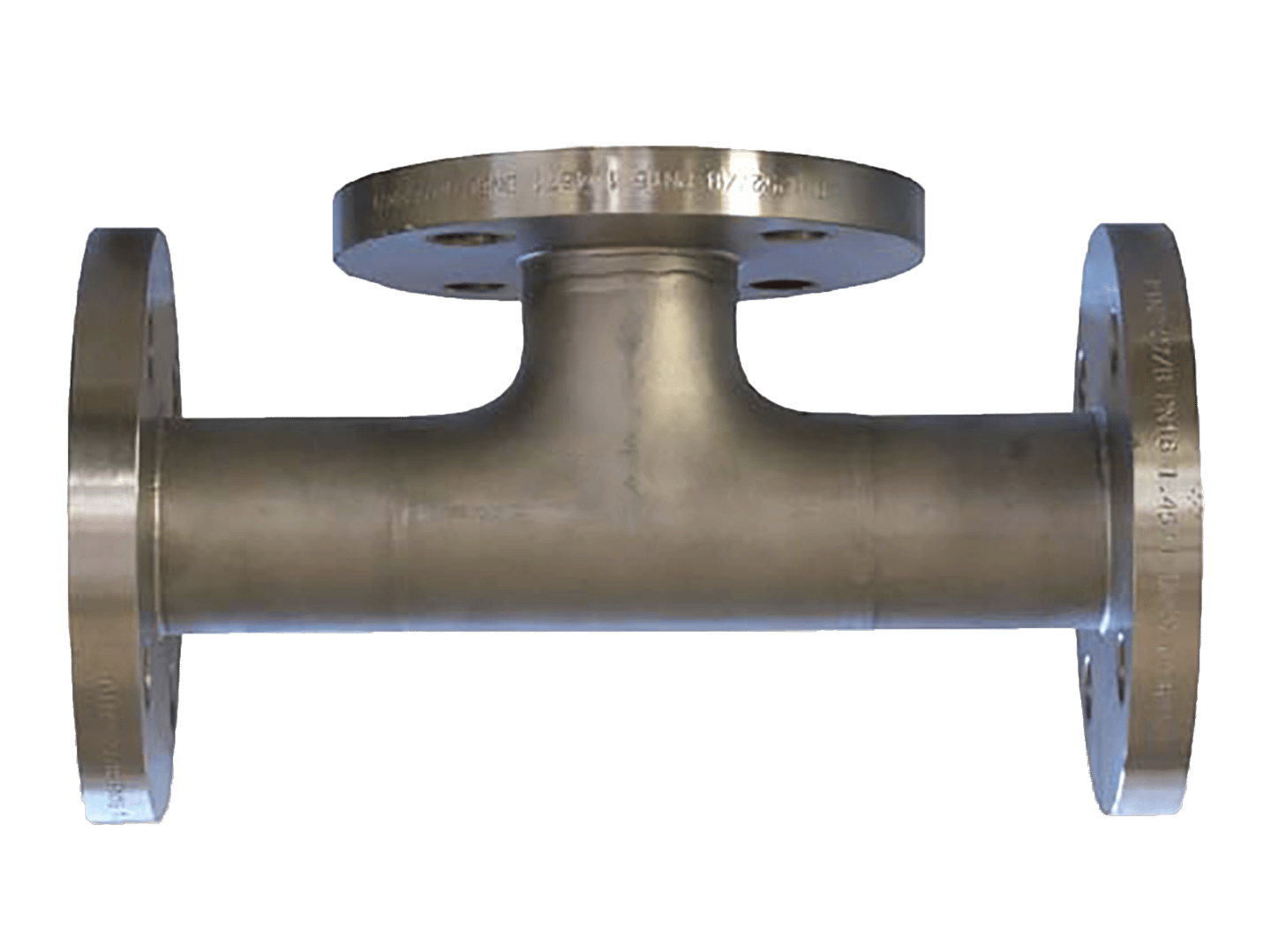

FlowChamber Steel Specifications
Print- Housing Material
- Steel: Stainless Steel 1.4571 / 316Ti optional ETFE-lined
Plastic: PVDF
- Pressure Range (bar g)
- Steel: max. 16 bar
Plastic: max. 6 bar
Plastic: 0 to 6 bar
- Process Connection
- Flange DN25 / DN50 / ANSI 1" / ANSI 2", welding connection
- Sensor Connection
- Steel: Flange DN50 / ANSI 2", Thread G1 1/4" / G3/4" / NPT3/4"
Plastic: Flange DN50 / ANSI 2"
- Operating Temperature Range
- Steel: max. 140 °C
Plastic: max. 120°C
- Flow Direction
- 90° or 180°
Support your entire workflow with Hamilton's integrated products.

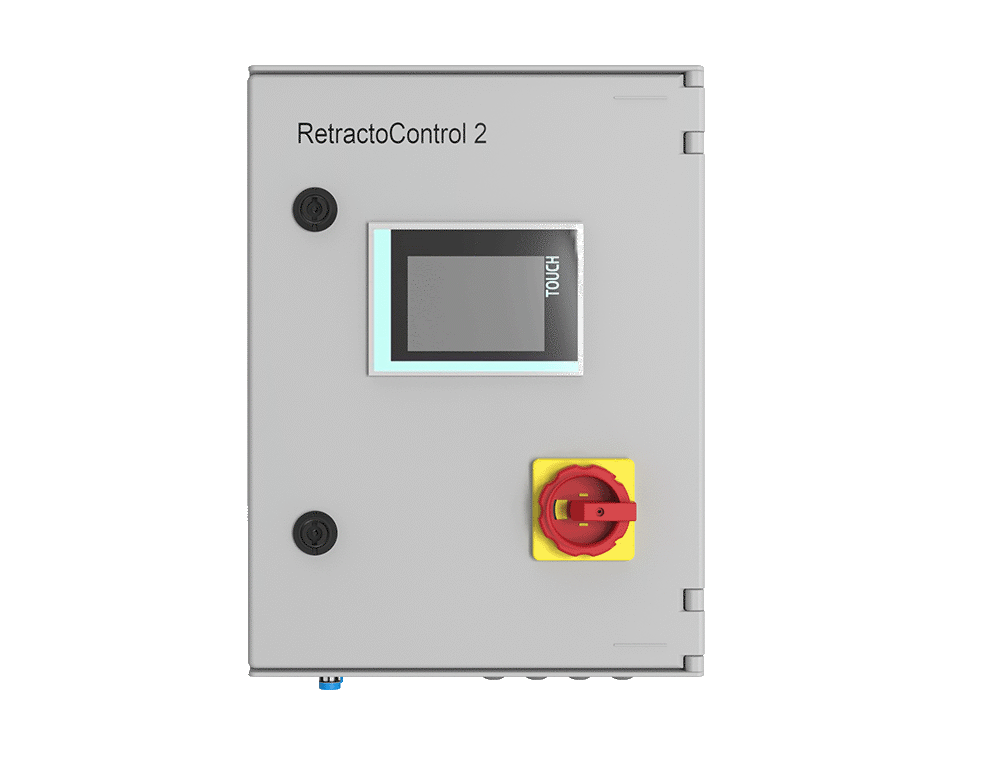

RetractoControl 2
By automating retraction and cleaning of sensors in our Retractex retractable sensor housings, the RetractoControl 2 control system saves valuable time in process workflows. Customizable settings support your routine cleaning requirements so that you can optimize sensor performance to support a long sensor life.

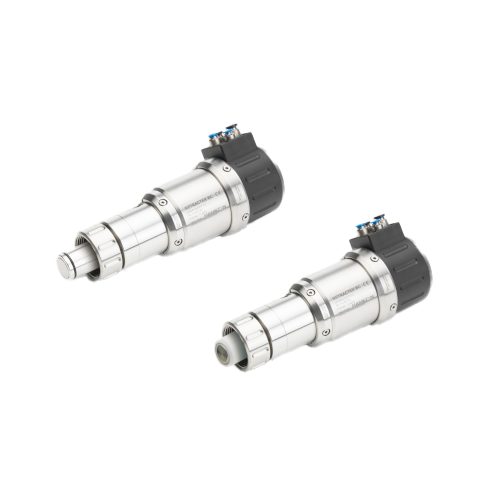

Retractex BC
The Retractex BC offers stainless and plastic wetted options for downstream pharma and chemical applications with G 1¼" (Ingold) mounting.

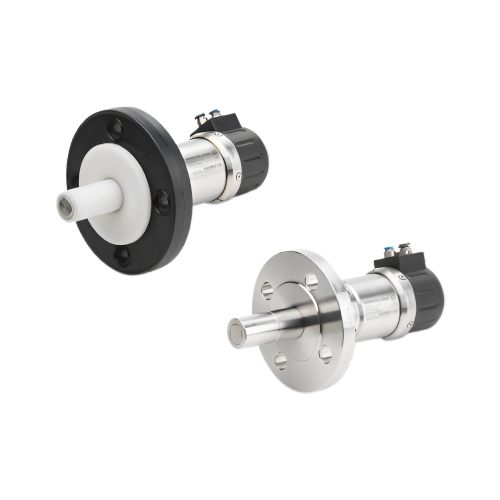

Retractex C
For applications that require flange or NPT process connections. Options for plastic and stainless as well as manual and pneumatic retraction.
