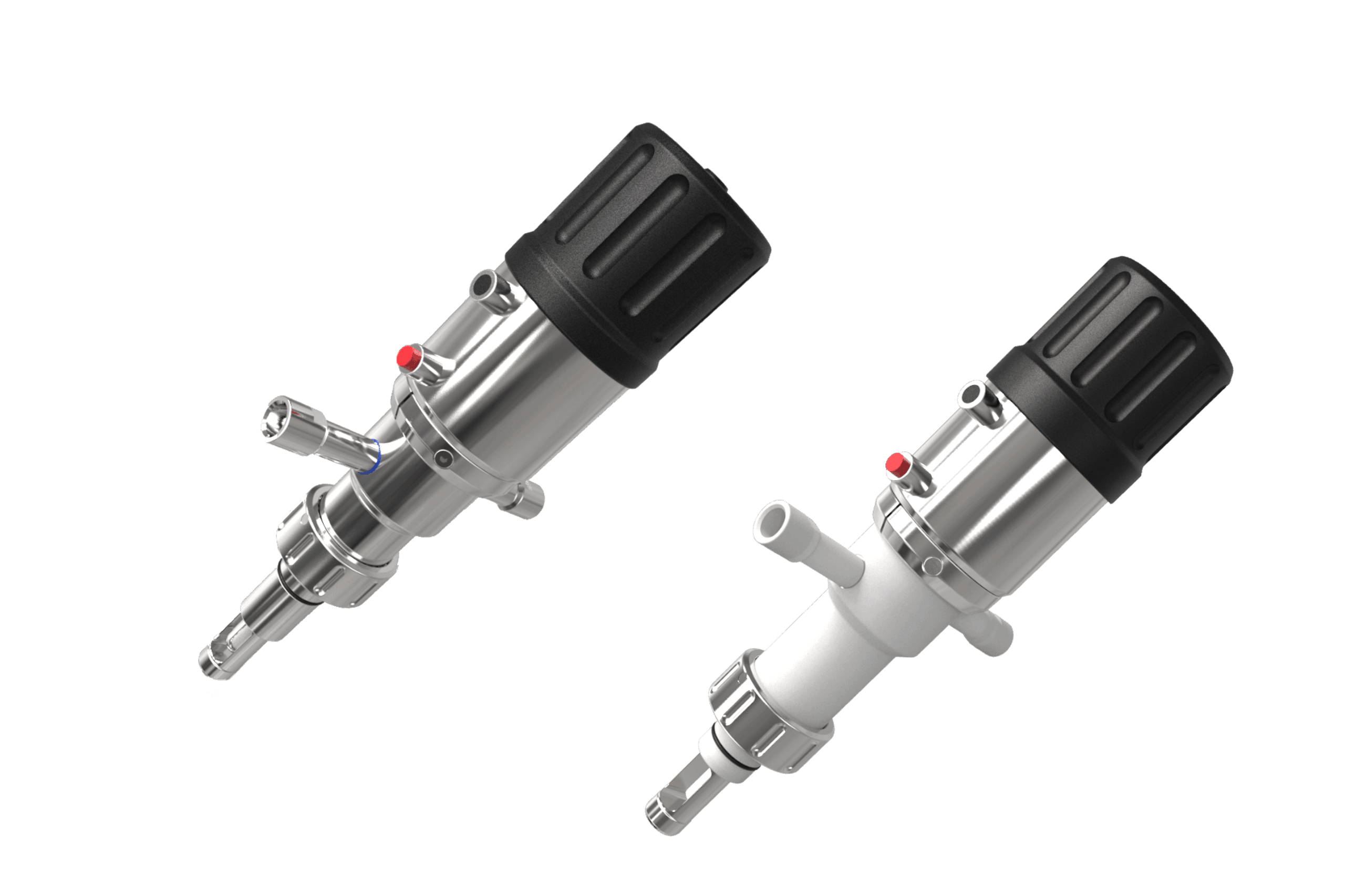

Retractex BC Retractable Sensor Housing
Save Time
Clean While Processing
Manual/Automated Cleaning
G 1 ¼ Process Connection
All Purpose
Materials Options
0 to 16 Bar
Wide Operating Parameters
-10 to 140 ºC
Stands Up to Everyday Demands
The Retractex BC is a robust retractable sensor housing engineered for reliable, general-purpose process monitoring. Designed with both manual and pneumatic retraction options, it ensures easy handling and minimal process interruption during sensor maintenance or calibration. Its efficient cleaning system supports hygienic operation, making it ideal for continuous, contamination-free processes.
Combining the proven sealing technology of the Retractex C with the flexible process connections of the Retractex B, the Retractex BC stands out in harsh environments, particularly in the biotech and food industries, while maintaining versatility across a wide range of other applications.
All-Around Excellence
Choose Retractex BC when you need a robust general-purpose sensor housing compatible with G 1 ¼ inch process connections. This compact sensor housing offers a 36 mm stroke to reduce seal wear and holds Hamilton’s sensors for process analytics with a length of 225 mm and a shaft diameter of 12 mm.
Versatile options include manual or pneumatic retraction, stainless steel (1.4404 or 2.4602) or PEEK, PVDF, PP materials, and multiple wetted sealing materials. Contact us with your special design requests.
Supports Seamless Processes
Retractex BC lets you maximize process uptime. Once retracted, the sensor and internal surfaces are easily cleaned while your process is running. Additionally, safety measures like “no sensor – no insertion” and a window to visually check seals for leakage help to protect users and products from harm.
Retractex BC is specifically engineered to support daily general-purpose continuous processing applications in chemistry and pharmaceutical markets.
Designed to meet strict international regulations, Retractex BC sensor housings adhere to standards such as ATEX, IECEx, UKEx, and EAC Ex.

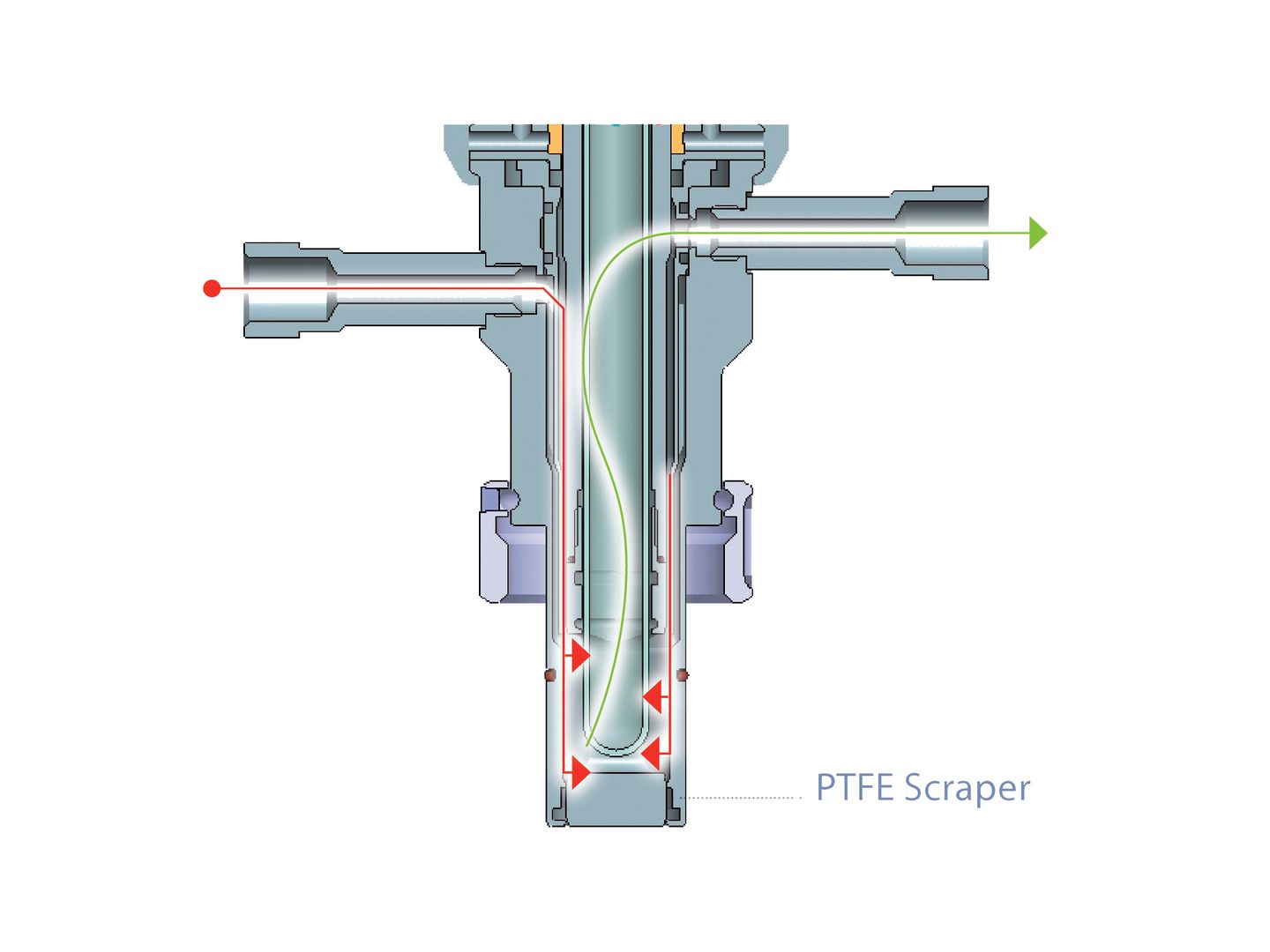

Cleaning the sensor and internal housing surfaces is simple after retraction, and your process can continue running.
Explore Retractex BC
1
PTFE Scraper
The PTFE scraper, featuring an O-ring inside the insertion tube, keeps build-up away from sensitive areas.
2
Sensor Integration
Accommodate sensors with a 12 mm shaft diameter and a PG13,5 thread.
3
External Cleaning Connections

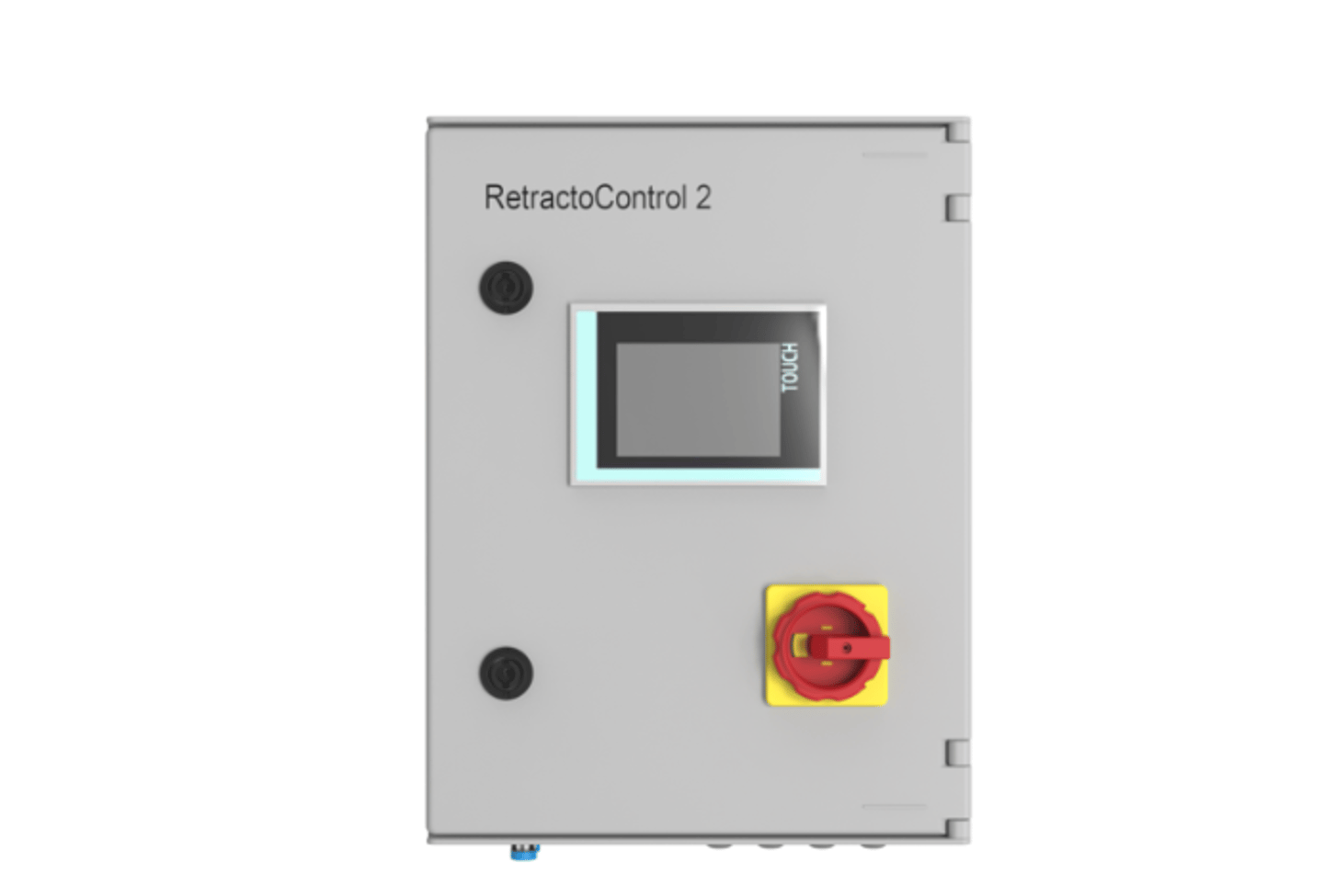

Easily manage automated cleaning via our RetractoControl 2 as well as manual
4
Choice of Housing Material
Stainless steel or PVDF, PEEK, and PP satisfy most application requirements.

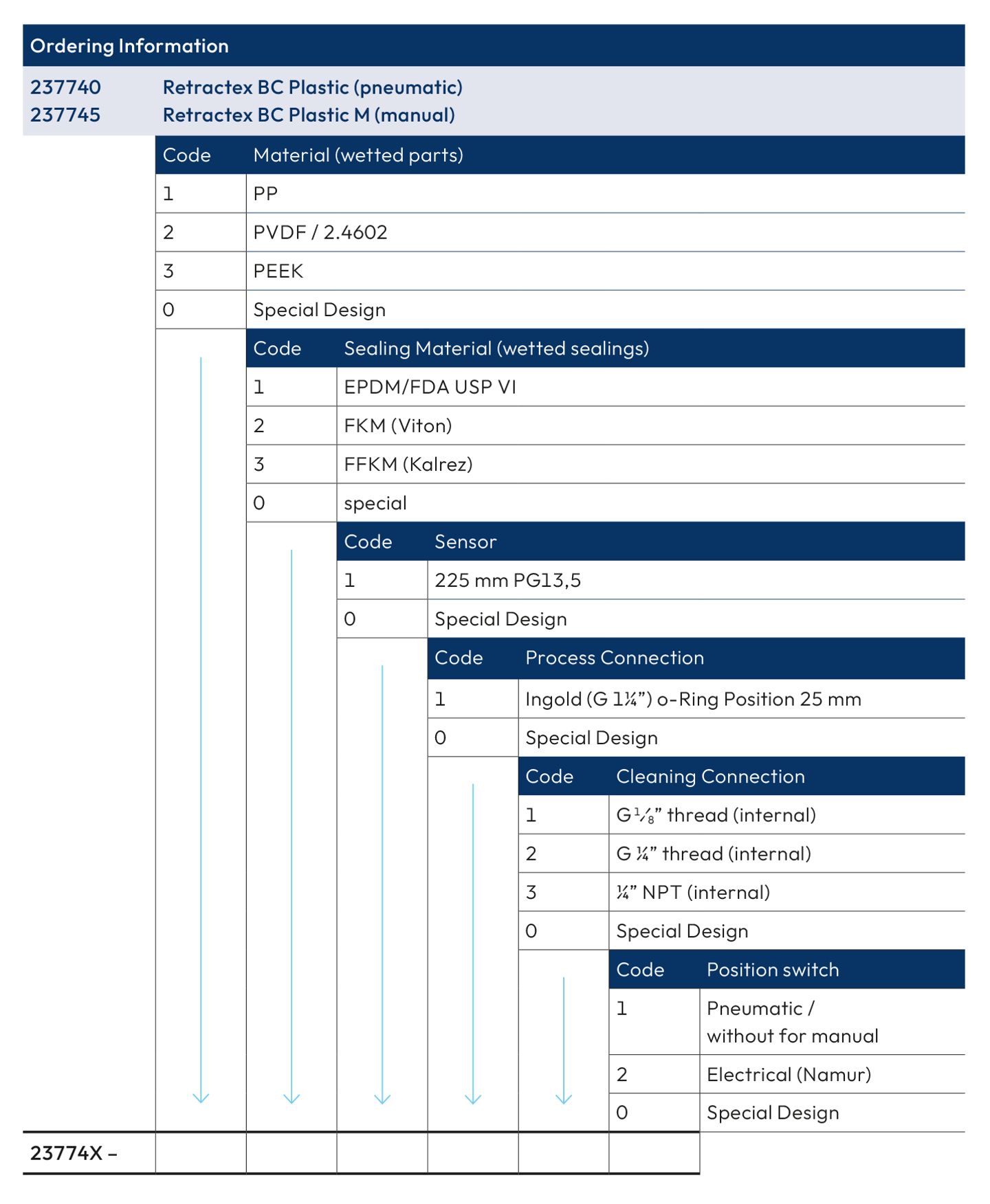

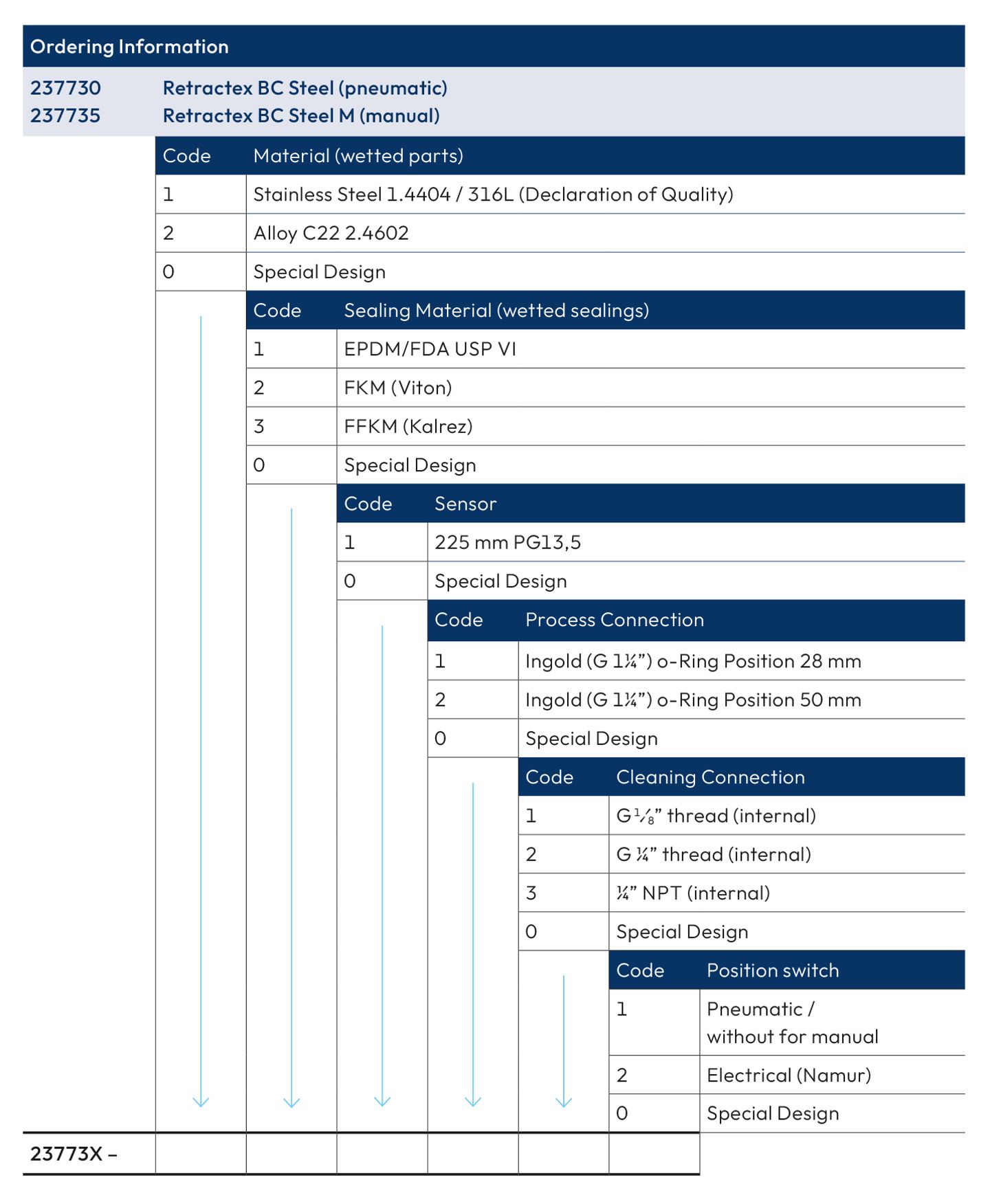

Retractex BC Ordering Information
Webinars
Process Analytics Webinars
Explore our upcoming live and on-demand virtual events.
Retractex BC Specifications
Retractex BC Specifications
Print- Wetted Parts
- Stainless Steel (1.4404 or 2.4602)
PVDF, PEEK, or PP;
EPDM, FKM or FFKM
- Pressure Range (bar g)
- 0 to 16 bar (< 120 °C), 10 bar (120 to 140 °C)
- For Sensors with
- 12 mm; PG13,5; 225 mm
- Surface Quality of Steel
- Ra < 0.8 μm (N6)
- ATEX approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- IECEx approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- UKEx approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- EAC Ex approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- ATEX approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- IECEx approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- UKEx approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- EAC Ex approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- Temperature Range
- Operating Temperature Range
- -10 – 140 °C
