Hamilton Fluoreye fluorescence detection module mounted on an automated liquid handling platform with pipette tips and microplate visible nearby

FLUOREYE®

1 ANSI/SLAS Deck Position
Retrofittable
No Liquid Contact
Rapid Reading Speed
<3 Minutes
96 Samples
Various Wavelengths
3 Mobile Devices
To Choose From

Space-saving, Versatile On-Deck Fluorescence Measurement

The FLUOREYE mobile fluorescence readers are operated by a 1000 µL pipetting channel, moving to and measuring samples in black 96-well flat-bottom plates.

Fully Integrated, Hands-Free Nucleic Acid Quantification and Normalization - and More!

FLUOREYE is a compact powerhouse, measuring fluorescence in 96-well flat-bottom plates without contacting samples. The FLUOREYE family comes with three different Mobile Devices, each one providing two systems to measure fluorescence kits with different wavelengths:

  • FLUOREYE ROJA: Excitation at 470/625 nm, Detection at 520/680 nm
  • FLUOREYE ERBA: Excitation at 325/520 nm, Detection at 420/570 nm
  • FLUOREYE ORO: Excitation at 470/560 nm, Detection at 520/625 nm

FLUOREYE offers sensitive detection of fluorescently-tagged or auto-fluorescent samples for increased specificity.


Conveniently Hands-Free, On-Deck Automated Fluorescence Detection

Add the FLUOREYE to a single deck position on any Microlab STAR, Microlab STAR V, or Microlab VANTAGE liquid handler, and control it through the VENUS software. The mobile device attaches to a 1000 µL CO-RE pipetting channel to move from the base station to a sample plate, where it measures fluorescence in up to 6000 samples per charge and transmits data back to the base station via Bluetooth. The base station contains a battery charger, identifies the correct mobile device, and interfaces with the automated liquid handler.

Common applications Genomics, Nucleic Acid Quantification & Normalization, NGS Library Prep, Cell Biology, Cell Culture

With the deck-mounted FLUOREYE, actions are automated and tracked to enhance quality and process stability while removing risks of variability and errors.

Focus on other tasks and eliminate repetitive manual tasks while fluorescence detection is automatically performed using the integrated FLUOREYE.

Extend and scale the end-to-end workflow, including fluorescence readings on any Microlab STAR, Microlab STAR V, and Microlab VANTAGE platform. Measure fluorophores for cell viability, cytotoxicity, ROS, LDH release, ELISA, DNA/RNA quantification, and more — automatically.

The three Mobile Device variants ROJA, ERBA, and ORO support a wide range of commercially available test kits using fluorophores.

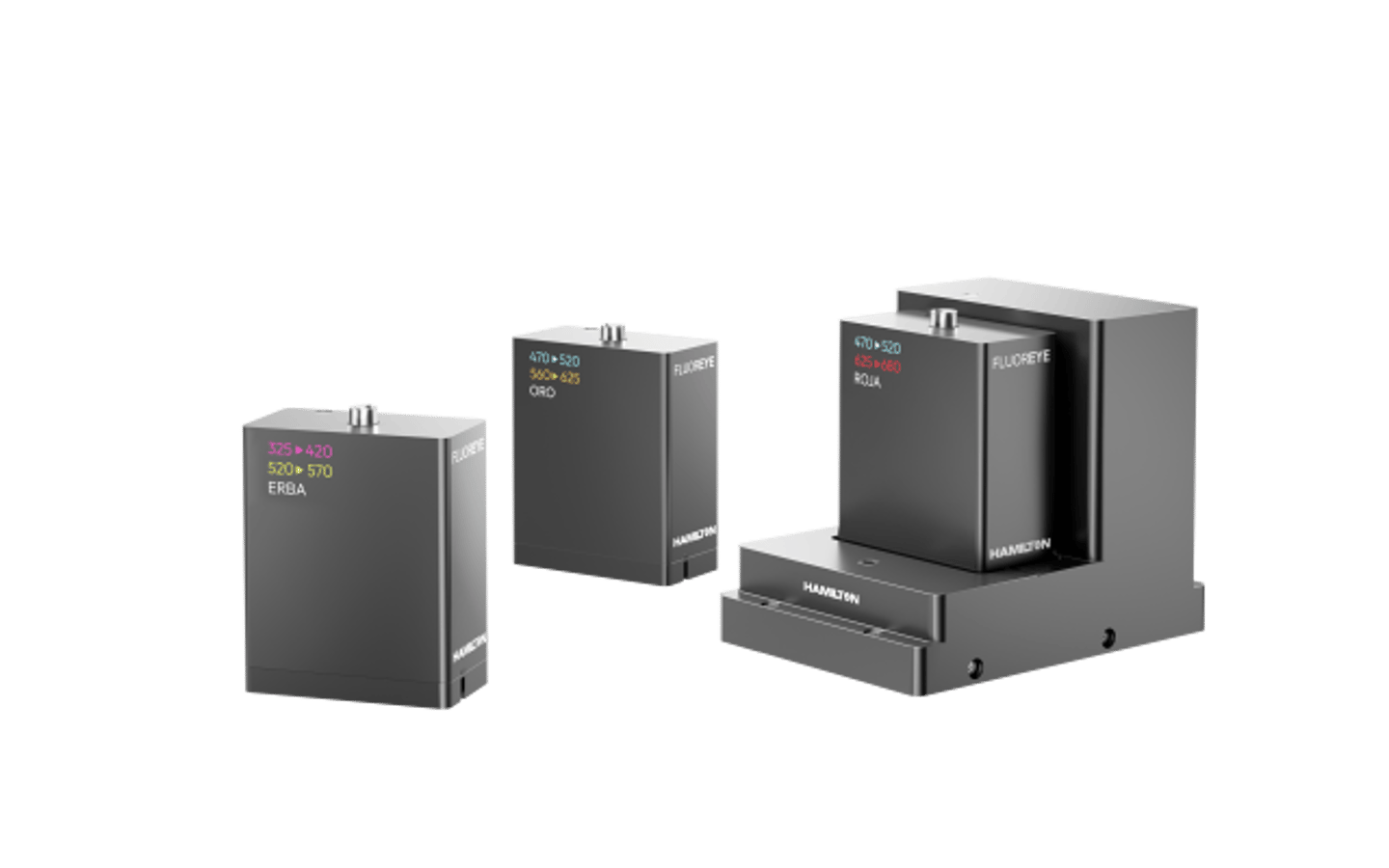

  • Three Hamilton FLUOREYE sensor modules with color-coded wavelength displays, one mounted on a docking station
  • Hamilton FLUOREYE fluorescence reader module with sliding base plate on white background
  • Gloved hands holding a black Hamilton FLUOREYE device in a laboratory setting.
  • Hamilton FluorEye fluorescence sensor module mounted on an automated liquid handler deck
  • Hamilton Fluoreye fluorescence reader beside a black 96-well microplate on a white lab bench
  • Hamilton FLUOREYE module on an automated liquid handling deck with microplates and sample tubes

Explore the FLUOREYE

1

FLUOREYE Mobile Devices

Move to samples by attaching to a 1000 µL CO-RE pipetting channel and contain the fluorescence reader, RFID tag, and battery.

2

FLUOREYE Base Station

Uses one ANSI/SLAS deck position, contains the battery charger, hosts a function check source, identifies mobile device RFID tags, and interfaces with the liquid handler.
3

Rechargeable Battery

Supports up to 6000 fluorescence measurements per full battery charge.
4

Fluorescence Optics

Two sets of excitation LEDs and sensors facilitate many assay chemistries, using variable excitation and detection wavelength combinations.
5

Dark Mode Measurements

Uses no excitation and offers ambient light compensation without using shading or dark housings.
6

Bluetooth Communication

Using Bluetooth technology, data originating from the mobile device is fully encrypted as it is transmitted to the base station.

  • FLUOREYE has allowed us to incorporate the quantification of full 96-well sample plates at high precision.

    Automation is a must at a centralized NGS laboratory. Since we started working in 2015, there has been an increasing number of libraries to process that required their quantification. Fluorometric assays are the gold standard that needed to be performed outside the library NGS liquid handler. FLUOREYE has allowed us to incorporate the quantification of full 96-well sample plates in the main pipeline of our library generation process, at high precision, and coupled to a large walkaway time for the technicians in charge.

    Dr. Eva Gonzalez Roca
    Hospital Clinic de Barcelona

Hamilton FLUOREYE Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Three Hamilton FLUOREYE fluorescence reader modules labeled ROJA, ERBA, and ORO on a lab bench

Flyer

Automated Fluorescence Reading with FLUOREYE ERBA + ORO

FLUOREYE® ERBA + ORO brings automated fluorescence reading on-deck for DNA/RNA quantification, ELISA, ROS, LDH, apoptosis, and more. Download the flyer to explore expanded assay automation.
Fluoreye Flyer TIMG

Flyer

FLUOREYE | On-Deck Fluorescence Detection | Flyer

FLUOREYE is the ideal fluorescence detection solution for labs upgrading or building new systems. Designed for easy integration, it enables quick, hassle-free setup with existing equipment.
Hamilton FLUOREYE application note cover titled "Fluorescence Reading on-the-fly" on a dark blue background

Application Note

Fluorescence Reading on-the-fly: The Hamliton Fluoreye simplifies your genomic workflow

FLUOREYE enables on-deck, contact-free fluorescence quantification for DNA/RNA workflows on Hamilton liquid handlers, streamlining NGS sample prep with high accuracy and minimal footprint.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two professionals in business attire against a dark blue background with green accent lighting.

Webinar

Elevating Automated Genomic Workflows with On-Deck Fluorescence Measurement – Radboud Experience

Discover how Radboud UMC optimized genomic workflows with Hamilton's Fluoreye module
