FlowCell COND 4UPtF Arc
4-Electrode Measuring Principle
Best in Class Accuracy
±3% or better
External Temperature Sensor
Extremely Fast Response Time
≤ 30 sec or faster
Direct Communication
Arc Intelligent Sensor Technology
No need for external transmitters

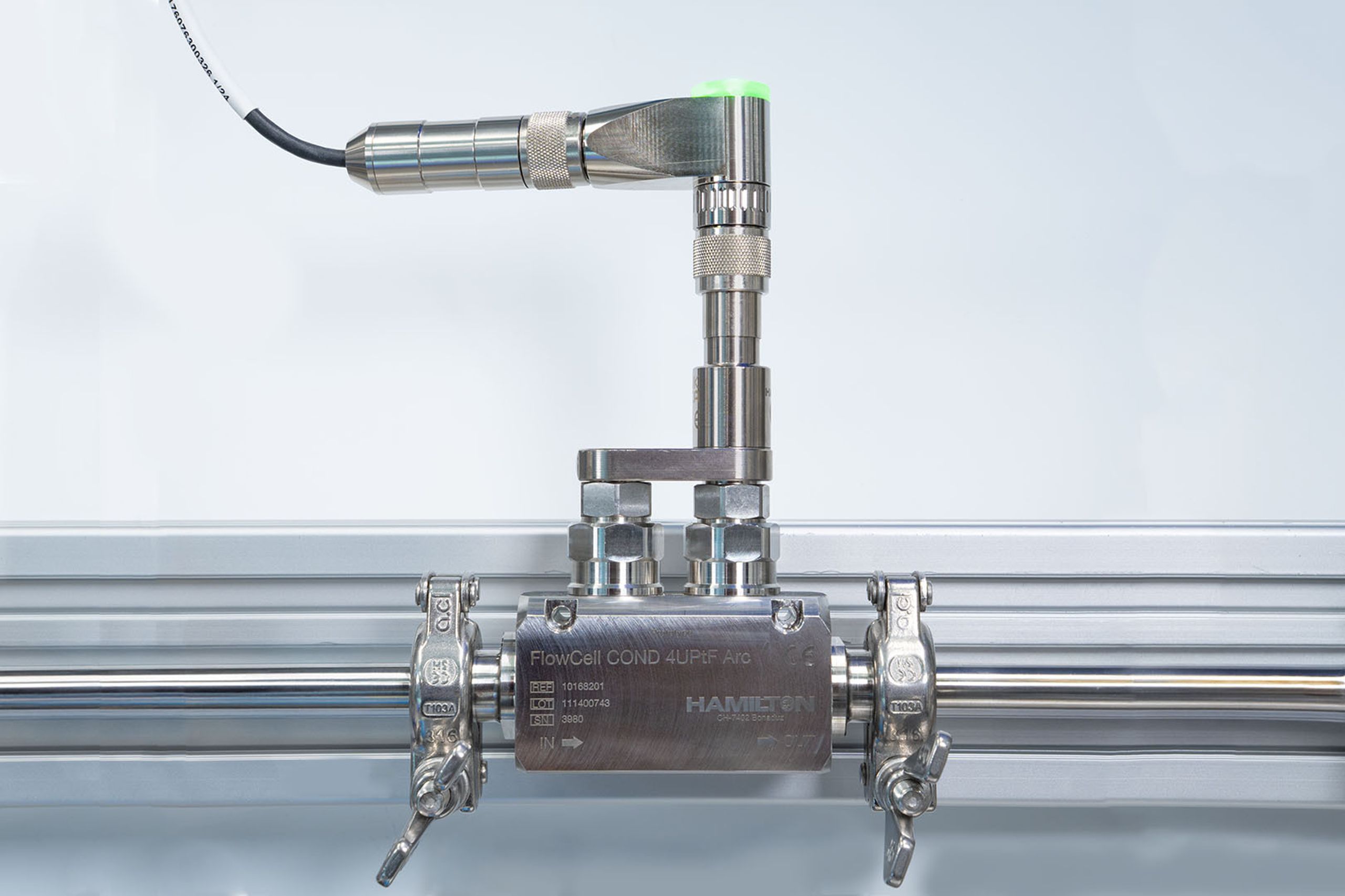

FlowCell COND 4UPtF Arc
The FlowCell COND 4UPtF Arc sensor was developed for conductivity measurement in downstream and other flow applications. Its four-electrode platinum design ensures exceptional measurement accuracy of ±3% or better and excellent linearity across the entire measurement range.
Thanks to an external temperature sensor, the FlowCell achieves a fast temperature response time of ≤30 seconds, which is of particular importance in flow applications where rapid process changes require immediate and reliable temperature compensation.
The FlowCell is available in various pipe diameters and with several process connection options, allowing flexible integration into a wide range of systems and installation requirements.
The main application of the FlowCell COND Arc flow-through sensor is the in-line measurement under demanding conditions in biotechnology and pharmaceutical applications, including chromatography, viral filtration, and other flow processes. Different product variations also allow users to measure conductivity and pH (optional) in a wide range of flow rates in their systems, providing high-performance inline monitoring for critical applications.
The FlowCell features integrated Arc technology with digital intelligence, enabling functions such as calibration data storage and predictive diagnostics directly within the sensor. It can also be connected directly to control systems without the need for an additional transmitter.
Common applications Pharma & Biopharma, Bioprocess Downstream
Benefits of the FlowCell COND 4UPtF Arc
High accuracy and linearity across the entire measuring range
Temperature response ≤ 30 sec or faster ensuring real time process adjustments
A wide range of conductivity measurements between 1 to 300,000 μS/cm
1

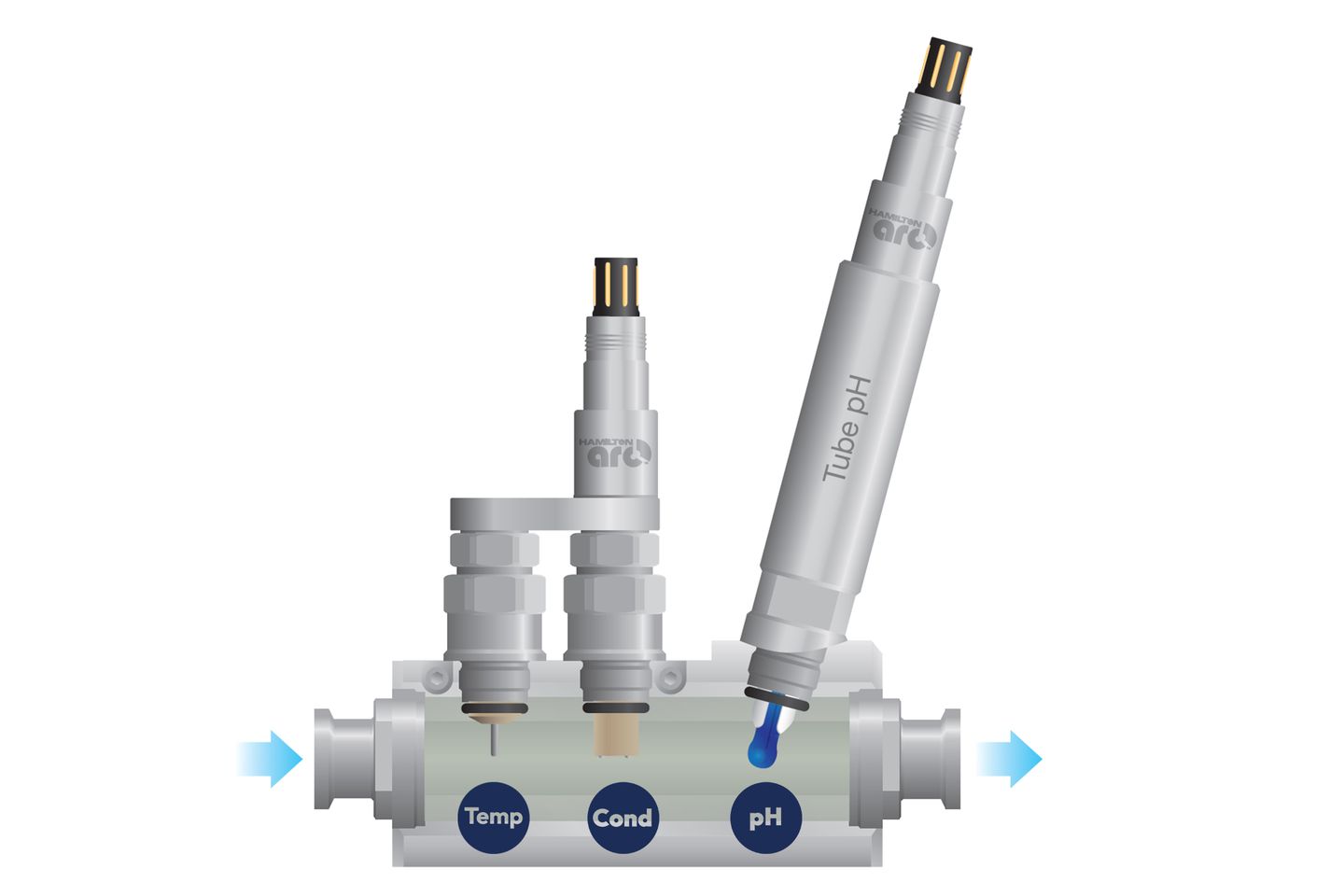

All-in-One Solution
Combined solution for measuring conductivity, temperature, and pH in your downstream processes
2
Accuracy in FlowCell
±3% or better - ensures tighter process control
3
Temperature Response Time
≤30 sec or faster – enables faster process adjustments

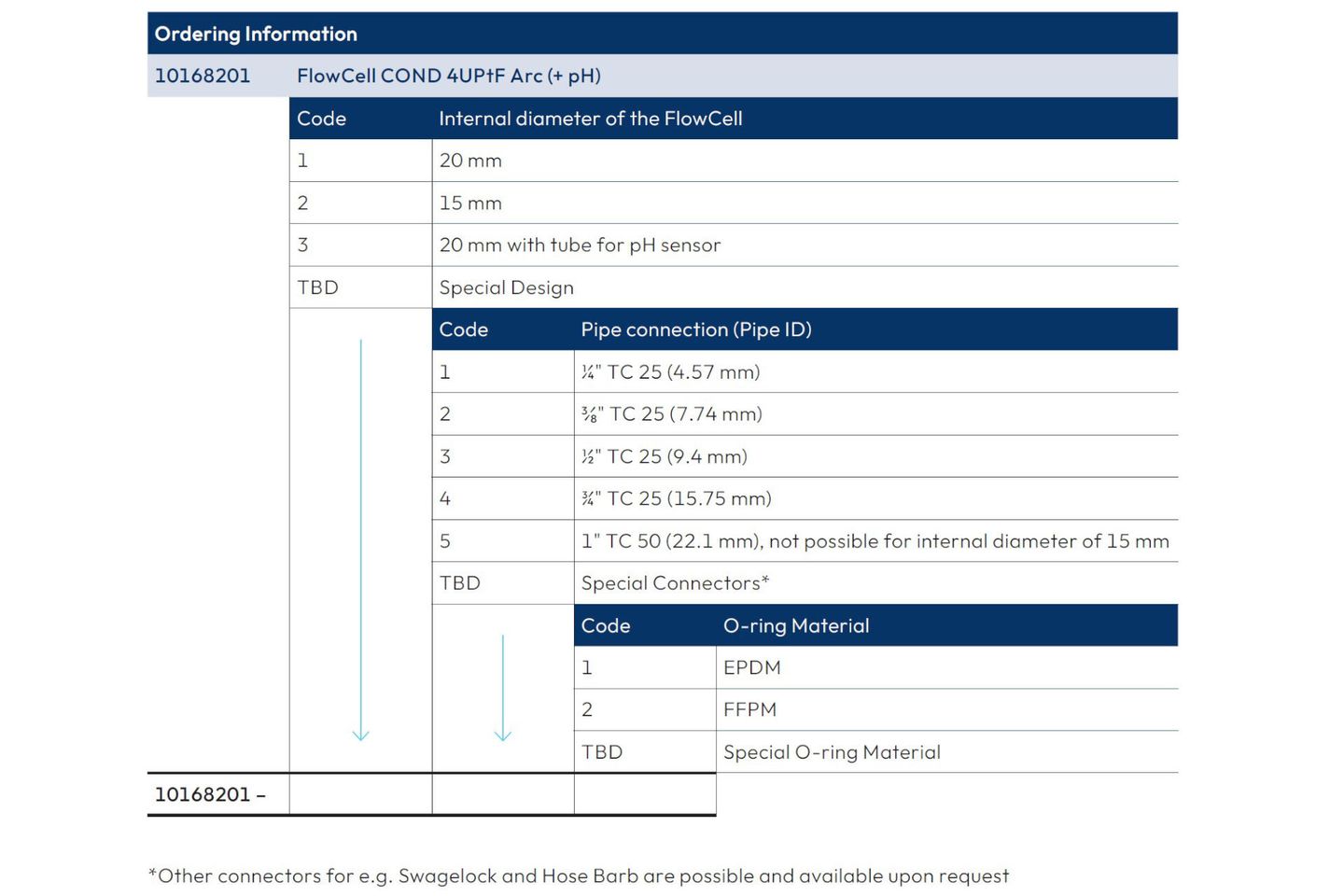

Ordering Information
Webinars
FlowCell COND 4UPtF Arc Specifications
FlowCell COND 4UPtF Arc Specifications
Print- Wetted Parts
- Stainless Steel 1.4435
PEEK (Polyetheretherketone)
EPDM (Ethylene propylene elastomer) or FFKM
See compliance details in Material Specification document
- O-ring Material
- EPDM or FFKM
See compliance details in Material Specification document
- Pressure Range (bar g)
- 0 to 16 bar (140 °C)
- Surface Quality of Steel
- Ra < 0.4 µm (N5, electropolished)
- ATEX approval
- No
- IECEx approval
- No
- Process Connection
- 1/4" TC25 (ID 4.5 mm)
3/8" TC 25 (7.74 mm)
1/2" TC 25 (9.4 mm)
3/4" TC 25 (15.75 mm)
1" TC 50 (22.1 mm), not possible for internal diameter of 15 mm
- Operating Temperature Range
- Analog interface: 0 to 110 °C; Digital interface: 0 to 140 °C
- Internal Volume
- 15mm Internal Diameter: Approx. 20 mL
20mm Internal Diameter: Approx. 27mL
20mm Internal Diameter with pH: Approx. 37mL
- Mounting
- 2 Hex screws: M4*45 mm
- Serial Number
- Yes
- Certificate
- Yes, with calibrated cell constant
- CIP
- Yes
- Electrical Connector
- VP8
- Sensor Output
- Arc: Modbus, 4 to 20 mA
- Measuring Range
- 1 µS/cm to 300 mS/cm
- Accuracy at 25 °C
- ± 3% or better from 1 μS/cm – 100 mS/cm
± 5% or better from 100 mS/cm - 300 mS/cm
- Cell Constant
- 0.4 / cm (FlowCell COND 4UPtF Arc)
0.415 / cm (FlowCell COND 4UPtF Arc + pH)
- Temperature Sensor
- NTC 22 kOhm
- Configurable Values
- Conductivity: µS/cm, mS/cm; Temperature: °C, °F, K
- Analog Interface 1
- 4 to 20 mA for conductivity, programmable
- Analog Interface 2
- 4 to 20 mA for Temp., programmable
- Analog Interface 1 and 2
- Galvanically not isolated; pulse width modulation 3.5 kHz
- Digital Interface
- RS485 Modbus (max. 32 addresses)
- Baud Rate
- 4800, 9600, 19200, 38400, 57600,115200 Bd
- Operating Voltage
- 7 to 30 VDC max. 150 mW
- Temperature Response
- ≤ 30 sec (Note: Temperature response is highly dependent on the process conditions including flow rate, environment temperature)
- Internal Diameter of FlowCell
- 10168201-241: 15 mm
10168201-111: 20 mm
- SIP
- Yes, max. Temperature 140 °C
- Electrodes
- Platinum
FlowCell COND 4UPtF Arc Resources

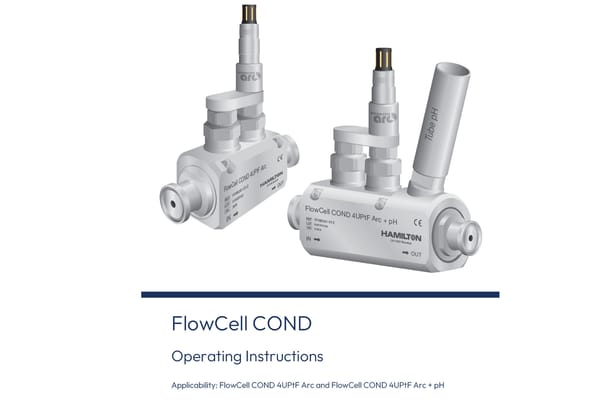

Browse app notes, user guides, specification documents, and more in our Knowledge Center.
