Polilyte HT

Polilyte HT sensors are built for demanding applications in the chemical and industrial water sectors, offering reliable pH measurement in harsh conditions. Their clog-resistant, maintenance-free design and Memosens™ digital technology ensure precise, stable performance even at high temperatures.

Receive More Information

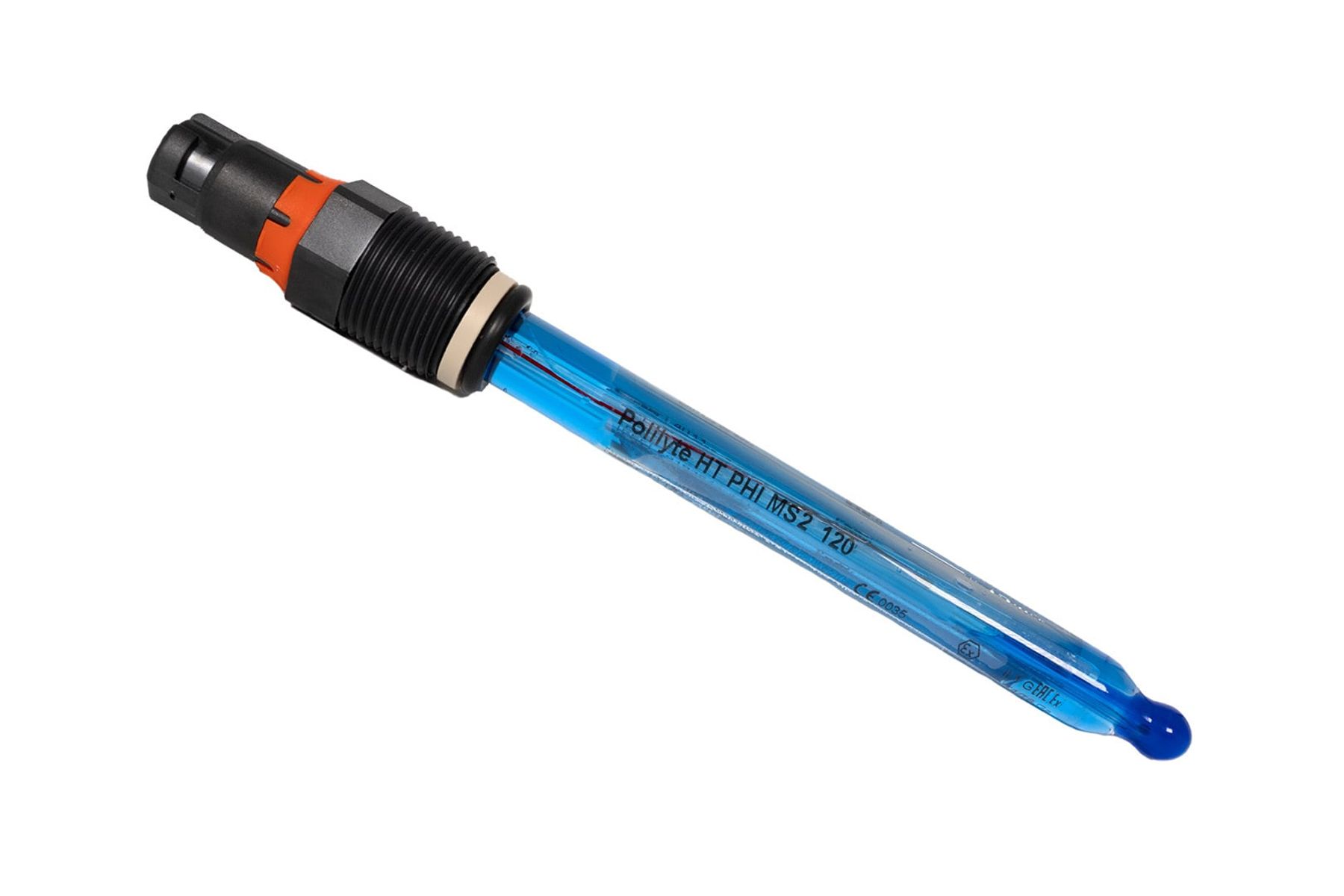

  • Polilyte HT PHI MS2 120 combination pH electrode with blue glass shaft and black threaded fitting

Commonly Grouped Accessories

Polilyte HT Details

Polilyte HT sensors have been designed to withstand demanding industrial processes in chemical, petrochemical, process water, and water treatment applications. The sensor has a maintenance-free design, as clogging is eliminated by the two single-pore junctions that enable direct contact between the Polisolve reference electrolyte and the sample, ensuring optimal measurement performance. Polilyte HT sensors show excellent measurement accuracy in highly alkaline solutions as well as in samples with very low conductivity. They are steam-sterilizable, autoclavable, and suitable for clean-in-place (CIP) procedures. The sensor offers exceptional stability and robustness, even at high temperatures, while the Hamilton PHI glass ensures minimal signal drift after cleaning and high chemical resistance. Integrated Memosens™ technology enables safe, contactless digital signal transmission, enhancing data reliability and simplifying sensor handling. Memosens™ is a trademark of Endress+Hauser.

High Measurement Accuracy: Delivers precise pH readings in challenging conditions, including highly alkaline and low-conductivity samples.

Robust and Durable Design: Withstands high temperatures and aggressive chemical environments, ensuring long-term stability and performance.

Wide Application Range: Engineered for use in chemical, petrochemical, process water, and water treatment, handling extreme pH values and low-conductivity media with ease.

Sterilization and CIP Compatibility

Fully steam-sterilizable, autoclavable, and clean-in-place capable, making it ideal for demanding industrial cleaning processes.

Dual Single-Pore Junctions

Prevent clogging and ensure direct contact with the sample for stable measurements.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Polilyte HT Specifications

Print
Process Connection PG13,5
Sensor Family Polilyte HT
Wetted Parts GΙass
EPDM (Ethylene propylene elastomer)
pH Glass Hamilton Type PHI Glass
Electrical Connector Memosens
Parameter pH
Sensor Output Memosens
Measuring Range pH 0 to 14
Electrolyte Polisolve DMA
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Single Pore
Number of Diaphragms 2
Reference System Hamilton Everef-L
Liquid Earth No
Temperature Sensor NTC 30 kOhm
O-ring Material FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
ATEX Approval II 1 G Ex ia IIC T3/T4/T6 Ga
IECEx Approval II 1 G Ex ia IIC T3/T4/T6 Ga
UKEx Approval II 1 G Ex ia IIC T3/T4/T6 Ga
Diameter 12 mm
Autoclavable Yes, max. Temperature 130 °C
Steam Sterilizable Yes, max. Temperature 130 °C
CIP Yes
Operating Temperature Range 0 to 130 °C
Sample min Conductivity 2 μS/cm
Pressure Range bar g 0 to 16 bar (100 °C), 0 to 10 bar (130 °C)
Upside Down Installation Supported
