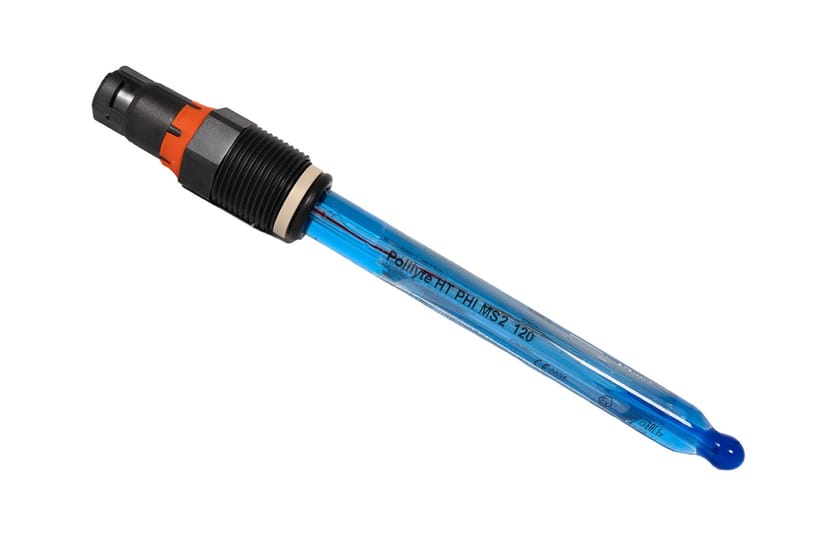

Polilyte HT sensors are built for demanding applications in the chemical and industrial water sectors, offering reliable pH measurement in harsh conditions. With a clog-resistant, maintenance-free build and Memosens technology, they ensure stable, high-temp performance.
Product Specifications
| Process Connection |
Process Connection
PG13,5
|
|---|---|
| Sensor Family |
Sensor Family
Polilyte HT
|
| Wetted Parts |
Wetted Parts
GΙass
EPDM (Ethylene propylene elastomer) |
| pH Glass |
pH Glass
Hamilton Type PHI Glass
|
| Electrical Connector |
Electrical Connector
Memosens
|
| Parameter |
Parameter
pH
|
| Sensor Output |
Sensor Output
Memosens
|
| Measuring Range |
Measuring Range
pH 0 to 14
|
| Electrolyte |
Electrolyte
Polisolve DMA
|
| Sensitivity |
Sensitivity
57 to 59 mV / pH at 25 °C
|
| Zero Point |
Zero Point
0 ± 20 mV
|
| pH Glass Resistance |
pH Glass Resistance
Moderate
|
| Membrane Shape |
Membrane Shape
Spherical
|
| Diaphragm |
Diaphragm
Single Pore
|
| Number of Diaphragms |
Number of Diaphragms
2
|
| Reference System |
Reference System
Hamilton Everef-L
|
| Liquid Earth |
Liquid Earth
No
|
| Temperature Sensor |
Temperature Sensor
NTC 30 kOhm
|
| O-ring Material |
O-ring Material
FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
Yes, with measured values in Buffer pH 4.01 and pH 7.00
|
| ATEX Approval |
ATEX Approval
II 1 G Ex ia IIC T3/T4/T6 Ga
|
| IECEx Approval |
IECEx Approval
II 1 G Ex ia IIC T3/T4/T6 Ga
|
| UKEx Approval |
UKEx Approval
II 1 G Ex ia IIC T3/T4/T6 Ga
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes, max. Temperature 130 °C
|
| Steam Sterilizable |
Steam Sterilizable
Yes, max. Temperature 130 °C
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
0 to 130 °C
|
| Sample min Conductivity |
Sample min Conductivity
2 μS/cm
|
| Pressure Range bar g |
Pressure Range bar g
0 to 16 bar (100 °C), 0 to 10 bar (130 °C)
|
| Upside Down Installation |
Upside Down Installation
Supported
|
Spec. Version A
