VisiTrace Dissolved Oxygen Sensors

Hamilton's VisiTrace optical dissolved oxygen sensors are designed for trace-level dissolved oxygen monitoring down to low parts per billion (ppb) levels. Multiple DO probe lengths, electrical connectors, and sensor outputs are available.

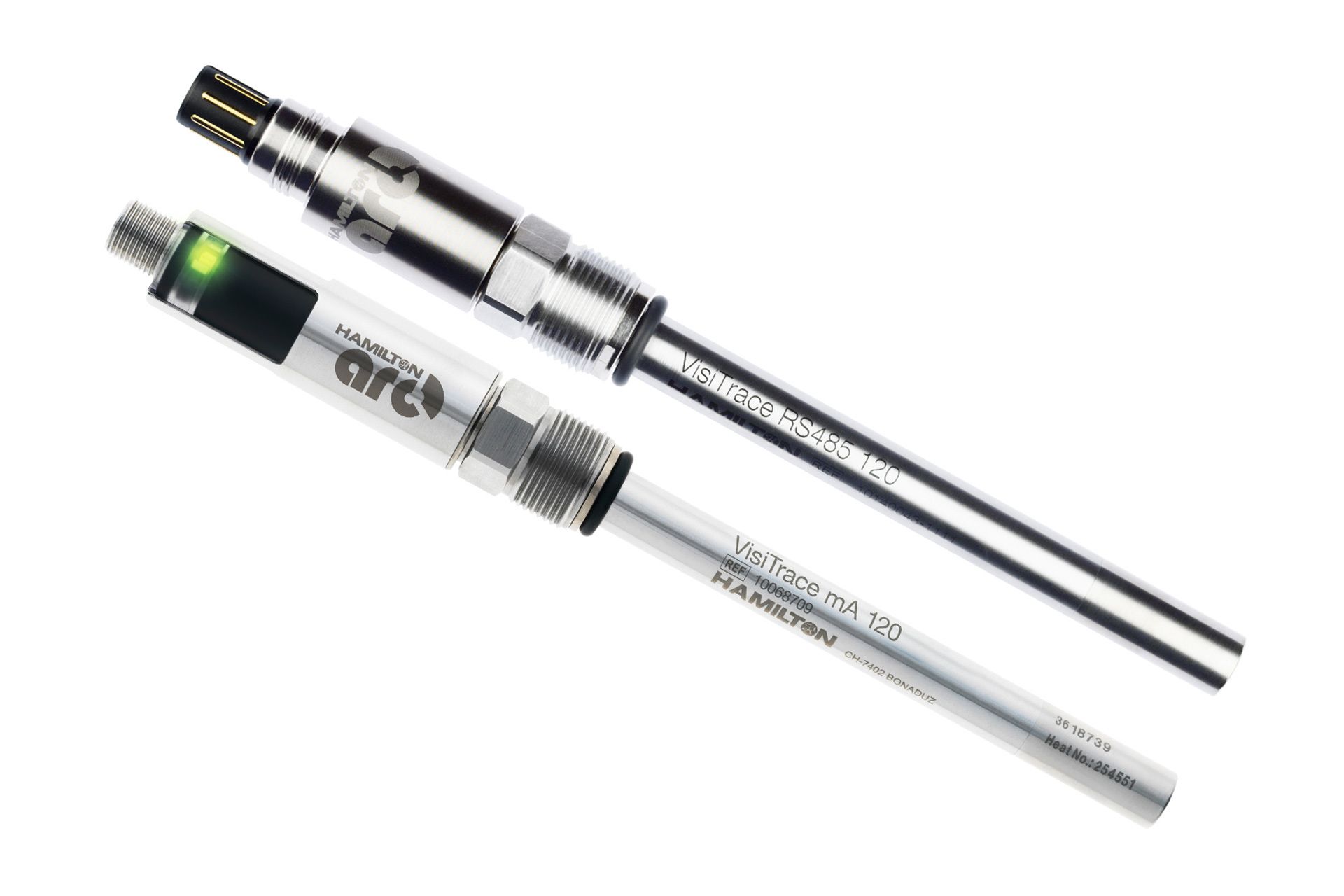

VisiTrace mA RS485 Dissolved Oxygen Sensor

Precise low-level dissolved oxygen measurement.

VisiTrace optical dissolved oxygen sensors are engineered for precise dissolved oxygen monitoring in low ppb ranges that are crucial for brewing and power plant applications. They provide fast response, flow independence, rapid startup with no polarization time, and simple maintenance. It comes with the ODO Cap L1 as standard. ArcAir software effortlessly manages VisiTrace sensors to streamline your workflows. Use VisiTrace mA in hazardous environments and VisiTrace RS485 in general industrial areas.

  • The sensors allowed us to improve the end product.

    We have high quality standards and are convinced that Hamilton is able to meet them with its oxygen sensors. We use the oxygen sensors throughout the entire area of ​​beer production and bottling. The sensors allowed us to improve the end product. Hamilton's support is excellent at all times.

    Marco Punke
    Team leader for technology and QM/UM, Princely Fürstenbergische Brewery GmbH & Co. KG

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Benefits of using Hamilton VisiTrace DO sensors

  • High Accuracy Trace-Level Sensing

    Precisely measures dissolved oxygen in critical 0.8-2000 ppb ranges that are essential for brewers and power plants.

  • Minimal Maintenance

    Optical technology eliminates the need for frequent electrolyte or membrane replacements to streamline processes.

  • Seamless, Flexible Integration

    Select analog, digital or HART communication protocols for direct connection to process control systems.

View all VisiTrace Dissolved Oxygen sensors

Compare
Part # Sensor Family a-length Sensor Cap ATEX Approval Sales Quantity

JavaScript is required to view and filter products in this category.

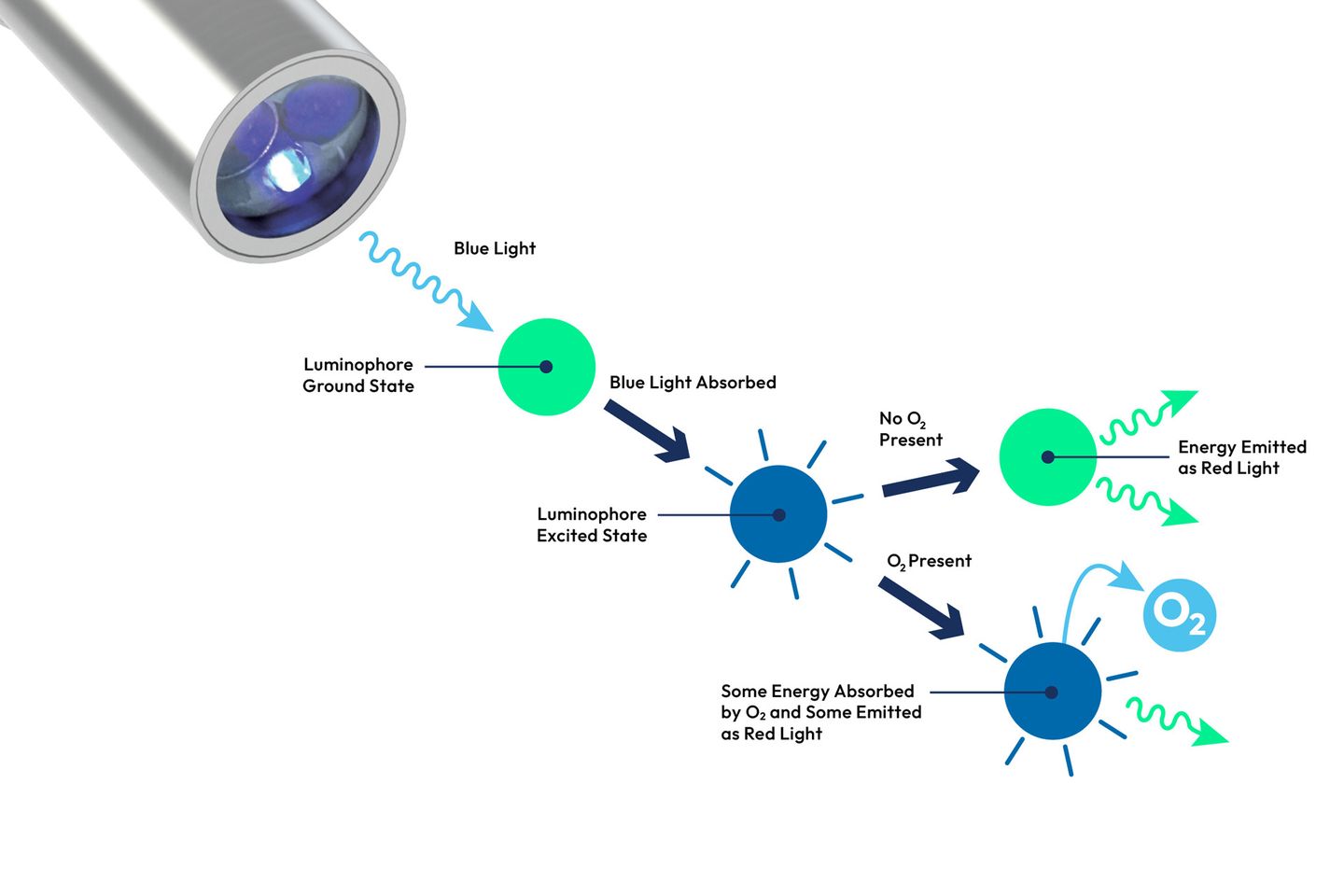

How does optical dissolved oxygen work?

The sensing element for an optical DO sensor is an oxygen sensitive luminophore. A blue light from the sensor excites the luminophore. When the excited molecule returns to its ground state it gives off red light. In the presence of oxygen some of the energy is transferred to the oxygen molecule. The oxygen measurement is made by comparing the excitation light (blue) to the emitted light (red).


How dissolved oxygen sensor works
Optical dissolved oxygen sensors fouling

Why choose optical DO sensors like VisiTrace?

Optical dissolved oxygen sensors offer significant advantages over traditional electrochemical (amperometric) sensors. These include flow independence, rapid start-up with no polarization time, and simplified maintenance as they do not require electrolyte or internal cathode/anode replacement. Additionally, optical sensors like VisiTrace are insensitive to CO2 fouling, which can affect the accuracy of amperometric sensors. VisiTrace sensors provide stable and reliable measurements in critical low ppb range.

VisiTrace Dissolved Oxygen Sensors Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Optical dissolved oxygen sensor caps compatibility

There are several different options for optical dissolved oxygen (ODO) caps. This article provides recommendations for each product.
Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

What variables impact an oDO calibration?

Optical dissolved oxygen (oDO) sensors still require calibration, though less frequently than the polarographic versions. New sensors (or new caps on existing sensors) require a two point calibration in air and an air free environment, ideally high purity nitrogen.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Firmware Updates for Arc Products

Hamilton Arc and VisiFerm ECS sensors rely upon internal firmware for their operation. Periodic firmware updates ensure that the sensor has the latest features and fixes any pre-existing bugs that may exist.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does salinity impact my DO measurement?

Yes, salinity of a solution generally has an inverse relationship to the dissolved oxygen content within the solution. Arc sensors can have the salinity value of the liquid added in to correct the measurement by using ArcAir.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does atmospheric pressure impact my gas phase oxygen measurement?

Yes, atmospheric pressure directly impacts the partial pressure of oxygen in the measured air and is linearly proportional to the measured oxygen content.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does temperature impact my oxygen measurement?

Yes, in a closed system, gas phase temperature is directly proportional to pressure and therefore measured oxygen content. In solution, temperature is inversely proportional to dissolved oxygen content.

Services

Maintenance and Calibration Services

Preventative maintenance and regular service contracts. Schedule on-site service dates to ensure your sensors are properly maintained and your process is optimized.

On-Site Service Diagnostics

Diagnosing and resolution of process system problems on-site. Finding the root cause and presenting a solution to fit your needs.

On-Site Training

User trainings and on-site trainings for technicians. Tailored training ranging from basic operation to advanced calibration and maintenance.

Installation Support

Installation, set-up, and calibration support directly on-site. Our field service team ensures your sensors and cables are installed and functioning correctly.

Qualification IQ/OQ

Support for the qualification of Hamilton equipment including complete documentation. Readying your process for GMP manufacturing activities.

Application and Technical Support

Hamilton's Technical Support team is here to provide product trouble-shooting, repair, application support, virtual start-up support, and more.
