One-Piece Needles
Precision-Machined Steel
Leak-Free Performance
Consistent Fluid Transfer
Chemically Resistant Alloy
Withstands Harsh Agents
Ideal for OEM Use
Custom Machining Options
Grooves, Holes, or Ports
Tailored to Your Specs
High-Precision Fluid Handling
Hamilton’s one-piece needles are engineered from a single solid piece of stainless steel for strength, consistency, and compatibility with demanding applications. Designed for OEM integration, these machined components are ideal for automated workflows, fluid transfer, and sampling in regulated environments.
Precision Performance for OEM and Automation
Hamilton’s One-Piece Needle is manufactured from a single solid piece of stainless steel for unmatched strength and reliability. Designed to withstand high-throughput use, it excels in automation, fluid transfer, and sampling tasks where durability and precision are critical. Its one-piece construction minimizes the risk of leakage and supports consistent, long-term performance.
Tailored Machining for Precision Applications
Hamilton’s one-piece needles are available in gauges from 10 to 17, lengths up to 25 mm, and point styles AS, 3, and 4 (11°–60°). Select from machinable hub types Metal Luer Lock(V), Removable Hub (RN), Kel-F (KF), or ChemSeal (C), with hub lengths up to 18 mm.
Crafted from a single metal body using precision micro-machining, the needle eliminates welds and seams, ensuring ultra-smooth internal flow paths and zero dead volume, critical for high-purity or high-precision fluid applications.

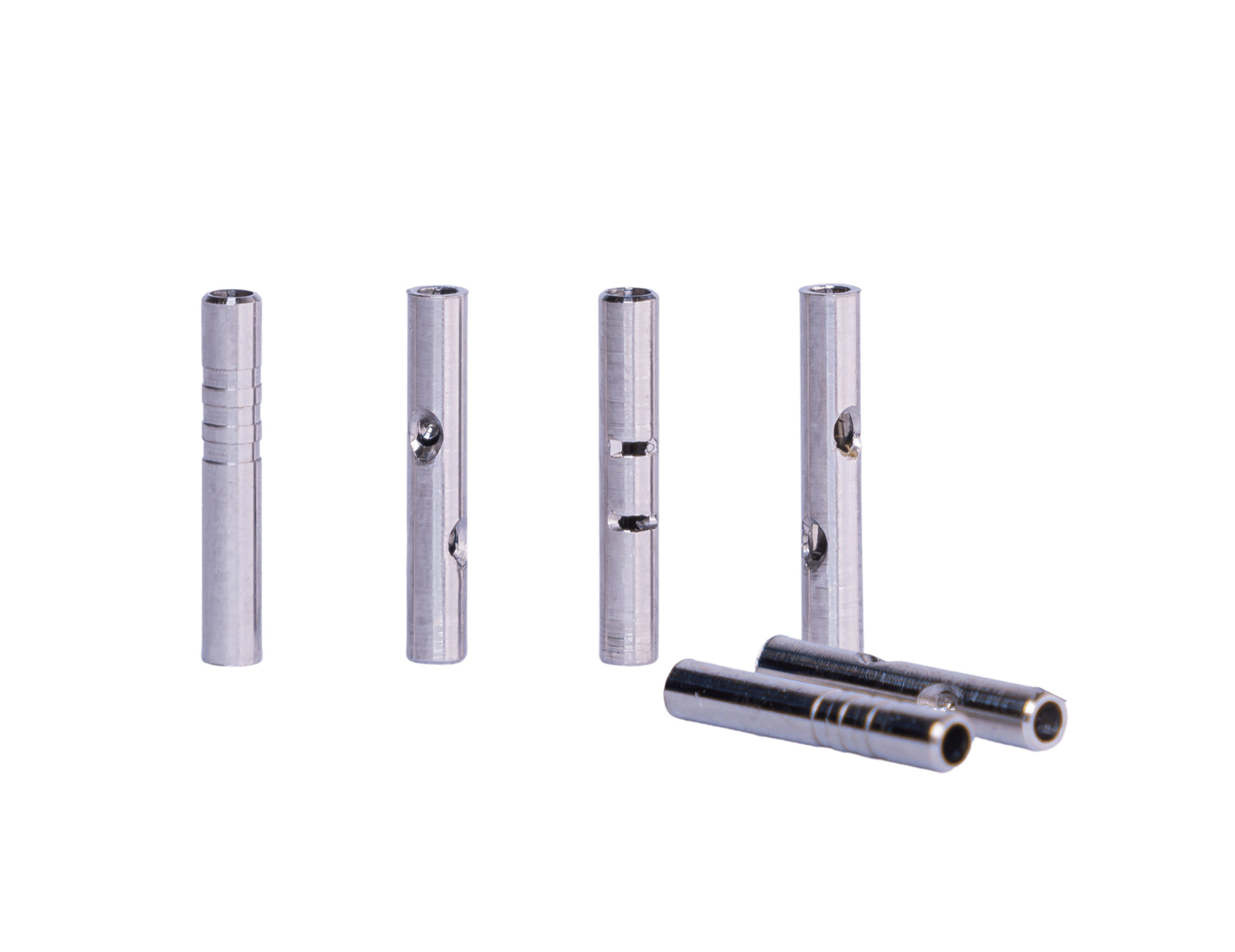

Tailor drilled, milled, or vibratory-finished holes and machined grooves to define fluid entry/exit characteristics, improve venting, or optimize directional sampling, engineered to meet the exacting specs of custom applications.
Fabricated from durable stainless steel (304/316/316L), PEEK, or aluminum, these needles withstand corrosive environments, cleaning cycles, and mechanical wear, making them ideal for lab automation and industrial fluidics.
Precision-Machined Fluid Paths
Manufactured through advanced milling and grinding to produce smooth, accurate holes and grooves for controlled fluid movement and sampling.
1

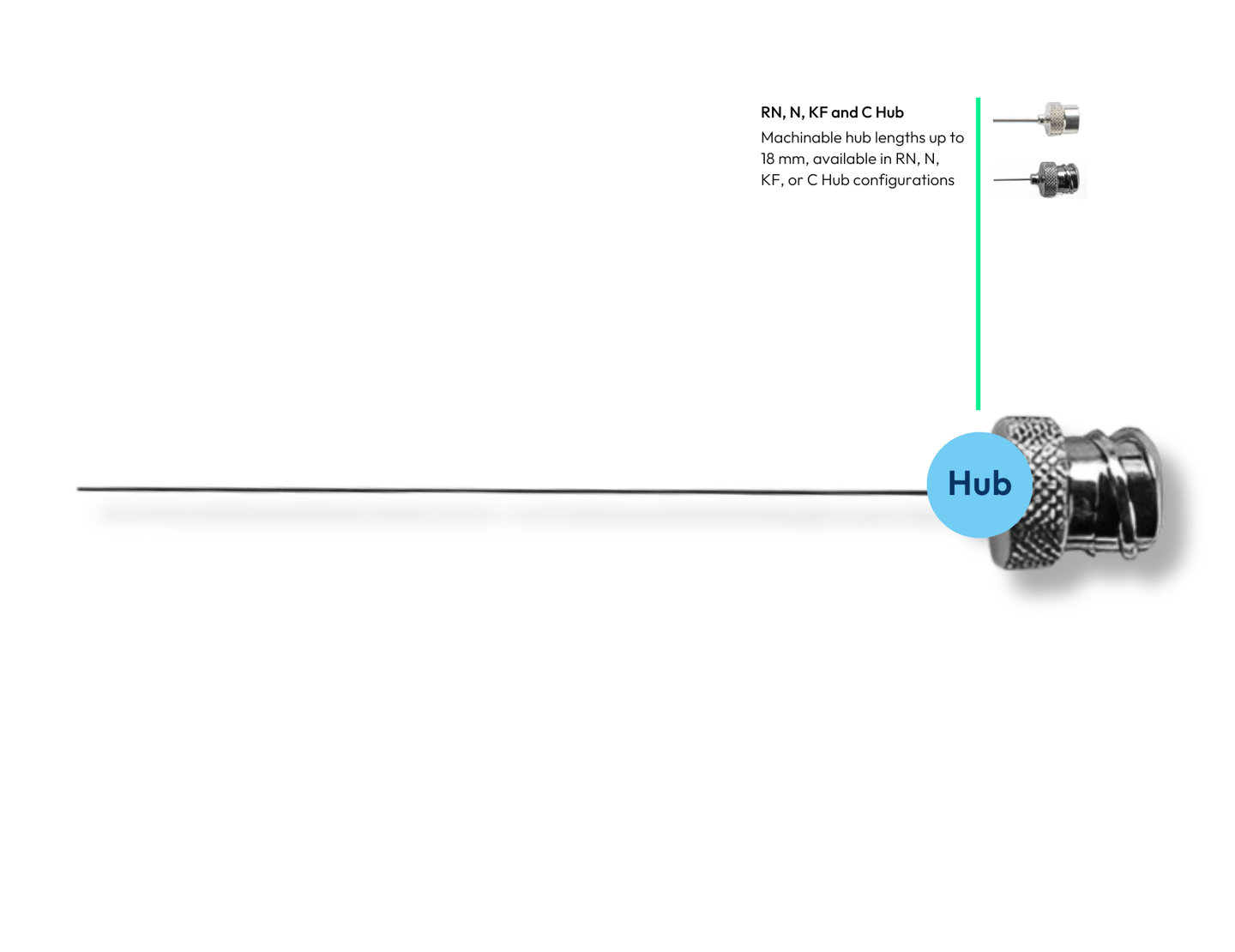

Hub Style
Machinable hub lengths up to 18 mm, available in RN, N, KF, or C Hub configurations.
2

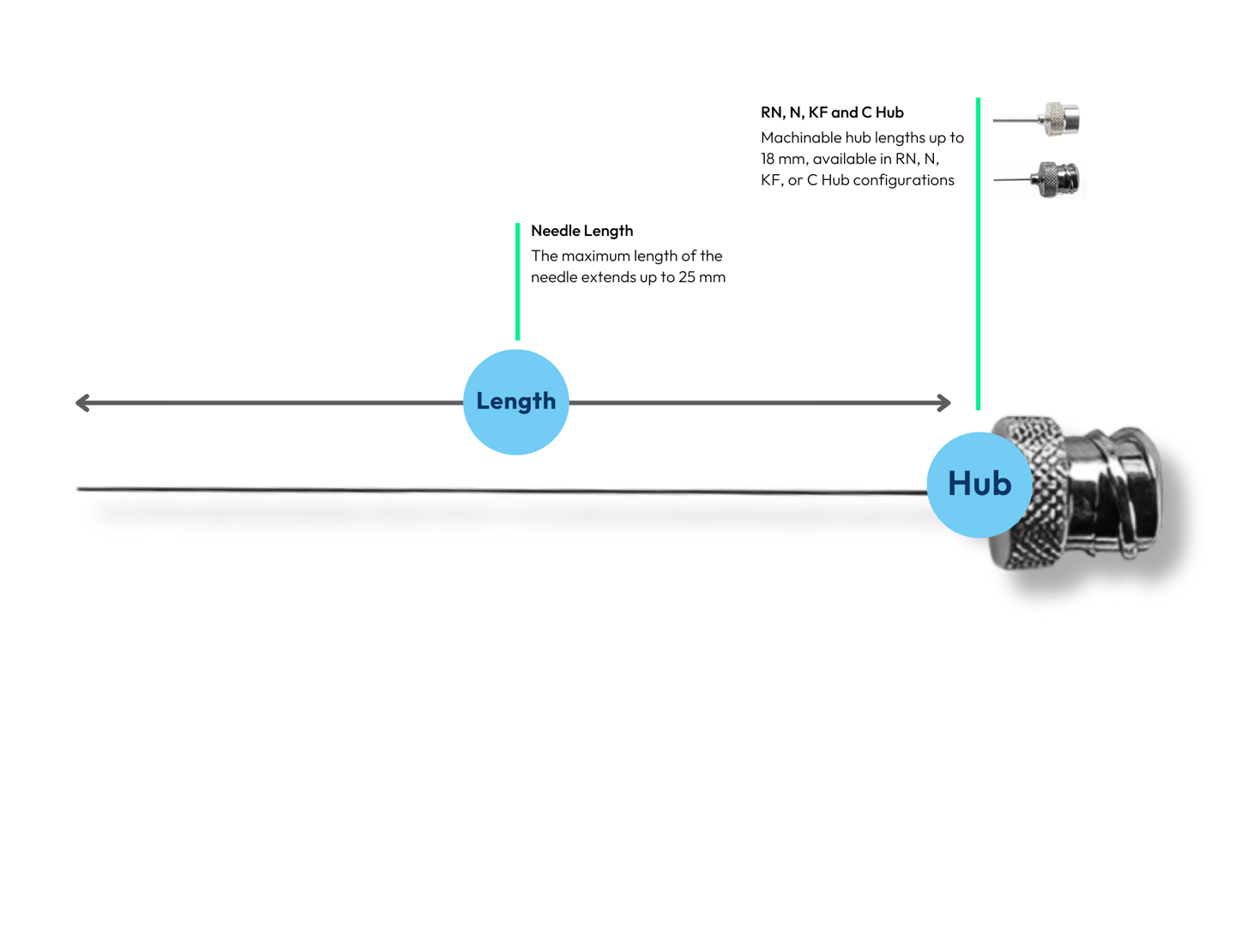

Length
The maximum length of the needle extends up to 25 mm.
3

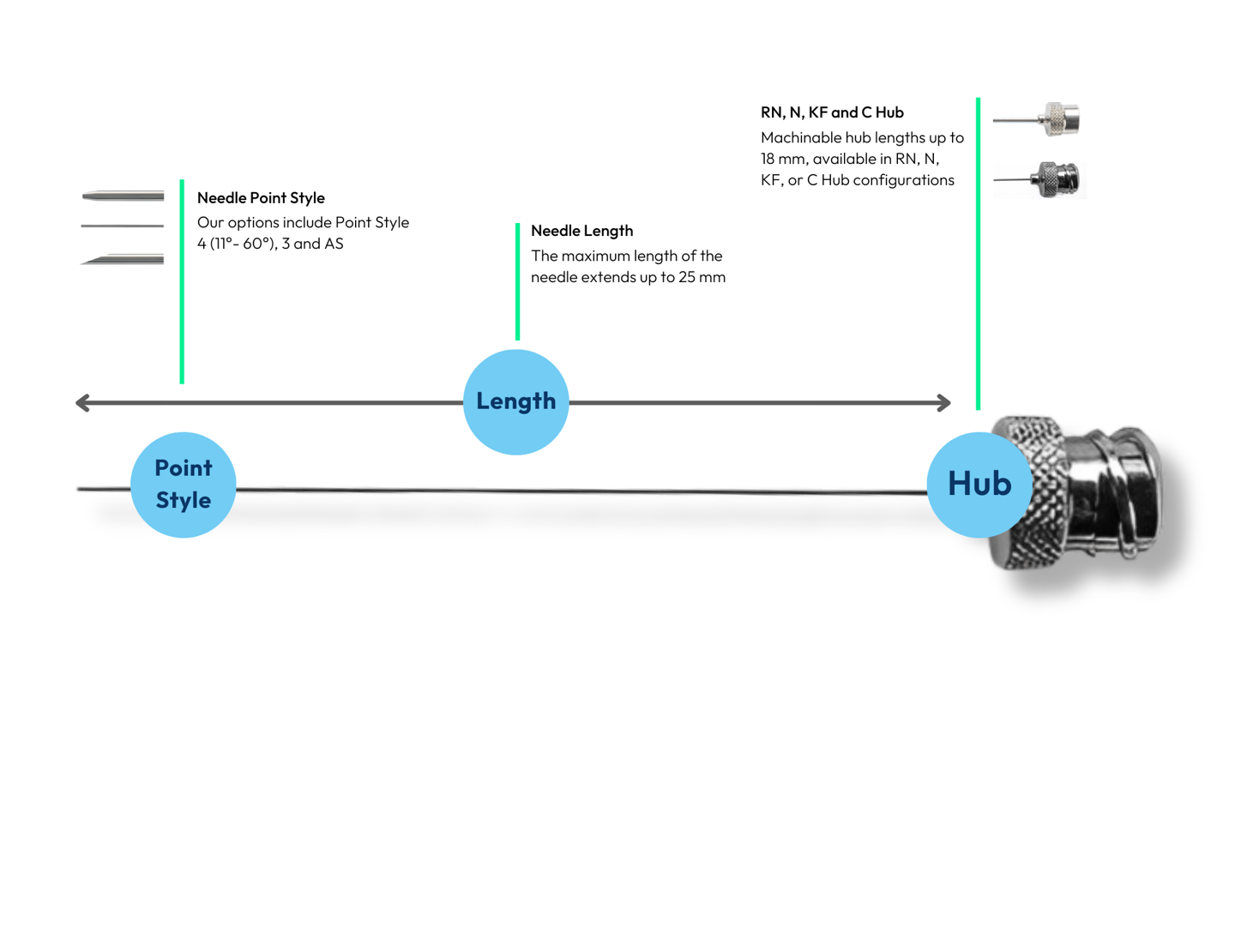

Point Style
Our options include Point Style 4 (11°- 60°), 3 and AS
4

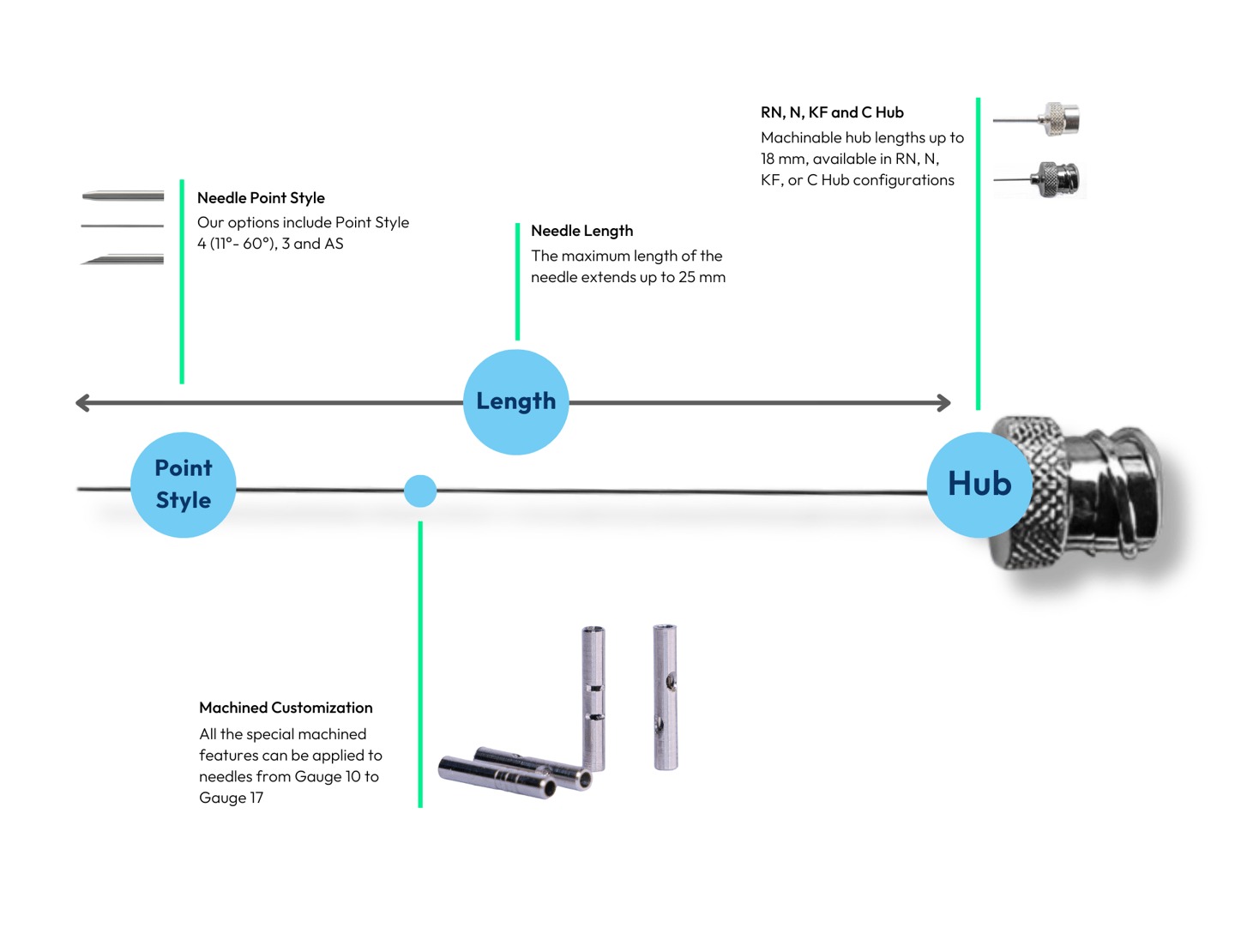

Machined Customization
All the special machined features can be applied to needles from Gauge 10 to Gauge 17.
Application-Specific Customization
We offer custom needle modifications through advanced micro-machining technologies.
One-Piece Needles Resources
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
