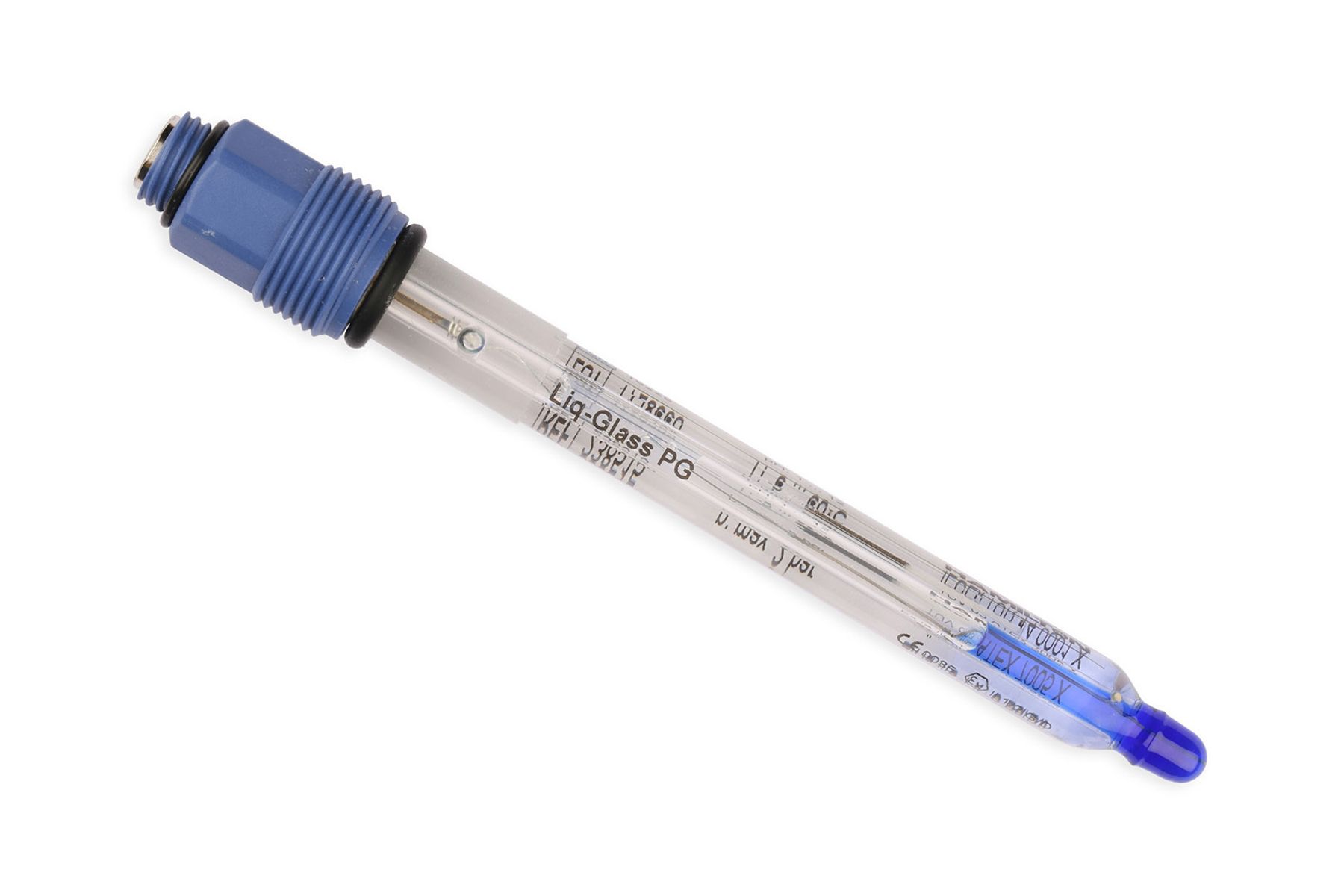

Liq-Glass PG

Part # 238515

Liq-Glass PG pH sensors are ideal for reliable pH measurements in wastewater, fish farming, groundwater, and swimming pools, especially excelling in low conductivity media due to their non-refillable viscous electrolyte.

Receive More Information

Minimum: 1, Maximum: 1000

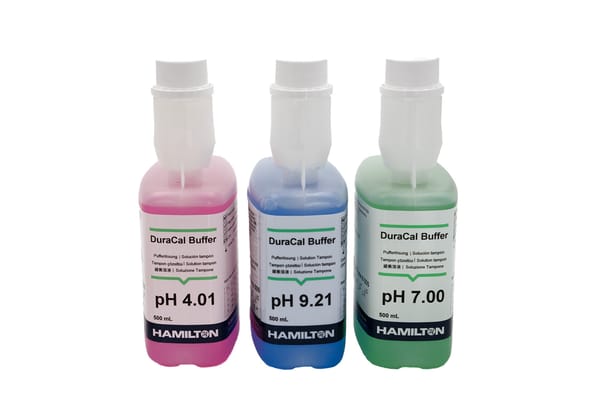

Commonly Grouped Accessories

Liq-Glass PG Details

The Liq-Glass PG sensor provides a robust solution for pH measurement in challenging environments. The viscous liquid gel electrolyte minimizes maintenance by eliminating the need for refilling and slowing down contaminant ingress. The Liq-Glass PG specifically features three ceramic diaphragms, which help to reduce flow potentials and enhance measurement stability in low conductivity samples.

Common applications Water, Energy, & Environment, Water and Wastewater

Easy maintenance due to non-refillable electrolyte.

Suitable for low conductivity media.

3 ceramic diaphragms for reduced flow potentials.

Low Maintenance

  • The viscous liquid gel electrolyte in Liq-Glass sensors eliminates the need for refilling, simplifying maintenance and reducing the risk of electrolyte leakage.
  • This design ensures consistent performance over extended periods, especially in demanding applications where regular maintenance can be challenging.

Multiple Ceramic Diaphragms

  • The Liq-Glass PG version features three ceramic diaphragms.
  • This design minimizes flow potentials at the junction, resulting in more stable and accurate pH measurements, particularly in challenging low conductivity samples where such potentials can interfere with readings.
Scientific Citations

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Liq-Glass PG Specifications

Print
Process Connection PG13,5
Wetted Parts GΙass
Ceramic
EPDM (Ethylene propylene elastomer)
(FDA 21 CFR 177.2600; EU 1935/2004; USP <88> Class VI - 121 °C)
pH Glass Hamilton Type F Glass
Electrical Connector S8
a-length 120 mm
Measuring Range pH 1 to 12
Electrolyte Viscous 3 M KCl-LR
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Low
Membrane Shape Spherical
Diaphragm Ceramic
Number of Diaphragms 3
Reference System Hamilton Everef
Liquid Earth No
Temperature Sensor No
O-ring Material FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate No
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Operating Temperature Range -5 to 60 °C
Sample min Conductivity 2 µS/cm
Pressure Range bar g 0 to 2 bar
