Single-Use Dissolved Oxygen Measurement
The Hamilton’s ODO Cap Sx sensor elements are pre-installed as integral part of the single-use container with a long shelf life. They offer accurate, and stable measurements and come ready-to-use and pre-calibrated. They connect to the VisiFerm SU for a reliable measurement in single-use applications.
Reliable single-use dissolved oxygen monitoring.
The Hamilton ODO Cap Sx family of ODO Cap sensors elements represent a leading solution for single-use applications within the Pharmaceutical and Biotechnology Industries. These sensors represent a significant advancement in single-use measurement, addressing common issues associated with traditional reusable dissolved oxygen sensors inserted into bags or benchtop bioreactors. Combining the proven reliability and measurement stability of Hamilton's conventional sensors with the convenience of seamless integration into single-use bioreactors, ODO Cap Sx sensors offer high accuracy even after gamma irradiation and boast a sufficient shelf life. The ODO Cap Sx family is ideal for single-use bioreactors bag (ODO Cap S3) and rigid bioreactor (ODO Cap S2). The ODO Cap Sx in combination with the VisiFerm SU provides industry-standard digital Modbus RTU signal as well as an analog signal (4 to 20 mA). VisiFerm SU ECS can be connected and calibrated to most industry standard transmitters making it a perfect solution for retrofitting existing controllers with single-use containers.
Benefits of using Hamilton Single-Use DO Measurement solutions
View All ODO Cap sensors elements
Learn More About Our Single-Use Sensors
/
Anatomy of the VisiFerm Single-Use Dissolved Oxygen Sensor
| Criteria | Description |
|---|---|
Measurement principle |
Oxygen dependent luminescence quenching |
ODO Insert Options |
ODO Cap S0 and ODO Cap S3 (Bag), ODO Cap S2 (Bioreactor) |
Response time t98% |
< 30s at 25°C |
Drift at room temperature |
< 1% per week |

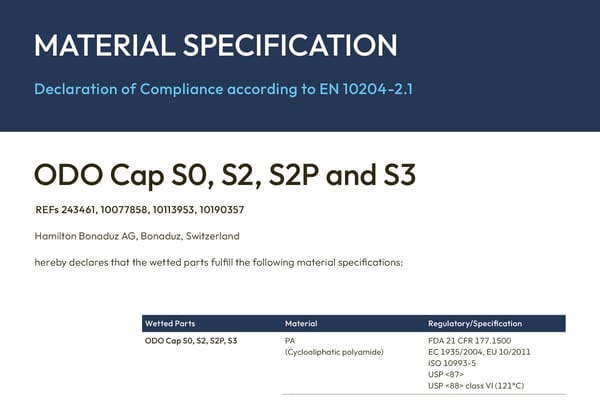

Wetted parts |
PA (Cycloaliphatic polyamide) / VMQ (Silicone elastomer) / EPDM |
ODO Cap Sx Resources
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Services
Installation, set-up, and calibration support directly on-site. Our field service team ensures your sensors and cables are installed and functioning correctly.
Support for the qualification of Hamilton equipment including complete documentation. Readying your process for GMP manufacturing activities.
Preventative maintenance and regular service contracts. Schedule on-site service dates to ensure your sensors are properly maintained and your process is optimized.
Diagnosing and resolution of process system problems on-site. Finding the root cause and presenting a solution to fit your needs.
User trainings and on-site trainings for technicians. Tailored training ranging from basic operation to advanced calibration and maintenance.
Hamilton's Technical Support team is here to provide product trouble-shooting, repair, application support, virtual start-up support, and more.
Backed by world-class service and support.
For over 75 years, the Hamilton name has been recognized globally for its unwavering commitment to quality. That pledge extends to creating long-term customer partnerships. We're proud to offer in-depth training courses, on-site field support, custom product builds, and so much more.
Let's Talk
Connect with a Hamilton expert to discuss solutions for your workflow. We are here to enable your success.
