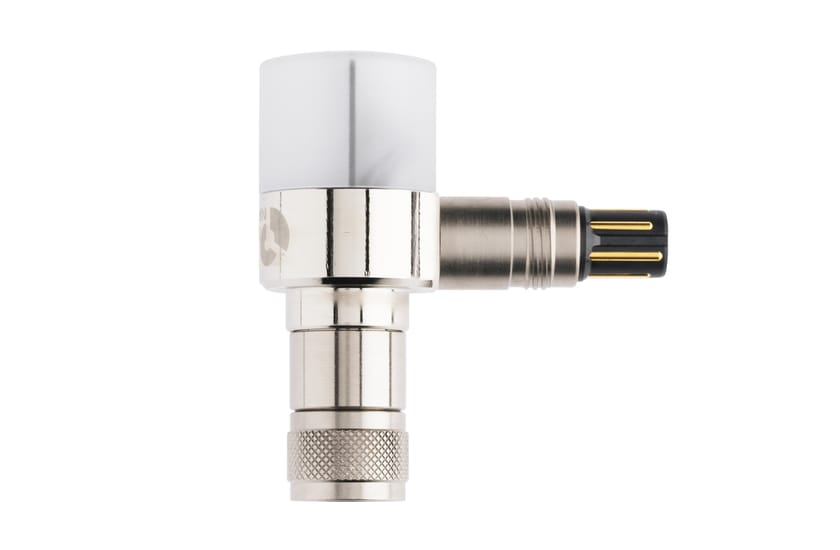

The Arc Wi Wireless Adapters enable Bluetooth communication for Arc and ECS sensors, allowing for easy wireless configuration, calibration, and troubleshooting. The color-changing cover provides quick status alerts. 1G (for ECS sensors/Modbus).
Product Specifications
| Electrical Connector |
Electrical Connector
VP8 / VP8
|
|---|---|
| Analog Interface 1 |
Analog Interface 1
4 to 20 mA, programmable
|
| Analog Interface 2 |
Analog Interface 2
4 to 20 mA for Temp., programmable
|
| Analog Interface 1 and 2 |
Analog Interface 1 and 2
Galvanically not isolated; pulse width modulation 3.5 kHz
|
| Frequency Range |
Frequency Range
2.45 GHz (IEEE 802.15.1)
|
| Transmitting Power |
Transmitting Power
Max. 4 dBm
|
| Digital Interface |
Digital Interface
Bluetooth 4.0
RS485 Modbus (max. 32 addresses) |
| Max. Range in Process Environment |
Max. Range in Process Environment
~ 20 m
|
| Operating Voltage |
Operating Voltage
7 to 30 VDC
|
| Serial Number |
Serial Number
Yes
|
| Operating Temperature Range |
Operating Temperature Range
5 to 70 °C
|
| Protection Rating |
Protection Rating
IP67
|
Spec. Version B
