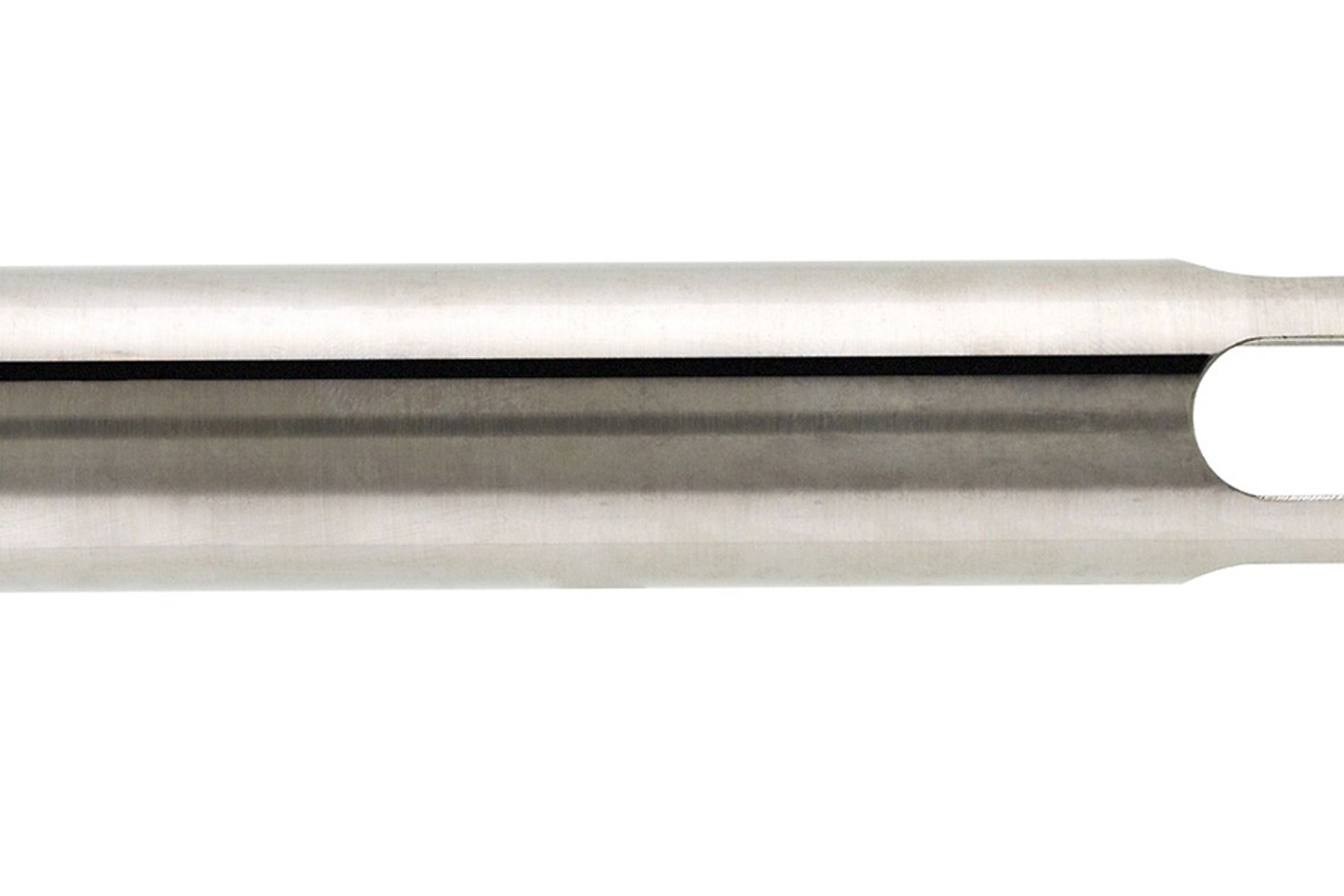

Immersing Set

Part # 237158

Use the Immersing Set to guarantee sensors are in the correct orientation for sample contact and measurement.

Receive More Information

Minimum: 1, Maximum: 1000

Immersing Set Details

The Immersing Set, is a specially designed weight for sensors with fixed cables. It not only ensures stable vertical positioning in open tanks for accurate top-to-bottom measurements, but also provides additional protection for the sensor. It's the ideal accessory for sensors like the OxySens, VisiWater, and PolyLite Pro with fixed cables.

Ensures correct sensor orientation for reliable measurements.

Improves consistency across sampling points.

Easy to install and compatible with a range of sensor housings.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Immersing Set Specifications

Print
Process Connection undefined
Wetted Parts Stainless Steel 1.4571
NBR (Nitril Elastomer)
For Sensors with 120 mm, 12 mm, PG13,5
Sensor Insertion Depth Variable
Sensor Compatibility pH / ORP, DO, COND
Surface Quality of Steel Ra < 0.8 µm (N6)
Housing Insertion Depth Variable
Min. Total Length 138 mm
Serial Number No
Certificate Yes, 3.1 certificate with heat number
ATEX Approval No
Diameter 27 mm
Autoclavable Yes
Steam Sterilizable Yes
CIP Yes
Operating Temperature Range -30 to 120 °C
Max. Pressure bar g 50 bar
