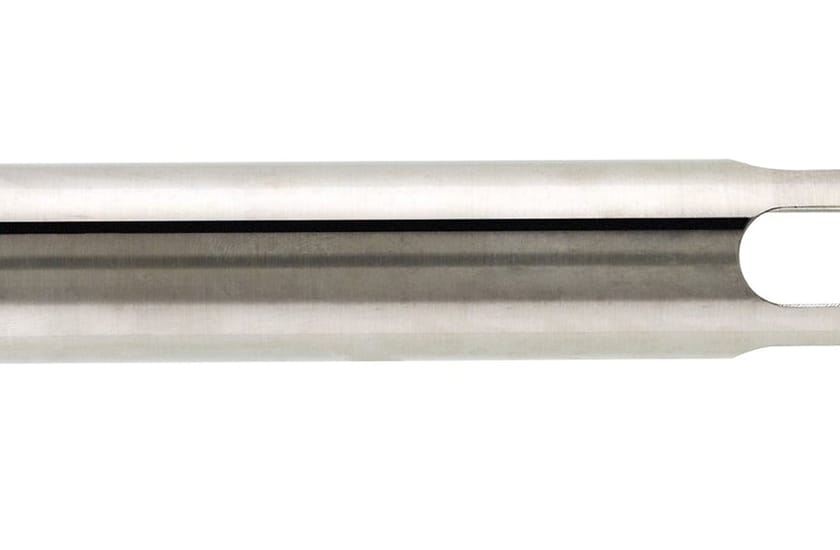

Use the Immersing Set to guarantee sensors are correctly positioned for sample contact and measurement.
Product Specifications
| Process Connection |
Process Connection
undefined
|
|---|---|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4571
NBR (Nitril Elastomer) |
| For Sensors with |
For Sensors with
120 mm, 12 mm, PG13,5
|
| Sensor Insertion Depth |
Sensor Insertion Depth
Variable
|
| Sensor Compatibility |
Sensor Compatibility
pH / ORP, DO, COND
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.8 µm (N6)
|
| Housing Insertion Depth |
Housing Insertion Depth
Variable
|
| Min. Total Length |
Min. Total Length
138 mm
|
| Serial Number |
Serial Number
No
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
No
|
| Diameter |
Diameter
27 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-30 to 120 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
50 bar
|
Spec. Version B
