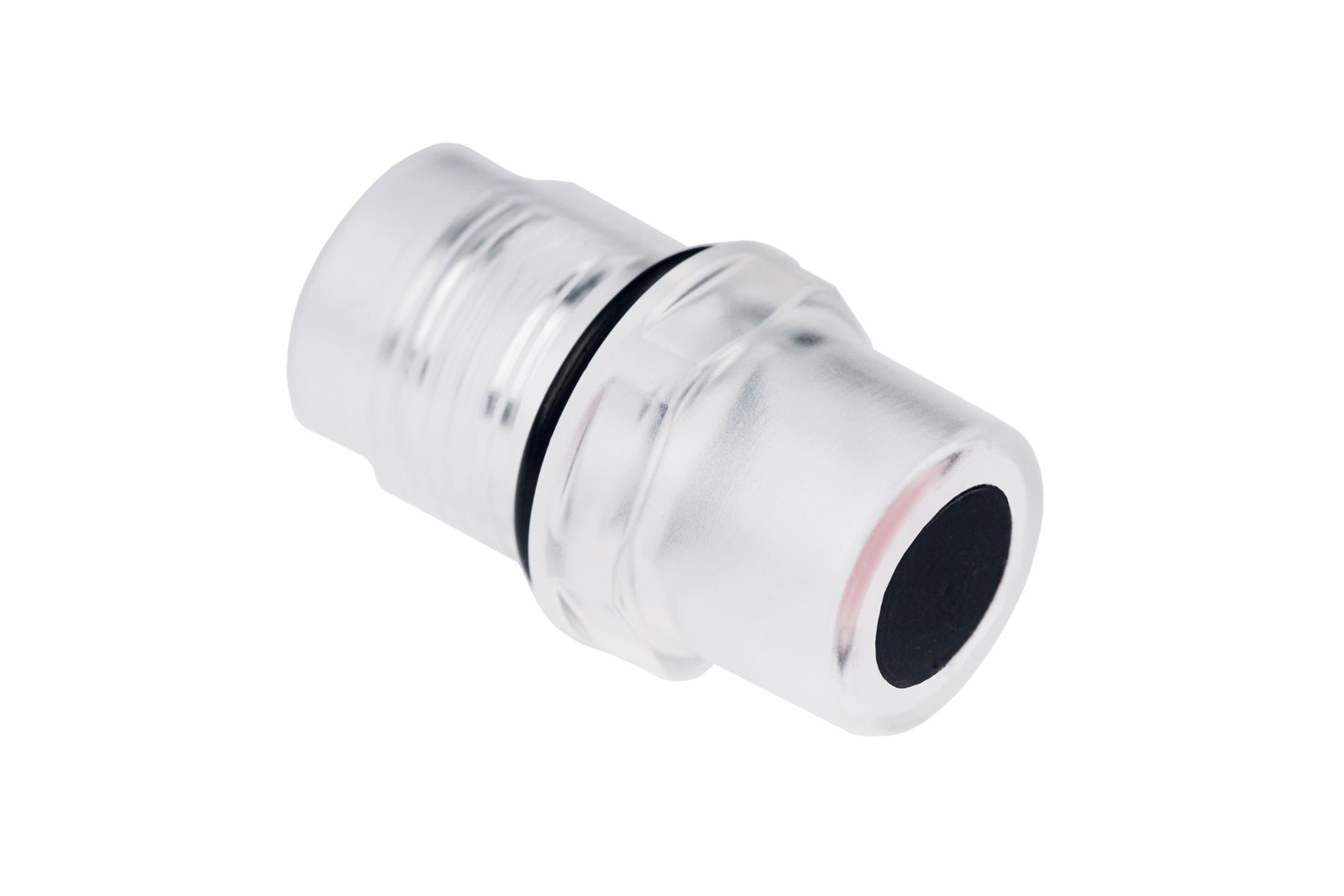

Optical DO Cap S2 Kit

Part # 10077858

The Hamilton ODO Cap S2 Kit for the optical measurement of Dissolved Oxygen (DO) is a Single-Use (SU) cap for the VisiFerm SU sensor. It can be integrated into the single-use container (e.g., in a well tube) with an inner thread M14x1-LH (Left-Handed thread). The ODO Cap S2 is available for integrators such as single-use bioreactor manufacturers.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Optical DO Cap S2 Kit Details

The Hamilton ODO Cap Sx family of sensor elements offers a leading solution for single-use applications in the Pharmaceutical and Biotechnology industries. These sensors represent a significant advancement in single-use measurement, addressing common issues associated with traditional reusable dissolved oxygen sensors inserted into bags or benchtop bioreactors. They combine the proven reliability and measurement stability of Hamilton's conventional sensors with the convenience of seamless integration into single-use bioreactors. ODO Cap Sx sensors provide high accuracy even after gamma irradiation and have a sufficient shelf life. The ODO Cap Sx family is ideal for single-use bioreactor bag (ODO Cap S3) and rigid bioreactor (ODO Cap S2). The ODO Cap Sx, combined with the VisiFerm SU, provide industry-standard digital Modbus RTU and analogue (4 to 20 mA) signals. VisiFerm SU ECS can be connected and calibrated to most industry standard transmitters, making them an ideal solution for retrofitting existing controllers with single-use containers.

Common applications Pharma & Biopharma, Bioprocess Downstream, Single-Use Bioprocessing, Agri-Food and Beverage, Novel Food Bioprocessing

Ensure sterile DO monitoring with easy single-use integration

Optical DO Cap S2 Kit Specifications

Print
Wetted Parts PA (Cycloaliphatic polyamide)
EPDM (Ethylene propylene elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document
Measuring Range 4 ppb to 25 ppm (DO)
0 to 62.85 %-vol
0 to 300 %-sat
Accuracy at 25 °C ± 1.0 %-sat (at 20 %-sat) after gamma irradiation and with product calibration
± 1.0 %-sat (at 100 %-sat) after gamma irradiation and with product calibration
± 2.5 %-sat (at 200 %-sat) after gamma irradiation and with product calibration
Calibration Data Yes, provided on sensor label
Drift at Room Temperature < 1 % per week (of measurement value)
Biocompatibility Yes, see separate study report (upon request)
Wet-in Time 30 min after dry storage
Shelf Life 12 months prior gamma irradiation
24 months after gamma irradiation
Serial Number Yes
Response Time t98% < 30 s at 25 °C
Autoclavable No
Steam Sterilizable No
CIP No
Gamma Irradiatable Yes, up to 50 kGy
X-Ray irradiatable Yes, up to 50 kGy
Operating Temperature Range 4 to 50 °C

Compatibility with Hamilton Devices

Explore the limitless possibilities of Hamilton products.

Optical DO Cap S2 Kit Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Glossary of Sensor & Biopharma Acronyms & Abbreviations

Acronyms and abbreviations are commonly used with process analytics measurements found in the biopharma industry. This glossary is an attempt to de-code some of the more frequently used acronyms.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Bilinear Analog Outputs with Arc Sensors

Bilinear analog (4 to 20mA) outputs are a feature in Arc sensors but are often not well understood. This article provides a brief description of these outputs along with some examples where they can be used.
Hamilton Arc Air logo overlaid on a screen displaying pH, conductivity, and ORP sensor readings with device names and temperatures

Article

Arc Single-Use Calibration Video

See a simple example of how ArcAir software can be used to calibrate single-use DO caps with the sensor.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does temperature impact my oxygen measurement?

Yes, in a closed system, gas phase temperature is directly proportional to pressure and therefore measured oxygen content. In solution, temperature is inversely proportional to dissolved oxygen content.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Will upgrading to the VisiFerm RS485 change my calibration routine?

Your calibration routine can include verifying the relative humidity and atmospheric pressure, if using the ArcAir calibration protocol. If not using the ArcAir calibration wizard, your calibration can follow your regular calibration SOP.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the expected lifetime and when should I replace my ODO cap?

ODO cap health is process specific, with a cap quality indicator in ArcAir representing the general health of the ODO cap. ODO cap quality replacement is advised at 35%, however, some customers may replace ODO caps as part of a preventative maintenance program before reaching 35%. Click to learn more.
