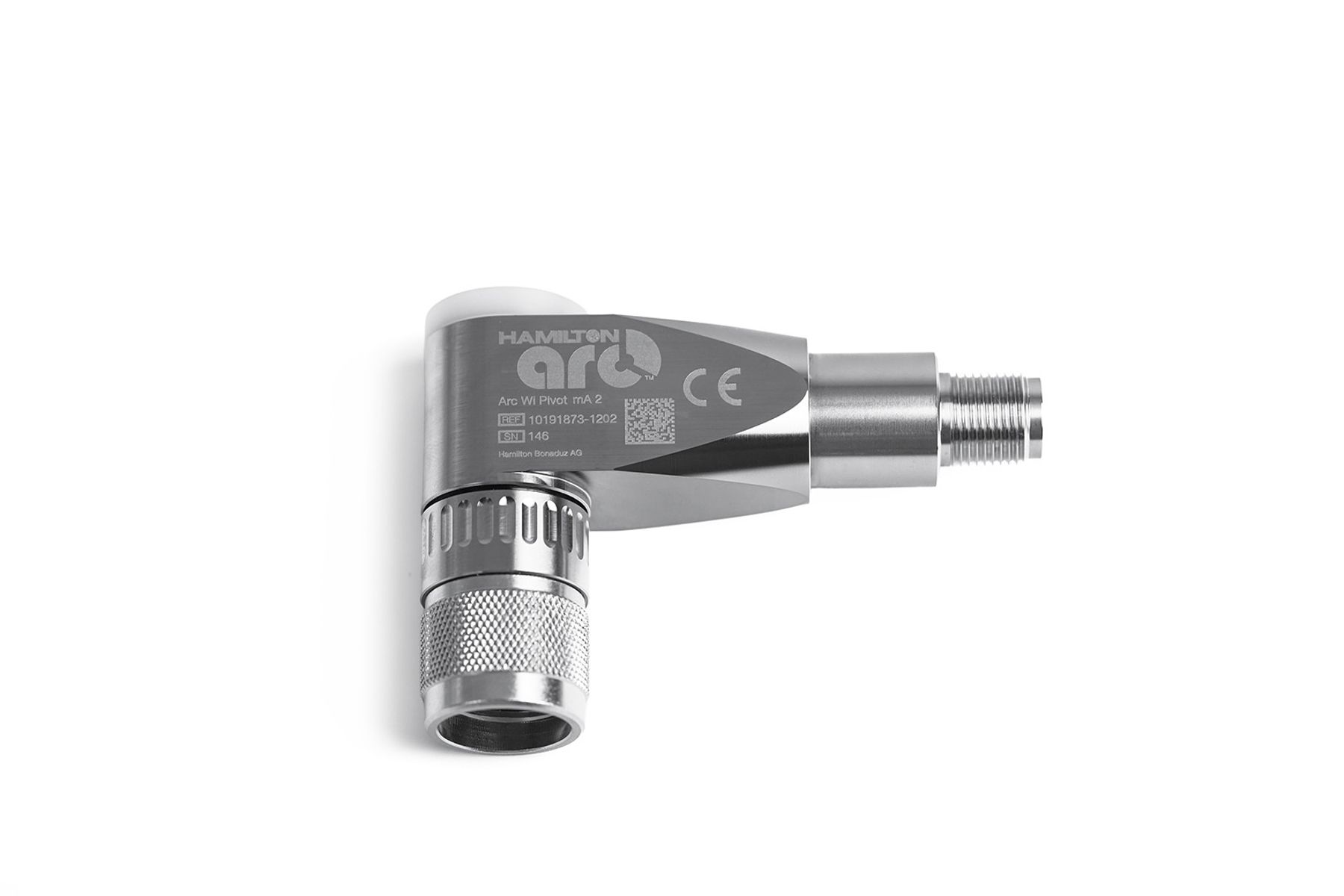

Arc Wi Pivot mA – 2

4-20 mA only

Part # 10191873‑1202

The Arc Wi Pivot mA - 2 allows you to move confidently from legacy systems to secure, connected analytics with a compact rotating design that fits into any installation space. Intended for installations requiring 4–20 mA control.

Receive More Information

Minimum: 1, Maximum: 1000

Arc Wi Pivot mA – 2 Details

Arc Wi Pivot mA 2 is an adapter for Arc sensors designed for applications where wireless communication is not desired or permitted. It provides two accurate, galvanically isolated 4–20 mA outputs for reliable signal transmission directly to the control system.

The pivotable head allows flexible cable and sensor orientation, simplifying installation, especially in tight spaces. The M12 connector ensures a secure, robust connection while delivering stable analog signals to the control system.

Adapt to any space with the compact, 300-degree rotating head design.

Bridge analog and digital systems with galvanically isolated outputs.

Maintain top-tier security with wired-only connection.

Versatile Connectivity Options

With switchable Bluetooth encryption and dual high-accuracy 4–20 mA outputs, you get the best of both worlds. The Find-Sensor function and in-field calibration tools empower your team to work more effectively and reduce process-related errors.

Physical and Strategic Flexibility

The name Pivot represents both the physical rotating head that adapts to crowded bioreactors and the strategic shift to smarter process analytics. These adapters integrate seamlessly into your existing workflow, allowing you to modernize without costly re-engineering.

Arc Wi Pivot mA – 2 Specifications

Print
Process Connection M12 8 Pole A coded Male
4 to 20 mA Current Range 3.5 to 22 mA
Analog Interface 1 and 2 4 to 20 mA, Galvanically isolated, programmable and calibratable
4 to 20 mA Accuracy ±0.1 % current value + ±0.01 mA, new calibrated @ 22°C
Digital Interface Modbus RS485 RTU
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Max. Range in Process Environment ~20 m
Power Supply 7 to 30 VCD
Regulatory Approvals see Declaration of Conformity on webpage
Operating Temperature Range 2 to 70 °C; Transport temperature range:-30 to +60°C for 72 Hrs.
Protection Rating IP67
Sensor Connectors VP8
Bluetooth None
