Arc Wi Pivot BT mA - 2

4-20 mA with Bluetooth

Part # 10191873-1212

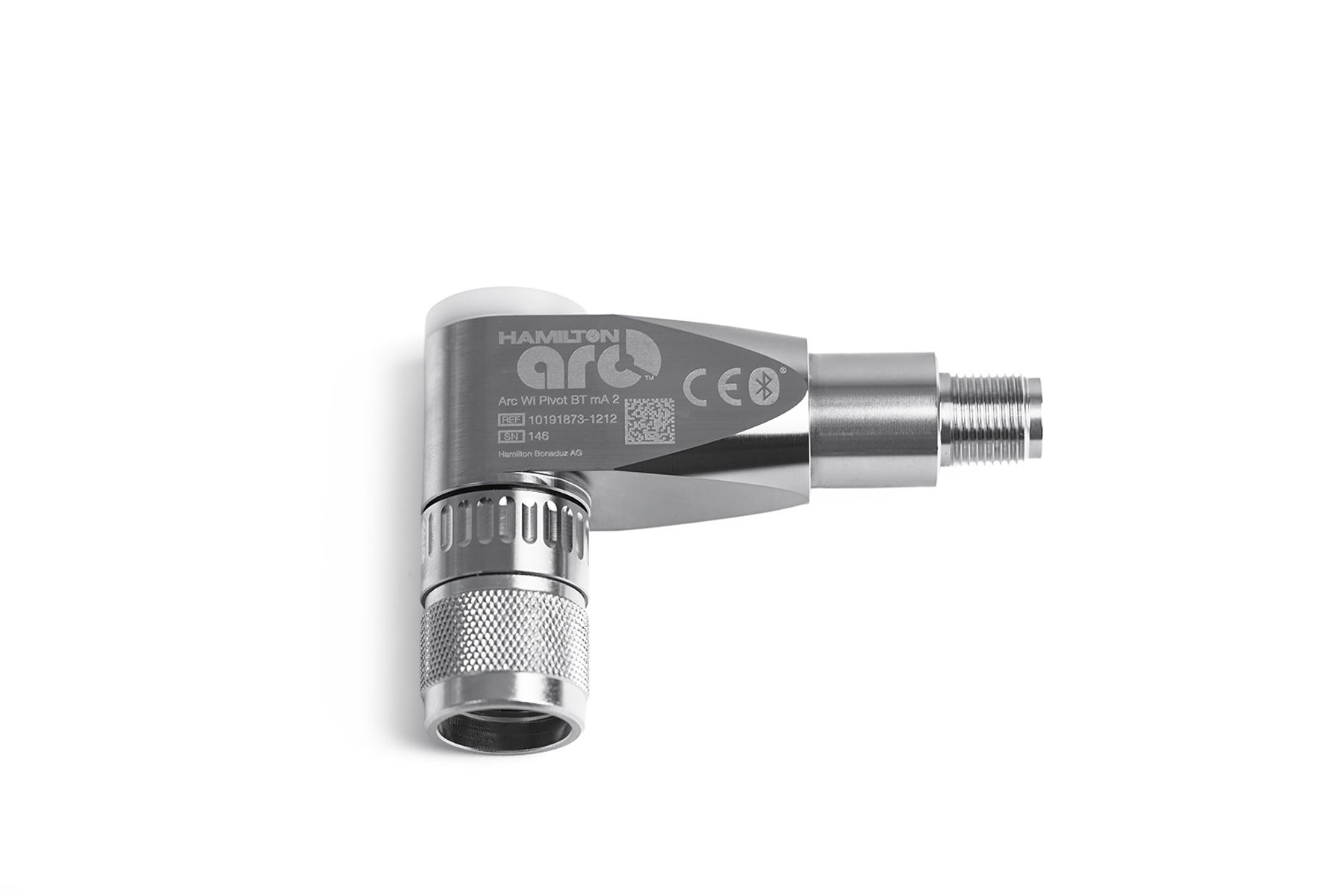

Arc Wi Pivot BT mA 2  is a compact wireless adapter for Arc sensors with integrated Bluetooth communication, enabling quick configuration, diagnostics, and troubleshooting directly in the field.

Receive More Information

Minimum: 1, Maximum: 1000

Arc Wi Pivot BT mA-2 Details

Arc Wi Pivot BT mA 2  is a wireless adapter for Arc sensors with integrated Bluetooth communication, enabling quick configuration, diagnostics, and troubleshooting directly in the field.

The pivotable head allows flexible cable and sensor orientation, simplifying installation, especially in tight spaces. The M12 connector provides two, accurate, galvanically isolated 4–20 mA outputs for reliable and secure signal transmission to the control system. This is a direct replacement of the Arc Wi BT 2G Adaptor.

Adapt to any space with the compact, 300-degree rotating head design.

Bridge analog and digital systems with galvanically isolated outputs.

Maintain top-tier security with encrypted Bluetooth 5 or wired-only variants.

Physical and Strategic Flexibility

The name Pivot represents both the physical rotating head that adapts to crowded bioreactors and the strategic shift to smarter process analytics. These adapters integrate seamlessly into your existing workflow, allowing you to modernize without costly re-engineering.

Versatile Connectivity Options

With switchable Bluetooth encryption and dual high-accuracy 4–20 mA outputs, you get the best of both worlds. The Find-Sensor function and in-field calibration tools empower your team to work more effectively and reduce process-related errors.

Arc Wi Pivot BT mA - 2 Specifications

Print
Process Connection M12 8 Pole A coded Male
4 to 20 mA Current Range 3.5 to 22 mA
Analog Interface 1 and 2 4 to 20 mA, Galvanically isolated, programmable and calibratable
4 to 20 mA Accuracy ±0.1 % current value + ±0.01 mA, new calibrated @ 22°C
Frequency Range 2.4 GHz (IEEE 802.15.1 )
Transmitting Power +8 dBm
Digital Interface Modbus RS485 RTU
Bluetooth 5.4
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Max. Range in Process Environment ~20 m
Power Supply 7 to 30 VCD
Regulatory Approvals see Declaration of Conformity on webpage
Operating Temperature Range 2 to 70 °C; Transport temperature range:-30 to +60°C for 72 Hrs.
Protection Rating IP67
Sensor Connectors VP8
Bluetooth On / Off
