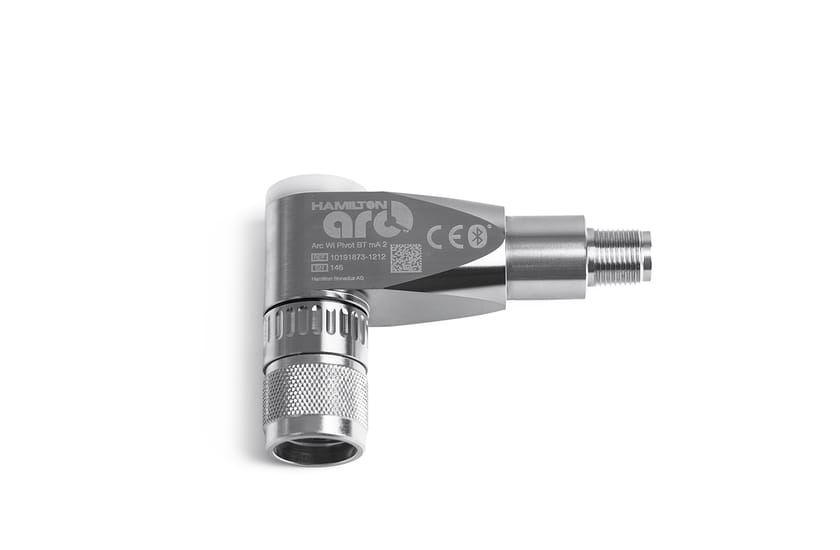

Arc Wi Pivot BT mA 2 is a wireless adapter for Arc sensors with integrated Bluetooth communication, enabling quick configuration, diagnostics, and troubleshooting directly in the field.
Product Specifications
| Process Connection |
Process Connection
M12 8 Pole A coded Male
|
|---|---|
| 4 to 20 mA Current Range |
4 to 20 mA Current Range
3.5 to 22 mA
|
| Analog Interface 1 and 2 |
Analog Interface 1 and 2
4 to 20 mA, Galvanically isolated, programmable and calibratable
|
| 4 to 20 mA Accuracy |
4 to 20 mA Accuracy
±0.1 % current value + ±0.01 mA, new calibrated @ 22°C
|
| Frequency Range |
Frequency Range
2.4 GHz (IEEE 802.15.1 )
|
| Transmitting Power |
Transmitting Power
+8 dBm
|
| Digital Interface |
Digital Interface
Modbus RS485 RTU
Bluetooth 5.4 |
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Max. Range in Process Environment |
Max. Range in Process Environment
~20 m
|
| Power Supply |
Power Supply
7 to 30 VCD
|
| Regulatory Approvals |
Regulatory Approvals
see Declaration of Conformity on webpage
|
| Operating Temperature Range |
Operating Temperature Range
2 to 70 °C; Transport temperature range:-30 to +60°C for 72 Hrs.
|
| Protection Rating |
Protection Rating
IP67
|
| Sensor Connectors |
Sensor Connectors
VP8
|
| Bluetooth |
Bluetooth
On / Off
|
Spec. Version
