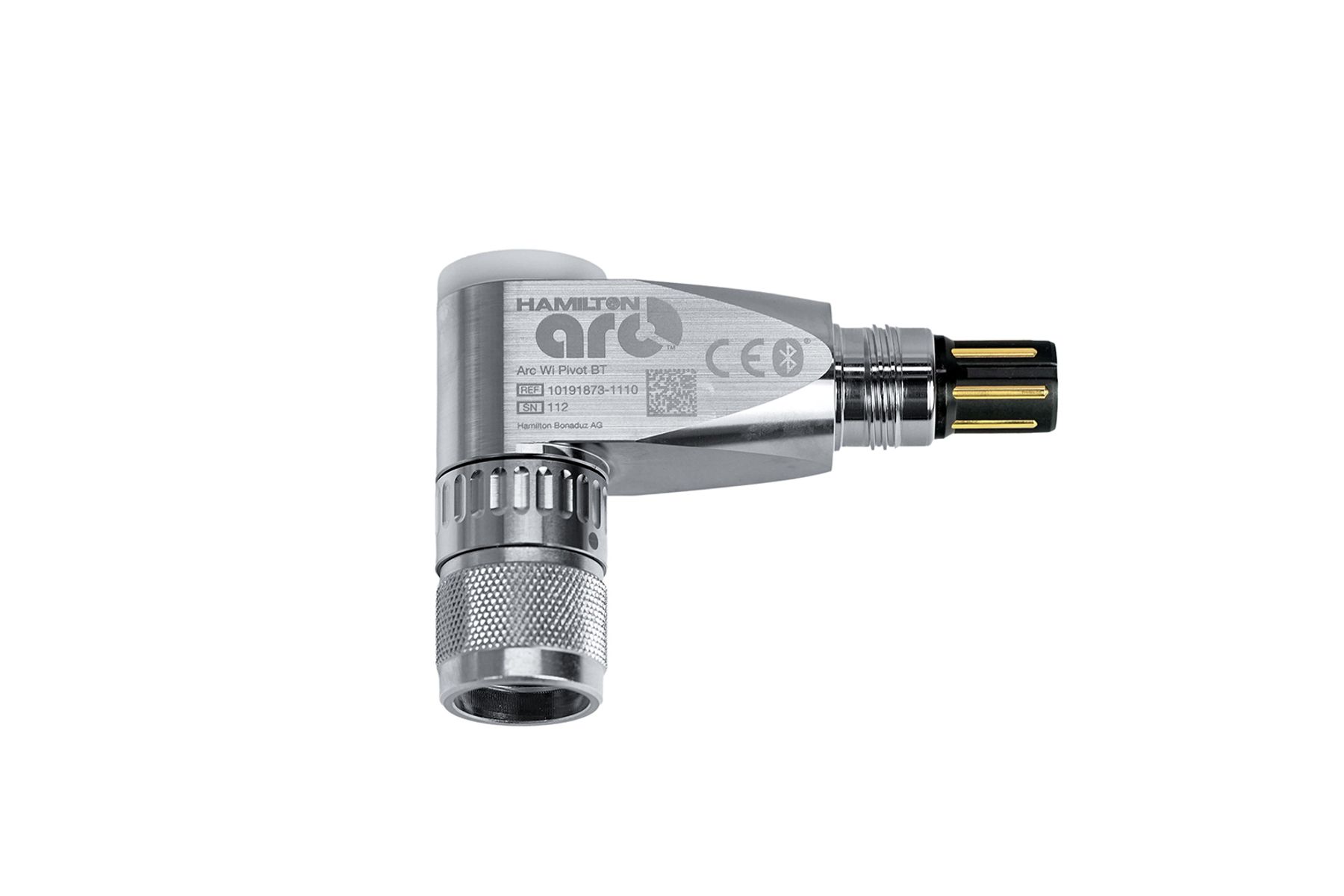

Arc Wi Pivot BT

Configurator

Part # 10191873-1110

Wireless adapter for Arc sensors with integrated Bluetooth and pivotable head, enabling convenient configuration and troubleshooting.

Receive More Information

Minimum: 1, Maximum: 1000

Arc Wi Pivot BT Details

Arc Wi Pivot BT is a wireless adapter for Arc sensors with integrated Bluetooth communication, enabling convenient configuration and troubleshooting. The pivotable head allows flexible cable and sensor orientation, making installation easier, especially in tight spaces. Sensor signals pass directly through to the control system, which makes the adapter particularly useful with VisifermRS485  ECS installations.

With the standard VP8 connector, Arc Wi Pivot BT can be quickly added to any connected Arc sensor, giving operators a simple way to access, configure, and troubleshoot sensors in the field. This is a direct replacement of the Arc Wi BT 1G Adaptor.

Adapt to any space with the compact, 300-degree rotating head design.

Bridge analog and digital systems with galvanically isolated outputs.

Maintain top-tier security with encrypted Bluetooth 5 or wired-only variants.

Versatile Connectivity Options

With switchable Bluetooth encryption and dual high-accuracy 4–20 mA outputs, you get the best of both worlds. The Find-Sensor function and in-field calibration tools empower your team to work more effectively and reduce process-related errors.

Physical and Strategic Flexibility

The name Pivot represents both the physical rotating head that adapts to crowded bioreactors and the strategic shift to smarter process analytics. These adapters integrate seamlessly into your existing workflow, allowing you to modernize without costly re-engineering.

Arc Wi Pivot BT Specifications

Print
Process Connection VP8
Analog Interface 1 and 2 Passed through from sensor
Frequency Range 2.4 GHz (IEEE 802.15.1 )
Transmitting Power +8 dBm
Digital Interface Modbus RS485 RTU
Bluetooth 5.4
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Max. Range in Process Environment ~ 20 m
Power Supply 7 to 30 VCD
Regulatory Approvals see Declaration of Conformity on webpage
Operating Temperature Range 2 to 70 °C; Transport temperature range:-30 to +60°C for 72 Hrs.
Protection Rating IP67
Sensor Connectors VP8
Bluetooth On
