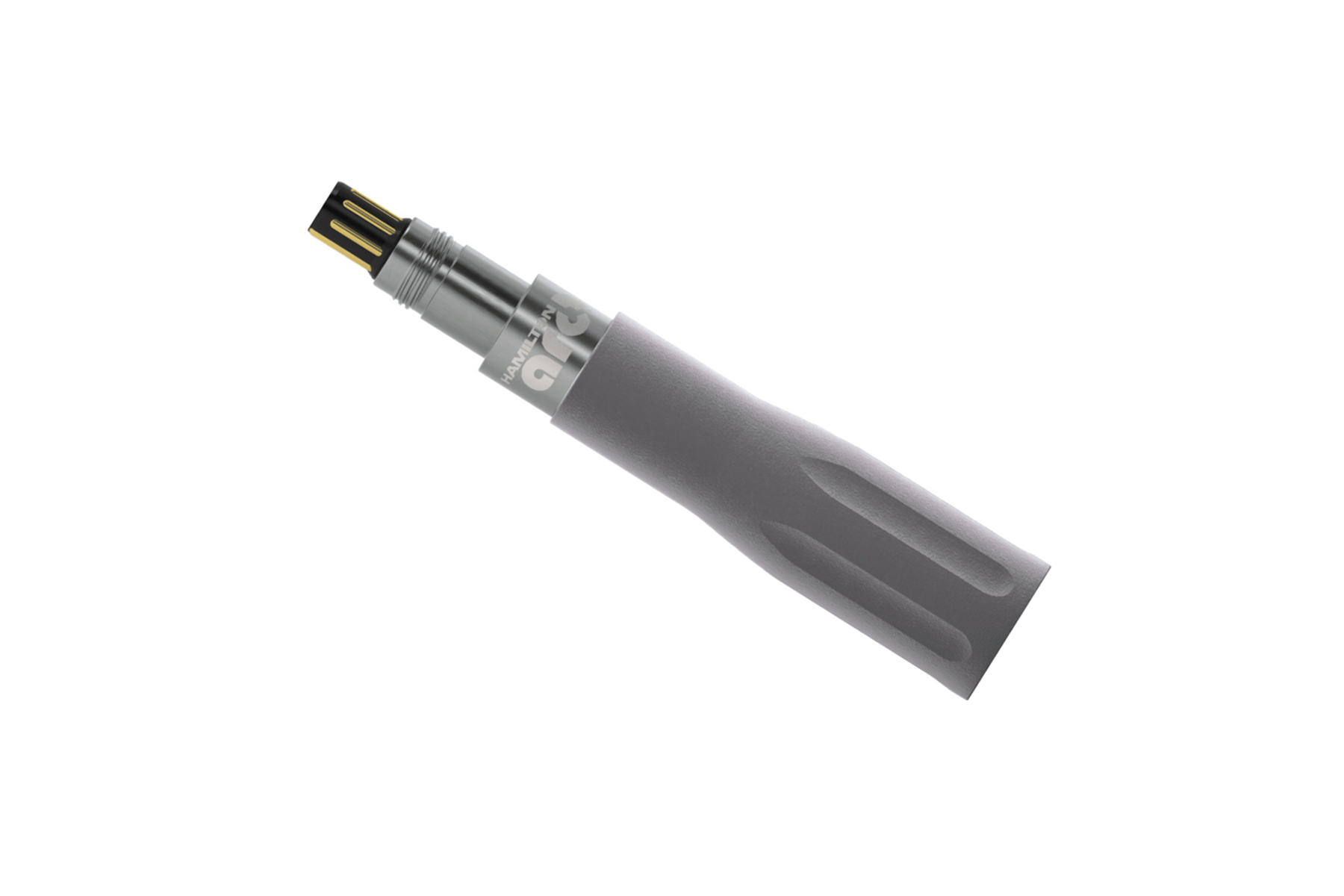

Arc Module Cond-P SU

Part # 10071707

The Arc Module Cond-P, combined with the Conducell-P SU, offers a streamlined solution for conductivity measurements in single-use applications.

The Arc Module, together with the Conducell-P SU sensor element, provides two standard analog (4-20 mA) interfaces and a digital Modbus interface. They do not require additional equipment such as amplifiers or transmitters.

Receive More Information

Minimum: 1, Maximum: 1000

Arc Module Cond-P SU Details

The Arc Module Cond-P SU, paired with the Conducell-P SU sensor element, provides a reliable and easy-to-use solution for conductivity measurement in single-use bioprocessing. Designed specifically for integration with single-use bioreactor bags, this system eliminates the need for separate transmitters or amplifiers.

The reusable outer module connects seamlessly to the pre-installed sensor patch, streamlining setup and reducing contamination risk. It supports flexible integration into various control systems with dual analog (4–20 mA) outputs and a digital Modbus interface. This plug-and-play solution ensures accurate, real-time monitoring with minimal effort, making it ideal for GMP-compliant and scalable bioprocessing environments.

Common applications Pharma & Biopharma, Bioprocess Downstream, Single-Use Bioprocessing, Bioprocess Upstream, Agri-Food and Beverage

Enable seamless single-use integration with reusable sensor modules.

Simplify setup with plug-and-play conductivity measurement.

 Eliminate extra hardware using built-in analog and digital outputs.

Single-Use Compatibility

  • Designed specifically for use with Hamilton’s Conducell-P SU sensor patches, the Arc Module Cond-P SU enables efficient and sterile conductivity measurement in single-use bioprocesses.
  • Reusable outer module connects to pre-installed sensor patch
  • No need to breach the bioreactor system for setup
  • Reduces risk of contamination and supports GMP compliance

Built-in Analog & Digital Interfaces

  • The Arc Module offers dual analog (4–20 mA) outputs and a Modbus digital interface, eliminating the need for external transmitters or amplifiers.
  • Flexible integration with existing control systems
  • Reduces equipment complexity and wiring needs
  • Real-time digital communication for better process control

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton sensors enhance safety, efficiency, and reliability in chemical processes.

    Hamilton sensors and retractable fittings are not only essential for monitoring and controlling our chemical processes, but also make preventive maintenance and fault diagnosis much easier. The robustness and durability of the products mean fewer emergency call-outs and greater overall plant effectiveness. Overall, the sensors make a significant contribution to the safety, efficiency and reliability of our operating processes and help us to meet and exceed our high standards.

    Dimitri Brumm
    EMR Operating Engineer - Cassella Chemiepark

Arc Module Cond-P SU Specifications

Print
Electrical Connector VP8
Parameter Conductivity (4-Pole)
Sensor Output Arc: Modbus
Measuring Range 100 µS/cm to 300 mS/cm
Accuracy at 25 °C ± 5 % at 100 µS/cm to 100 mS/cm
± 8 % at 100 mS/cm to 200 mS/cm
± 10 % at 200 mS/cm to 300 mS/cm
Temperature Sensor Yes (on sensor element: Conducell-P SU)
Configurable Values Conductivity, Temperature
Digital Interface RS485 Modbus (max. 32 addresses)
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Operating Voltage 7 to 30 VDC max. 150 mW
Serial Number Yes
Certificate Yes
Autoclavable No
Steam Sterilizable No
CIP No
Gamma Irradiatable No
X-Ray irradiatable No
Operating Temperature Range 0 to 60 °C
Protection Rating IP64 (when connected to the sensor element: Conducell-P SU)
