Polilyte Plus ORP Arc

The maintenance-free Polilyte Plus ORP Arc sensor ensures precision and reliability in diverse applications, delivering accurate measurements in various solutions.

Receive More Information

  • ORP Sensor Polilyte Plus Arc

Polilyte Plus ORP Arc Details

The Polilyte Plus ORP Arc is a sensor specifically designed for demanding applications in the chemical and petrochemical industries. Building on Hamilton's proven ORP sensor technology, Polilyte Plus ORP Arc sensors provide reliable and reproducible ORP measurements in challenging process environments, including highly alkaline solutions and low-conductivity samples.

The Polilyte Plus ORP Arc sensor utilizes Hamilton's maintenance-free Everef-L reference system, combined with two Single Pore junctions, to effectively eliminate common liquid junction problems such as clogging. This design enhances measurement stability, minimizes maintenance requirements, and helps extend sensor service life under demanding operating conditions.

Designed for continuous ORP monitoring in demanding industrial applications, Polilyte Plus ORP Arc combines robust construction, reliable measurement performance, and low-maintenance operation, making it a dependable solution for long-term process control. The maintenance-free design reduces maintenance efforts and process downtime while ensuring reliable ORP measurements throughout the sensor lifetime.

Common applications Water, Energy, & Environment, Water and Wastewater, Chemical Processes, Petrochemicals, Oil & Gas Processing

Low maintenance design

 Elimination of clogging with two single pore junctions

 Good performance in highly alkaline solutions and in samples with low conductivity

Built-in Arc Intelligence

Integrated electronics enable direct digital communication with control systems—no transmitter required.

Maintenance-Free Operation

Reduces upkeep and downtime with a robust, self-contained design ideal for continuous use.

pH ORP measurement in water production
Use case

How It's Used

The Polilyte Plus ORP sensor ensures precise UPW quality with real-time monitoring and seamless digital integration.

References

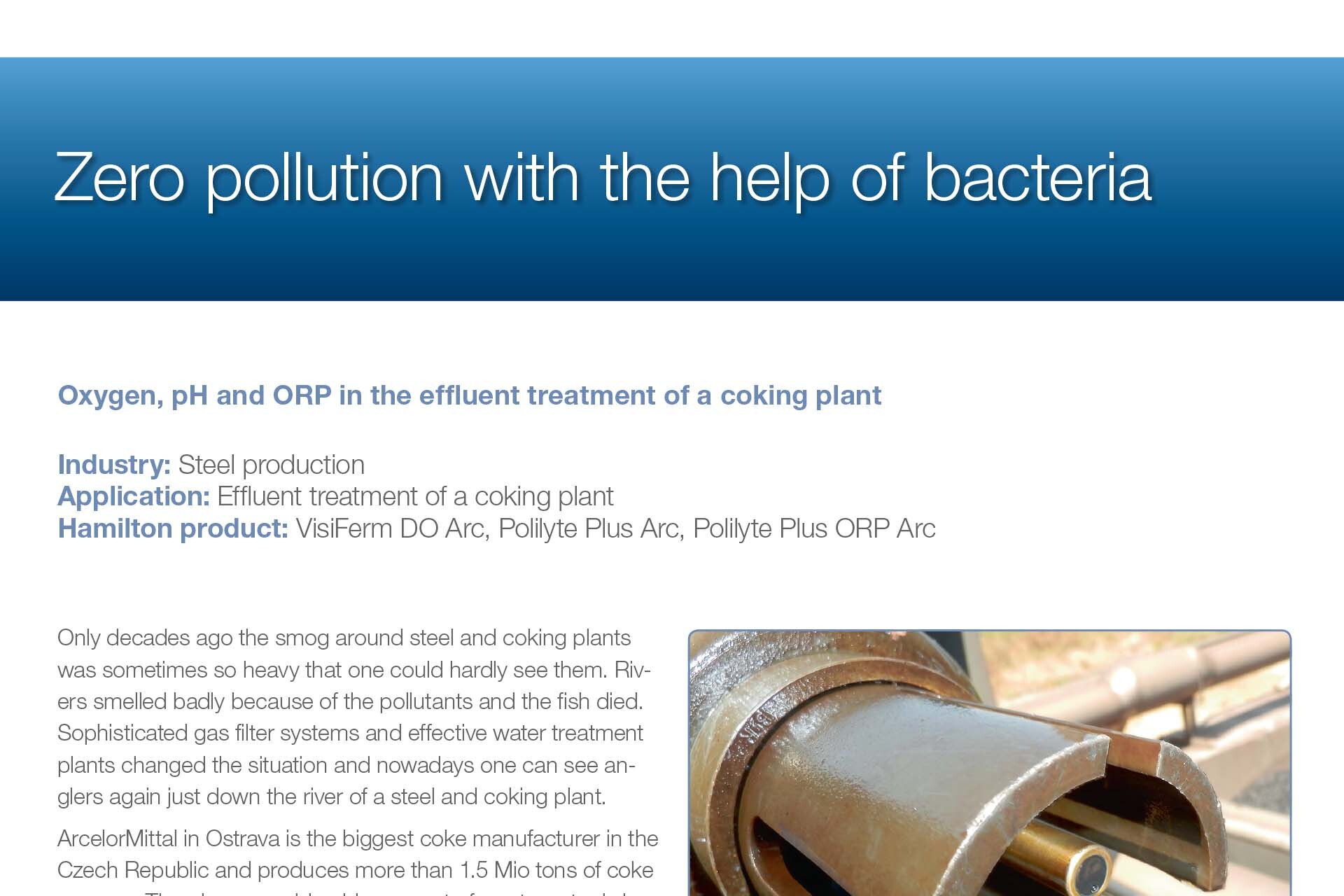

Close-up of a corroded metal pipe fitting or sensor housing at an industrial facility

Application Note - Arc DO, pH, ORP in wastewater treatment in coking plant

ArcelorMittal, the world's largest steel manufacturer, uses…

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • The electrodes have proven themselves very well in use, they are very reliable and can be changed quickly.

    The Hamilton Polylite Plus H MS 225 pH electrodes have been used in wet flue gas scrubbing in combustion lines 1 and 2 for around 10 years. The electrodes have proven themselves very well in use, they are very reliable and can be changed quickly thanks to
    the Memosens technology. The service life is approx. 1-1.5 years per electrode.

    Thomas Zoller
    Klärwerk Karlsruhe

Polilyte Plus ORP Arc Specifications

Print
Process Connection PG13,5
Wetted Parts Platinum
GΙass
FKM (Fluorocarbon Elastomer)
Electrical Connector VP8
Measuring Range -1500 mV to +1500 mV
Electrolyte Polisolve Plus
ORP Element Pt wire
Membrane Shape Spherical
Diaphragm Single Pore
Number of Diaphragms 2
Reference System Hamilton Everef-L
Liquid Earth No
Temperature Sensor NTC 22 kOhm
Configurable Values ORP: mV; Temperature: °C, K, °F
Analog Interface 1 4 to 20 mA, programmable
Analog Interface 2 4 to 20 mA for Temp., programmable
Analog Interface 1 and 2 Galvanically not isolated; pulse width modulation 3.5 kHz
Digital Interface RS485 Modbus (max. 32 addresses)
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Operating Voltage 7 to 30 VDC max. 150 mW
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured value in ORP buffer +475 mV
ATEX Approval No
IECEx Approval No
Diameter 12 mm
Autoclavable Yes, max. Temperature 130 °C
Steam Sterilizable Yes, max. Temperature 140 °C
CIP No
Operating Temperature Range Analog interface: 0 to 110 °C; Digital interface: 0 to 140 °C
Sample min Conductivity 2 µS/cm
Pressure Range bar g 0 to 16 bar (100 °C), 0 to 10 bar (130 °C), 0 to 3 bar (140 °C)

Compatibility with Hamilton Devices

Explore the limitless possibilities of Hamilton products.

Polilyte Plus ORP Arc Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Firmware Updates for Arc Products

Hamilton Arc and VisiFerm ECS sensors rely upon internal firmware for their operation. Periodic firmware updates ensure that the sensor has the latest features and fixes any pre-existing bugs that may exist.
Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Arc Sensors - Signal Averaging

Certain applications may introduce conditions that create fluctuating or "noisy" measurements. The noisy measurement can make process control challenging. One way to improve signal stability is to adjust the moving average setting using ArcAir software.
Hamilton Arc Air manual

Article

ArcAir 3.11 Downloads

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is a polymer-filled sensor and why would I choose it?

Polymer-filled sensors use solid (or nearly solid) electrolyte. This design keeps electrolyte from flowing out of the sensor and process liquid from poisoning or clogging the sensor. Polymer filled sensors are a great choice for industrial applications with strong chemicals, particulates and elevated pressures.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is ORP and why would I want to use it?

ORP is a measurement of the overall level of oxidizing or reducing substances present in the liquid. ORP is expresses as a millivolt (mV) signal. Positive voltage indicates an excess of oxidizing agents in the liquid. Conversely, negative voltage indicates an excess of reducing agents in the liquid. ORP is not specific to a single ion within the liquid but is often used to measure the status of a chemical reaction.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How do I clean an ORP sensor?

The platinum band around the tip of the ORP sensor can oxidize over time. Light scrubbing with a mild abrasive such as toothpaste will remove the oxidization. Rinse with potable water and store in storage solution prior to usage
