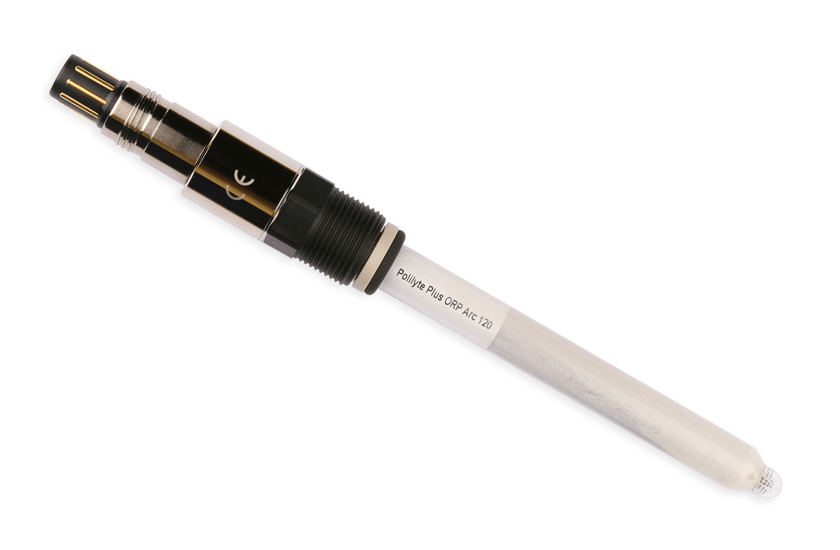

The maintenance-free Polilyte Plus ORP Arc sensor ensures precision and reliability in diverse applications, delivering accurate measurements in various solutions.
Product Specifications
| Process Connection |
Process Connection
PG13,5
|
|---|---|
| Wetted Parts |
Wetted Parts
Platinum
GΙass FKM (Fluorocarbon Elastomer) |
| Electrical Connector |
Electrical Connector
VP8
|
| Measuring Range |
Measuring Range
-1500 mV to +1500 mV
|
| Electrolyte |
Electrolyte
Polisolve Plus
|
| ORP Element |
ORP Element
Pt wire
|
| Membrane Shape |
Membrane Shape
Spherical
|
| Diaphragm |
Diaphragm
Single Pore
|
| Number of Diaphragms |
Number of Diaphragms
2
|
| Reference System |
Reference System
Hamilton Everef-L
|
| Liquid Earth |
Liquid Earth
No
|
| Temperature Sensor |
Temperature Sensor
NTC 22 kOhm
|
| Configurable Values |
Configurable Values
ORP: mV; Temperature: °C, K, °F
|
| Analog Interface 1 |
Analog Interface 1
4 to 20 mA, programmable
|
| Analog Interface 2 |
Analog Interface 2
4 to 20 mA for Temp., programmable
|
| Analog Interface 1 and 2 |
Analog Interface 1 and 2
Galvanically not isolated; pulse width modulation 3.5 kHz
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Operating Voltage |
Operating Voltage
7 to 30 VDC max. 150 mW
|
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
Yes, with measured value in ORP buffer +475 mV
|
| ATEX Approval |
ATEX Approval
No
|
| IECEx Approval |
IECEx Approval
No
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes, max. Temperature 130 °C
|
| Steam Sterilizable |
Steam Sterilizable
Yes, max. Temperature 140 °C
|
| CIP |
CIP
No
|
| Operating Temperature Range |
Operating Temperature Range
Analog interface: 0 to 110 °C; Digital interface: 0 to 140 °C
|
| Sample min Conductivity |
Sample min Conductivity
2 µS/cm
|
| Pressure Range bar g |
Pressure Range bar g
0 to 16 bar (100 °C), 0 to 10 bar (130 °C), 0 to 3 bar (140 °C)
|
Spec. Version B
