pH Port

Part # 243462

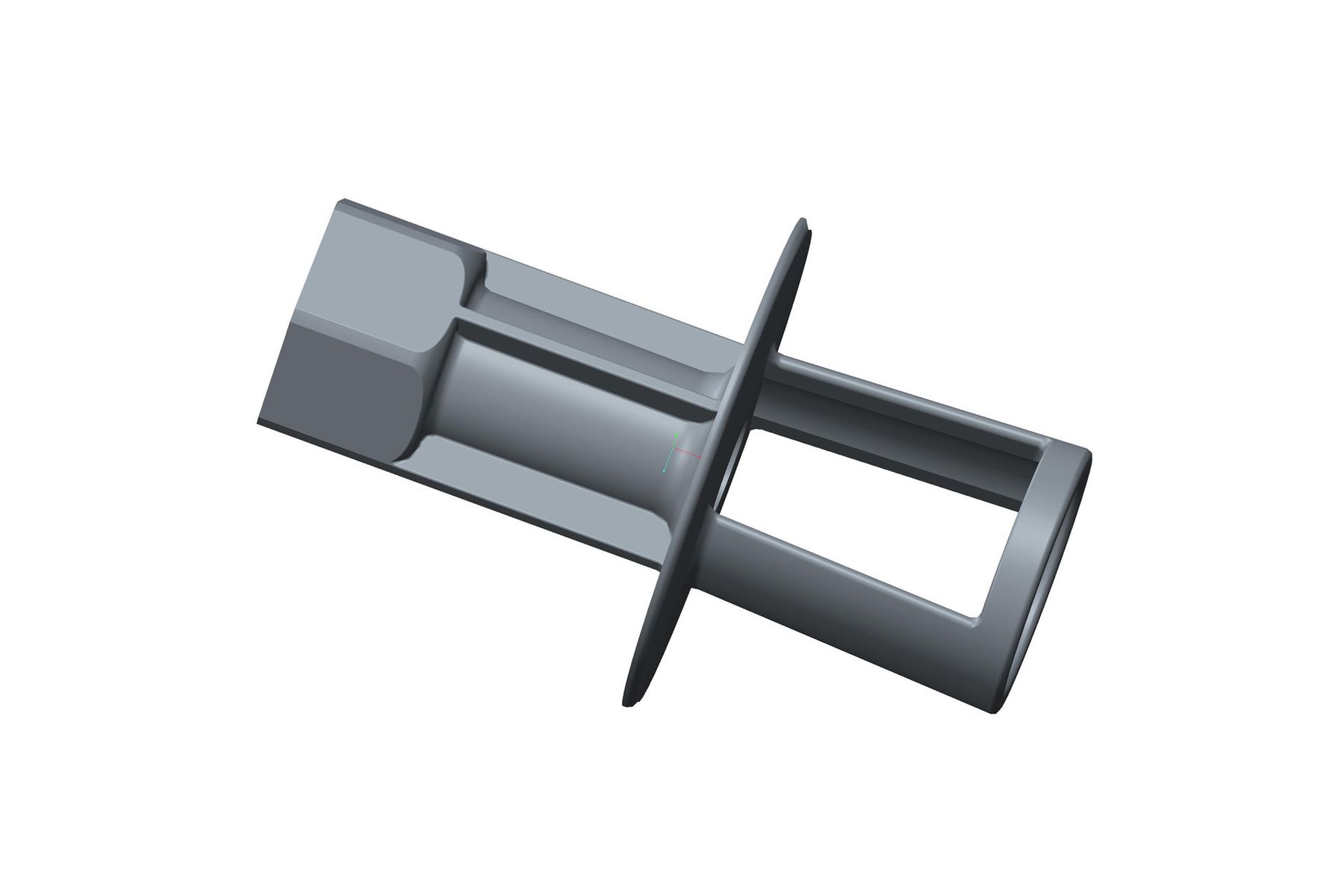

The Hamilton pH Port is a single-use, weldable high-density polyethylene connection designed specifically for the OneFerm pH 70 mm sensor. It enables secure and reliable sensor integration into single-use bags.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

pH Port Details

The Hamilton pH Port is a single-use, weldable high-density polyethylene connector designed specifically for the OneFerm pH 70 mm sensor. It enables secure and reliable sensor integration into single-use bags.

Ideal for biopharmaceutical GMP  processes, it is available to single-use equipment producers for seamless integration into their single-use bags.

Enables safe and reliable integration of the OneFerm pH sensor into a single-use bag.

Protects the OneFerm pH sensor during storage and in use.

Ready-to-use, single-use design that is gamma-sterilizable.

Weldable high-density polyethylene construction

The pH Port is designed for welding into single-use bags and enables safe and reliable sensor connection. Additionally,  it enables direct inline use of the OneFerm pH sensor in single-use bags, while minimizing the risk of leakage  and  contamination.

Single-Use, GMP-Compliant Design

The pH port is compatible with gamma sterilization and  comes with full GMP documentation. This makes it perfect for all applications in sterile, GMP environments.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in troubleshooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

pH Port Specifications

Print
Wetted Parts HDPE (High Density Polyethylene)
Process Connection PG13,5
Biocompatibility Yes, see material specification (upon request)
Shelf Life 12 months prior gamma irradiation. 18 months after gamma irradiation
Autoclavable No
Steam Sterilizable No
CIP No
Gamma Irradiatable Yes, up to 50 kGy
Operating Temperature Range 4 to 50 °C
Pressure Range bar g 0 to 2 bar
Torque 1.5 Nm (of the OneFerm pH sensor)
