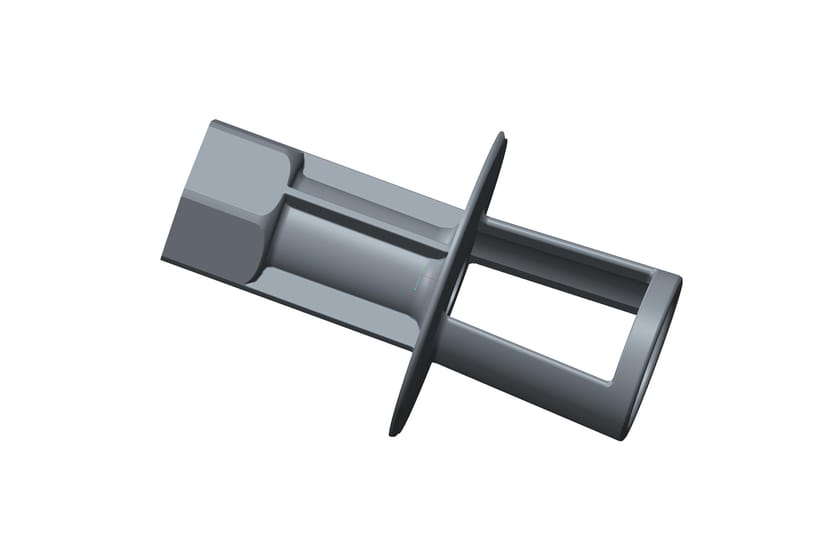

The Hamilton pH Port is a single-use (SU) weldable high-density polyethylene connection for the OneFerm pH 70 mm sensor. Ideal for aseptic, single-use bags.
Product Specifications
| Wetted Parts |
Wetted Parts
HDPE (High Density Polyethylene)
|
|---|---|
| Process Connection |
Process Connection
PG13,5
|
| Biocompatibility |
Biocompatibility
Yes, see material specification (upon request)
|
| Shelf Life |
Shelf Life
12 months prior gamma irradiation. 18 months after gamma irradiation
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
No
|
| CIP |
CIP
No
|
| Gamma Irradiatable |
Gamma Irradiatable
Yes, up to 50 kGy
|
| Operating Temperature Range |
Operating Temperature Range
4 to 50 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 2 bar
|
| Torque |
Torque
1.5 Nm (of the OneFerm pH sensor)
|
Spec. Version B
