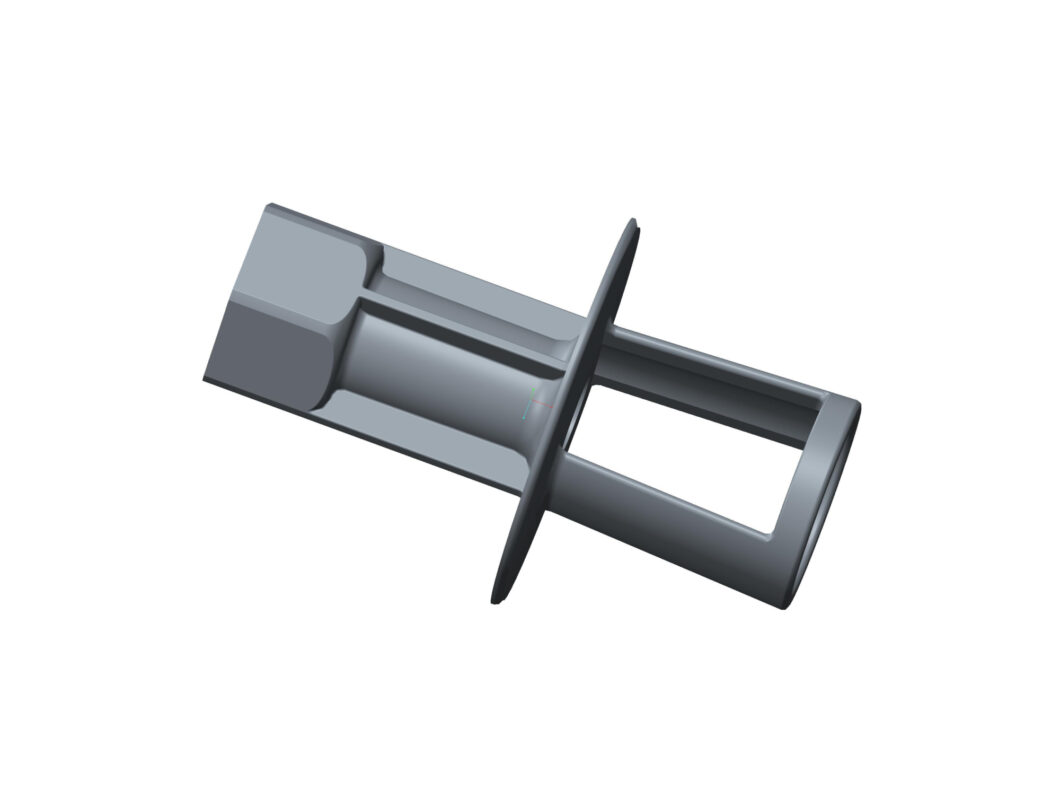

pH Port
The Hamilton pH Port is a single use (SU) high density polyethylene connector for the OneFerm pH 70 mm sensor. It can be integrated into the single use container by welding (Weldability needs to be verified) for a single application of port and sensor. The port fitting is available for integrators such as bag manufacturers.
Found in these product categories:
Part/REF # 243462
-
(In Stock)(In Stock)Stock status is updated daily. For real-time status, please contact us.
Specifications
| Sensor Family |
Sensor Family
OneFerm
|
|---|---|
| Parameter |
Parameter
pH
|
| Process Connection |
Process Connection
PG13,5
|
| Wetted Parts |
Wetted Parts
HDPE (High Density Polyethylene)
|
| Biocompatibility |
Biocompatibility
Yes, see material specification (upon request)
|
| Shelf Life |
Shelf Life
12 months prior gamma irradiation. 18 months after gamma irradiation
|
| Autoclavable |
Autoclavable
No
|
Additional specifications
| CIP |
CIP
No
|
|---|---|
| Steam Sterilizable |
Steam Sterilizable
No
|
| Gamma Irradiatable |
Gamma Irradiatable
Yes, up to 50 kGy
|
| Operating Temperature Range |
Operating Temperature Range
4 to 50 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 2 bar
|
| Torque |
Torque
1.5 Nm (of the OneFerm pH sensor)
|
