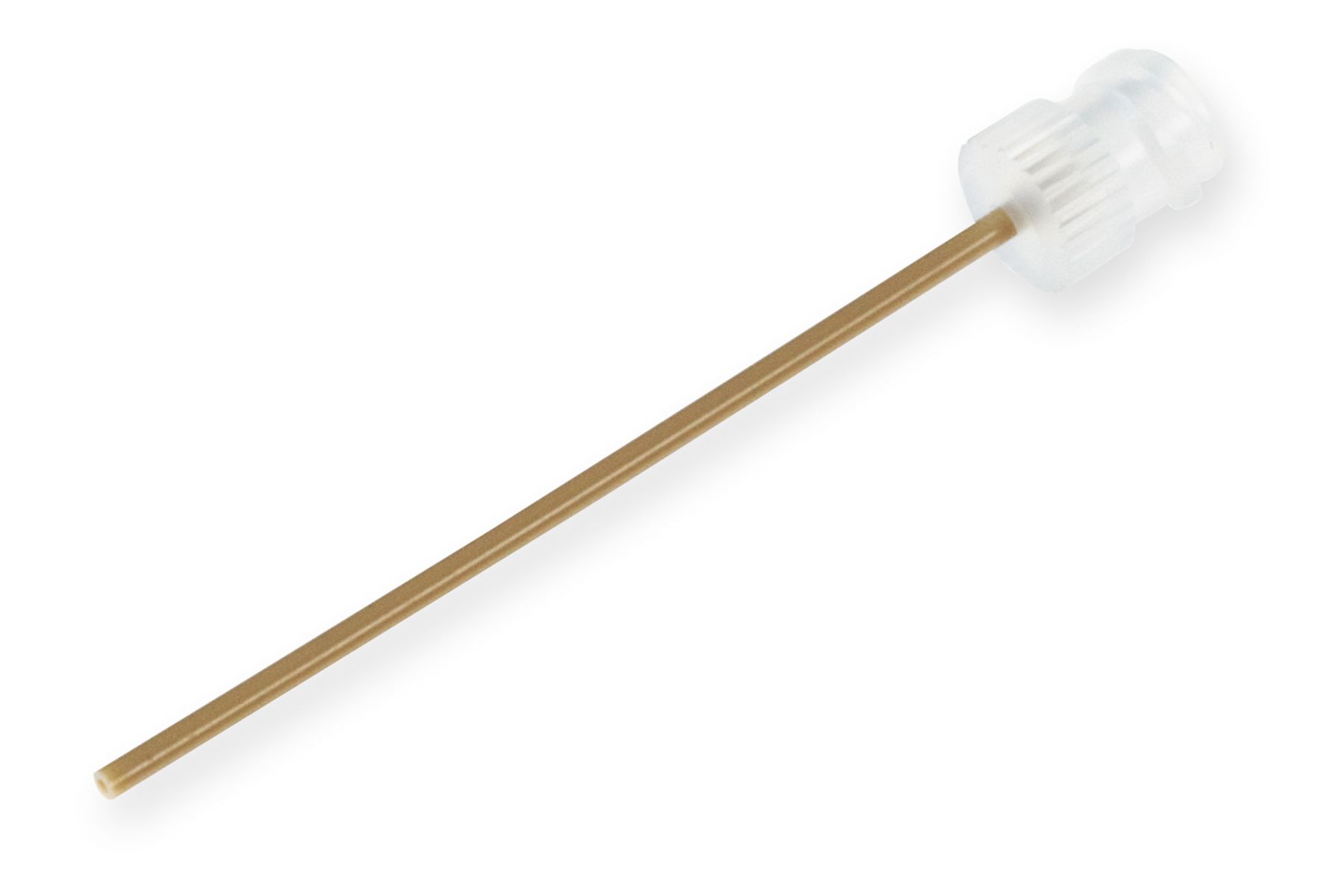

1.57 mm OD / 0.76 mm ID, PEEK, Kel-F Hub Needle (KF), PN: 8649-01

51 mm, Point Style 3: Blunt, 6 per Pack

Part # 8649-01

This Hamilton PEEK Needle (PN: 8649-01) is engineered from high-quality HPLC-grade PEEK tubing for applications requiring non-metallic, chemically resistant components. The Kel-F hub ensures compatibility with Luer Tip and Luer Lock syringes, offering a secure and leak-resistant connection. This needle is well-suited for specialized chromatography, corrosive chemical handling, and applications where metallic contamination must be avoided.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

1.57 mm OD / 0.76 mm ID, PEEK, Kel-F Hub Needle (KF), PN: 8649-01 Details

The PEEK Needle (PN: 8649-01) is a specialty blunt-point needle designed for use in highly sensitive or reactive applications. Fabricated from robust HPLC-grade PEEK tubing with a 1.57 mm outer diameter and 0.76 mm inner diameter, this needle provides durability without the reactivity of metals. The chemically resistant Kel-F hub connects securely to Luer Tip and Luer Lock syringes, as well as male Luer fittings. Each pack contains six PEEK needles for efficient integration into lab workflows.

Non-metallic PEEK construction ensures compatibility with sensitive or corrosive reagents

Chemically resistant Kel-F hub ensures leak-free Luer-style connections

Point Style 3 blunt tip delivers clean, non-penetrative liquid dispensing

Chemically Inert PEEK Tubing

  • Made from HPLC-grade PEEK tubing, this needle resists interaction with reactive substances, making it ideal for applications involving aggressive solvents or sample purity concerns

Secure Fit and Smooth Handling

  • Equipped with a Kel-F hub, this needle connects securely to Luer Tip, Luer Lock, and male Luer syringes
  • The blunt Point Style 3 tip ensures clean, non-penetrative dispensing for controlled and consistent fluid handling
Scientific Citations

1.57 mm OD / 0.76 mm ID, PEEK, Kel-F Hub Needle (KF), PN: 8649-01 Specifications

Print
Gauge 0.062 inch OD/ 0.030 inch ID
Point Style 3: Blunt
Needle Length 2.00 inches (50.8 mm)
Autoclavable Yes
Gas Sterilizable Yes
Sales Quantity 6 needles per pack
Hub Kel-F
Needle Material PEEK
