SyringeGuard Kit

Syringe Storage and Management System

Part # 6613512-01-KIT

Streamline your laboratory workflow with the SyringeGuard Kit (PN: 6613512-01-KIT), a scalable solution for the storage, organization, and protection of Hamilton syringes and needles. This kit includes a clear storage case and two SyringeGuards, creating a stackable system that improves inventory tracking, maximizes storage efficiency, and securely holds up to 12 syringes and needles.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

SyringeGuard Kit Details

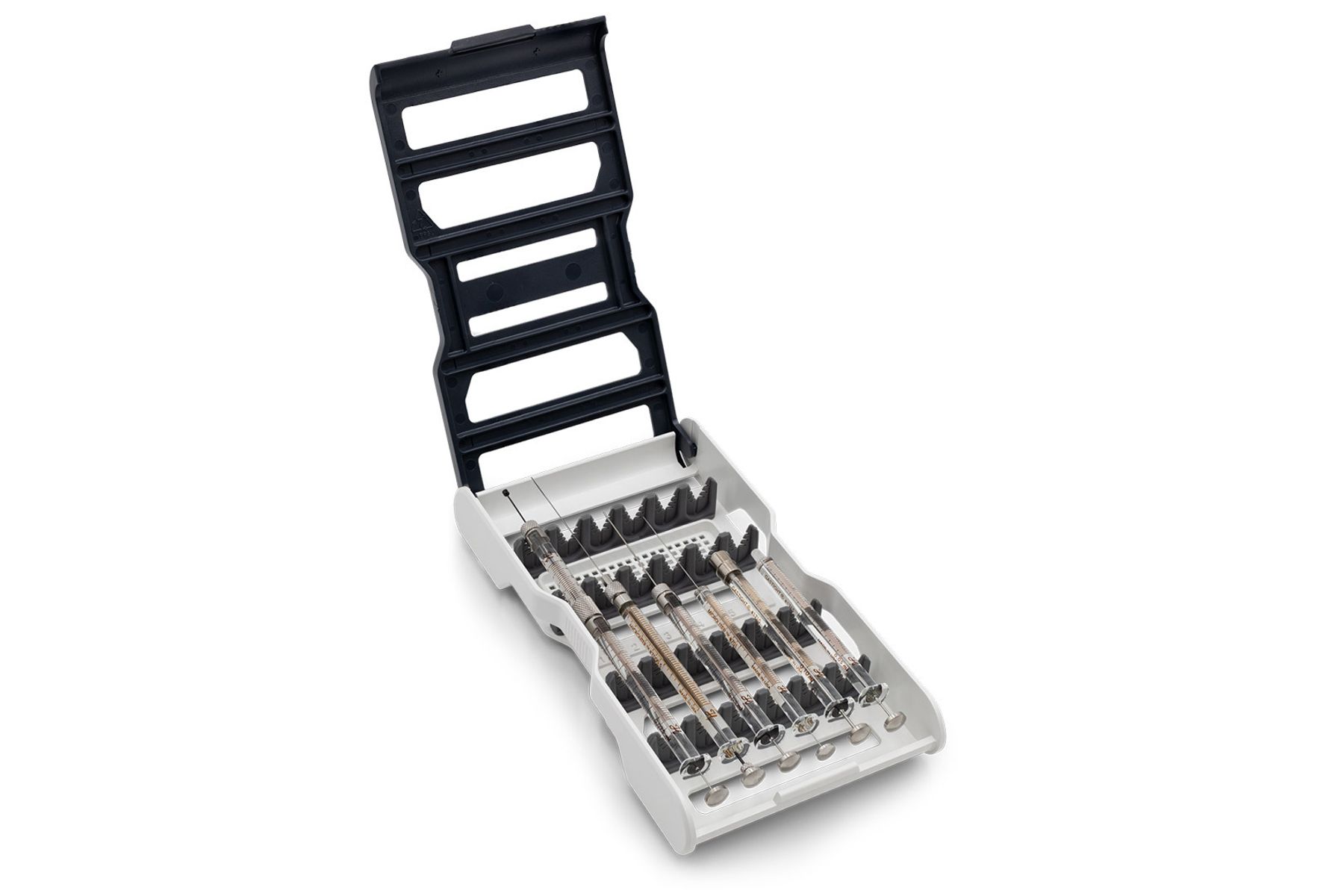

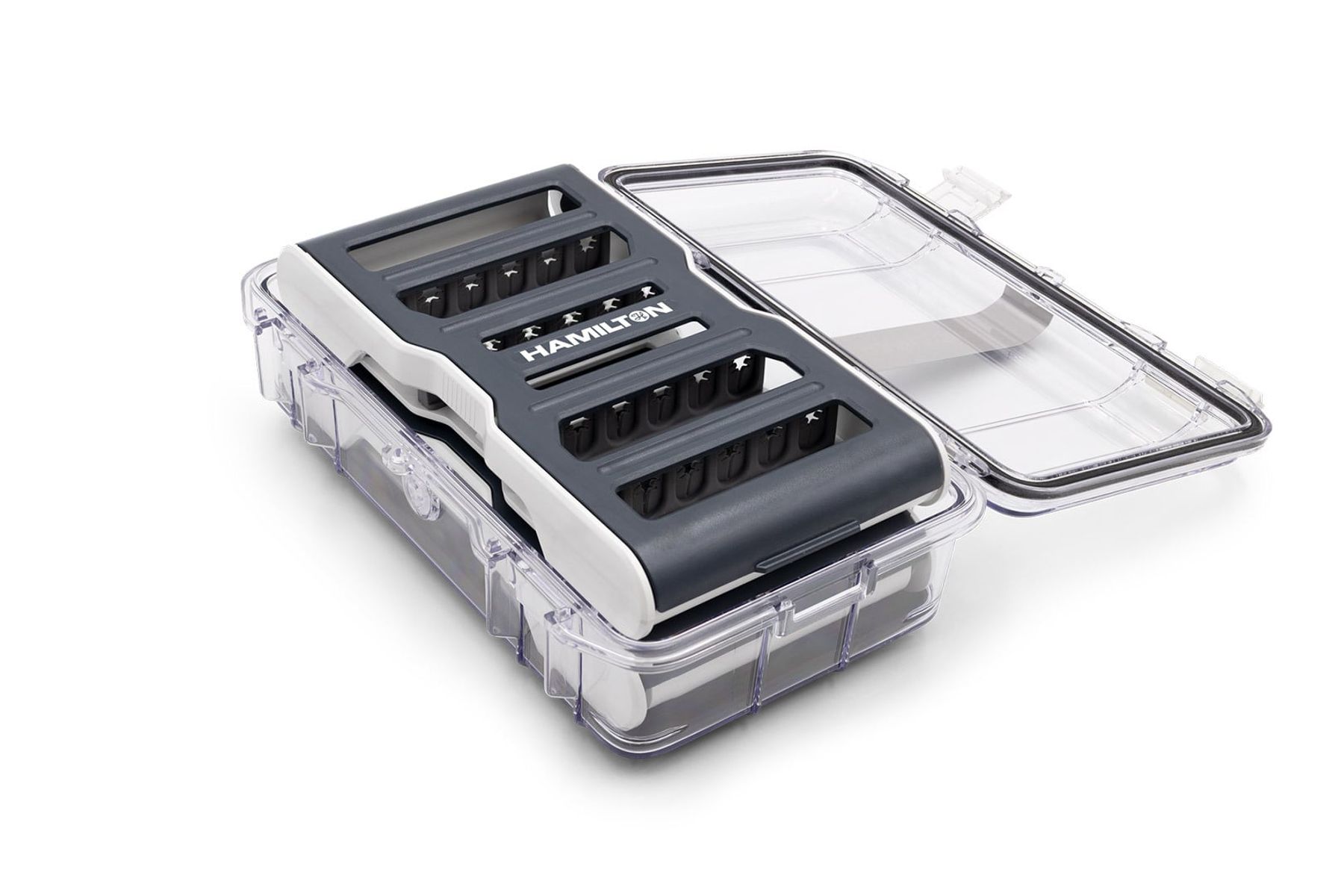

The SyringeGuard Kit is a complete storage and management solution designed to keep Hamilton syringes and needles organized, protected and readily accessible. Each kit includes a clear storage case, and two SyringeGuards, creating a scalable, stackable system that securely stores up to 12 syringes and needles.

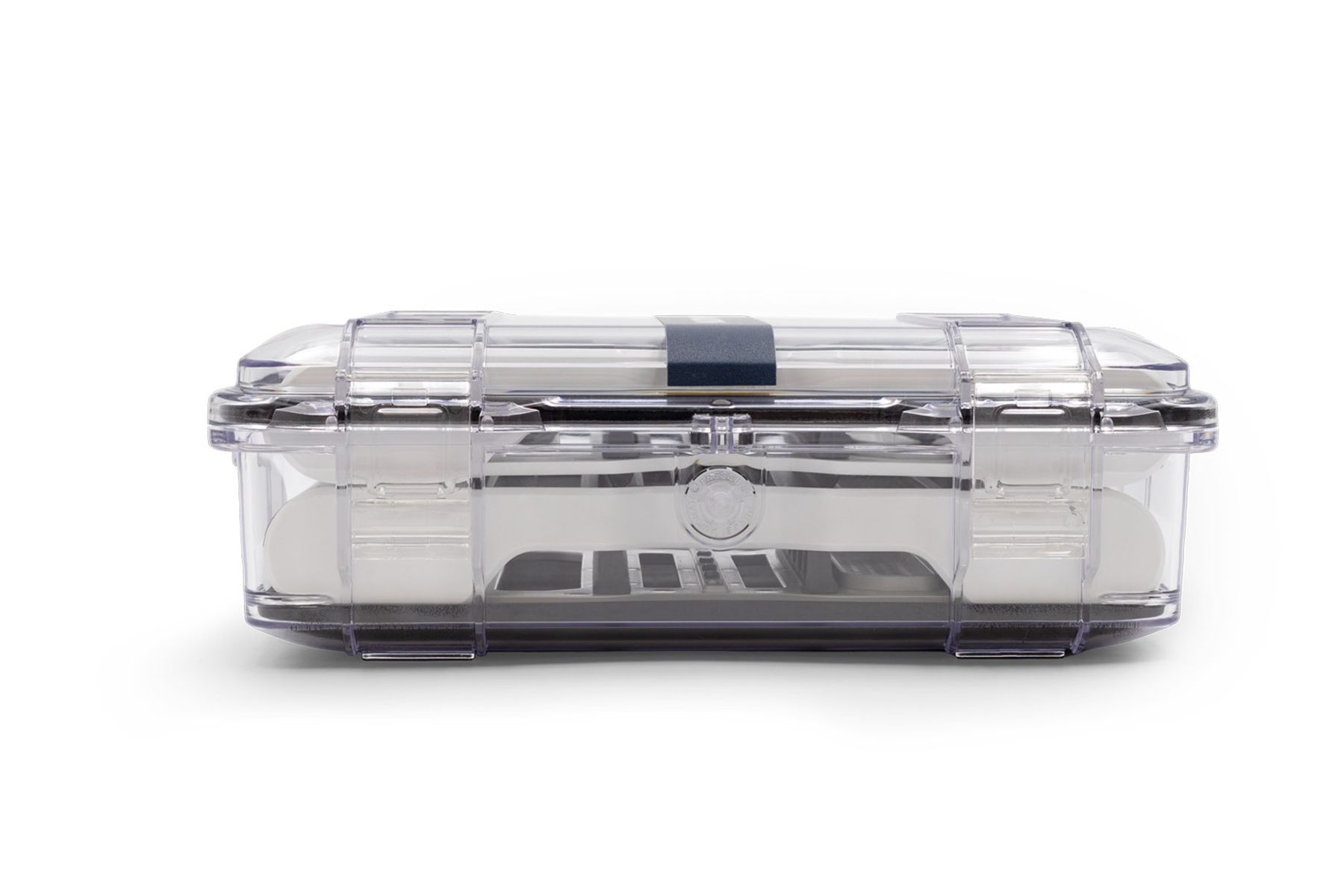

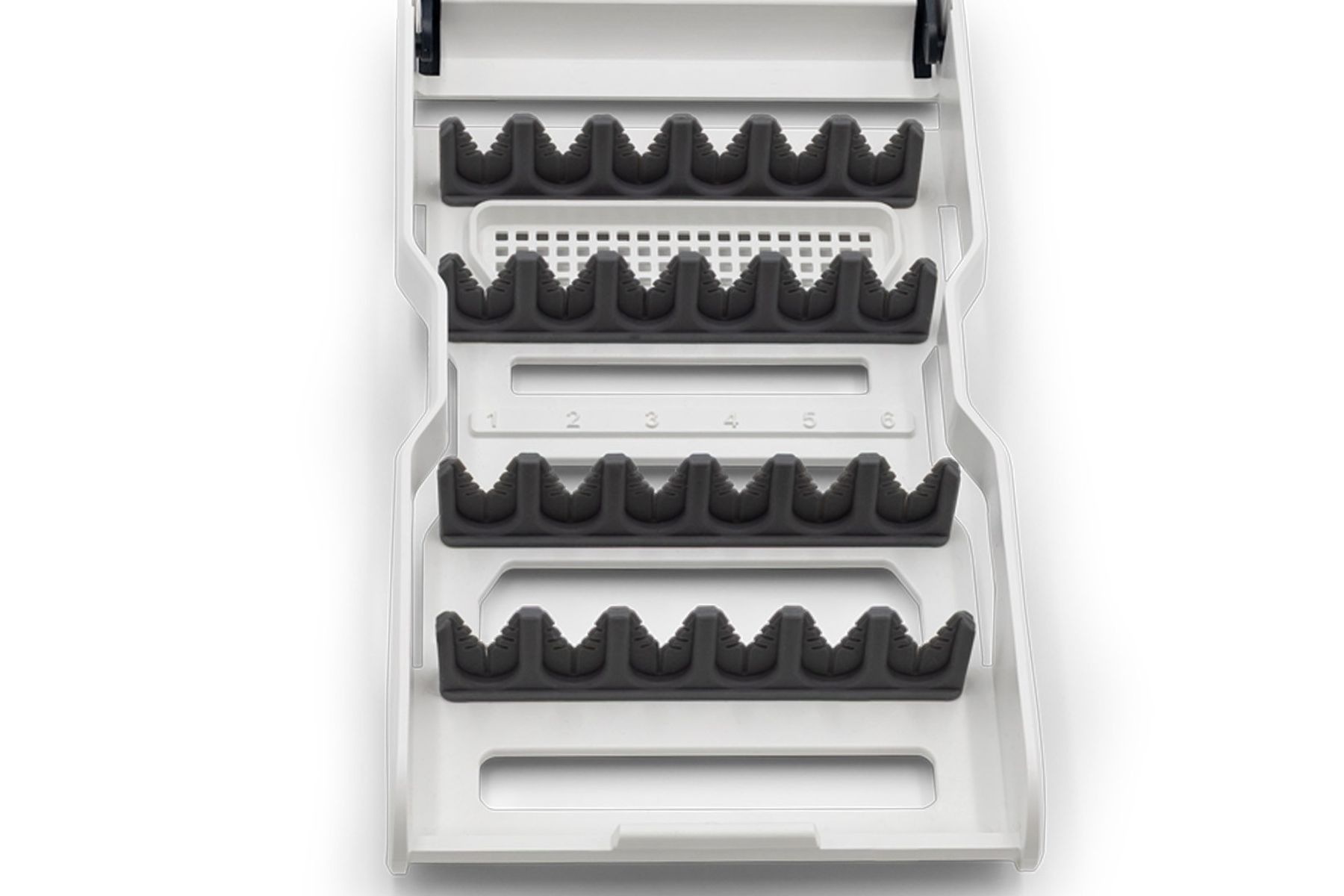

Designed to fit in standard laboratory drawers, the clear storage case protects syringes from moisture, dust and impact during storage and transport. Each SyringeGuard features numbered slots for secure retention and traceability. The included quick reference card allows users to record syringe and needle information for fast identification and inventory tracking. Together, these features promote organization, and protection of precision syringes and needles.

Engineered Protection

Safeguard syringe performance and longevity by securing components against accidental damage during storage and transport.

Space Efficient Design

Reclaim your valuable workspace with a stackable, compact storage system that offers immediate visual confirmation of your inventory.

SyringeGuard Kit Specifications

Print
Length (SyringeGuard) 8.3 inches (210.82 mm)
Width (SyringeGuard) 4.6 inches (116.84 mm)
Height (SyringeGuard) 1.2 inches (30.48 mm)
Syringe Volume Compatibility (SyringeGuard) Up to 1 mL
Syringe Series Compatibility (SyringeGuard) 600, 700, 1000, 1700, 7000 Series and Neuros
Autoclavable (SyringeGuard) Yes
Gas Sterilizable (SyringeGuard) Ethylene Oxide (ETO) and Vaporized Hydrogen Peroxide (VHP) Sterilization compatible
Needle Compatibility (SyringeGuard) Removable Needle (RN), Luer Lock, Hubless, and Hat Needle
Maximum Compatible Length (SyringeGuard) 7.7 inches (196 mm)
Material (SyringeGuard) Polyphenylsulfone (PPSU)
Syringe Slot Material (SyringeGuard) Silicone
Maximum Operating Temperature (SyringeGuard) 135°C /275°F
Minimum Operating Temperature (SyringeGuard) (-) 24°C/(-) 11 °F
Length (Clear Storage Case) 9.3 inches (236.22 mm)
Width (Clear Storage Case) 6.0 inches (152.40 mm)
Height (Clear Storage Case) 3.2 inches (81.28 mm)
Case Material (Clear Storage Case) Polycarbonate (PC)
Maximum Operating Temperature (Clear Storage Case) 57°C /135 °F
Minimum Operating Temperature (Clear Storage Case) (-) 24°C/(-) 11 °F
Autoclavable (Clear Storage Case) No
Disinfection (Clear Storage Case) Yes (70% Ethanol and 70% Isopropanol)
