Which Hamilton syringes are compatible with the SyringeGuard?

The SyringeGuard is compatible with Hamilton's 600, 700, 1700, 7000, and Neuros series syringes, as well as the 1000 series for volumes up to 1 mL. It supports a maximum combined syringe and needle length of 7.7 inches (196 mm).

Can the SyringeGuard be used in sterilization workflows?

Yes. The SyringeGuard is made from Polyphenylsulfone (PPSU) and is compatible with both steam autoclave and gas sterilization methods, including Ethylene Oxide (EtO) and Vaporized Hydrogen Peroxide (VHP). Note that the included Clear Storage Case is not autoclavable but can be disinfected with 70% ethanol or 70% isopropanol.

How many syringes and needles can the SyringeGuard hold?

Each SyringeGuard holds up to six syringes in numbered slots. It can also be used as a dedicated needle storage system, accommodating up to 12 standard 2-inch needles, or up to 24 needles when utilizing both the upper and lower portions of each slot.

What needle types and gauges does the SyringeGuard support?

The SyringeGuard accommodates Hamilton needles from 10 to 34 gauge and up to 7.7 inches in length. Supported hub styles include Removable Needle, Luer Lock, Hubless, and Hat Needle configurations.

What is included in the SyringeGuard Kit?

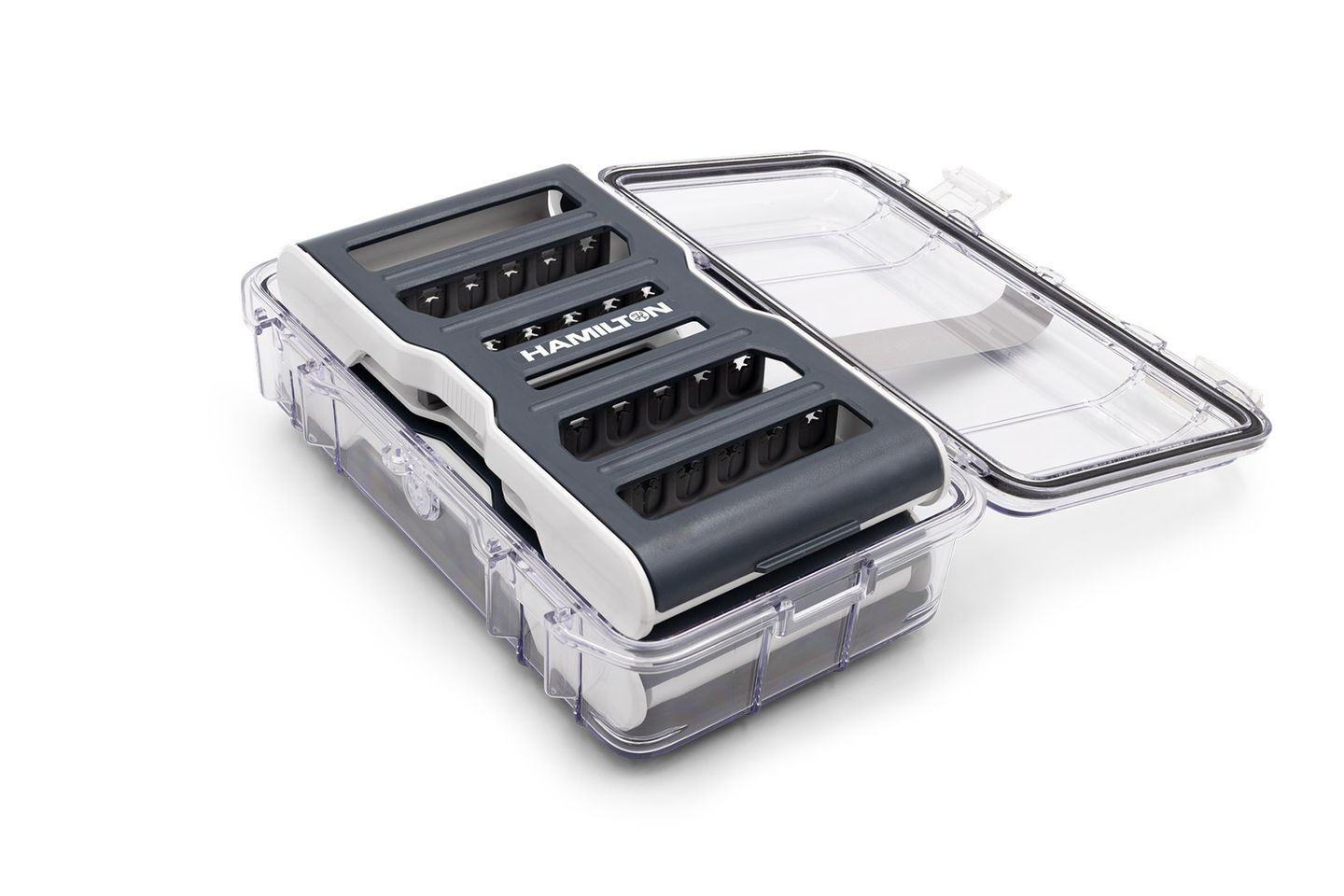

The SyringeGuard Kit (part number 6613512-01-KIT) includes two SyringeGuards, a durable polycarbonate Clear Storage Case with an O-ring seal, and a Quick Reference Card for logging syringe specifications and reordering information.

Hamilton SyringeGuard Instruction Sheet

The SyringeGuard Instruction Sheet is the complete setup and usage guide for Hamilton's SyringeGuard, a purpose-built storage and protection system for Hamilton syringes and needles. It covers the kit's core benefits, including compact stackable storage, numbered slots for inventory tracking, and secure retention to prevent accidental damage, along with compatibility details for the 600, 700, 1700, 7000, Neuros, and select 1000 series syringes and needles from 10 to 34 gauge.

The Instruction Sheet also goes beyond basic storage, with practical tips on disassembling and organizing components by numbered slot to maintain traceability, using the SyringeGuard within steam and gas sterilization workflows, and safely transporting syringes in the included polycarbonate Clear Storage Case. Full product specifications and ordering information are included at the end.
