Point Style 5 Specifications

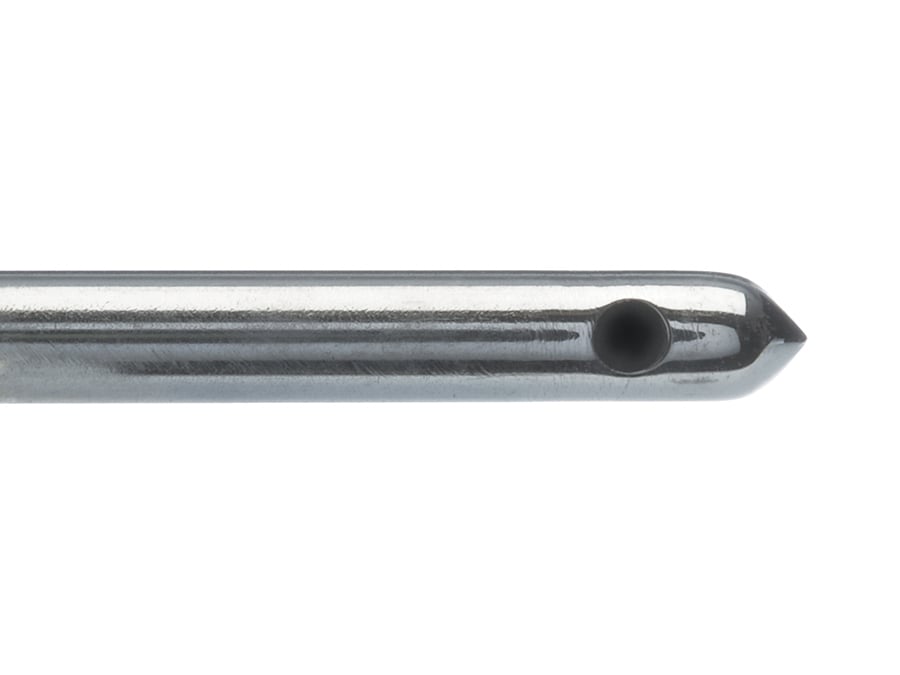

Point Style 5 needles are non-coring conical needles with a side port for penetration of septa, thin-gauged vinyls, and plastics. The table below provides the diameter of the side port for the available gauges: 26-10.
| Needle Gauge | Port Diameter (inches) | Port Diameter (mm) |
|---|---|---|
| 10 | 0.073 | 1.85 |
| 11 | 0.064 | 1.61 |
| 12 | 0.055 | 1.40 |
| 13 | 0.047 | 1.19 |
| 14 | 0.043 | 1.09 |
| 15 | 0.037 | 0.94 |
| 16 | 0.032 | 0.81 |
| 17 | 0.028 | 0.71 |
| 18 | 0.023 | 0.57 |
| 19 | 0.018 | 0.46 |
| 20 | 0.016 | 0.41 |
| 21 | 0.014 | 0.34 |
| 22 | 0.010 | 0.25 |
| 22s | 0.006 | 0.15 |
| 23 | 0.010 | 0.25 |
| 23s | 0.006 | 0.15 |
| 24 | 0.010 | 0.25 |
| 25 | 0.010 | 0.25 |
| 26 | 0.008 | 0.20 |
| 26s | 0.006 | 0.15 |
