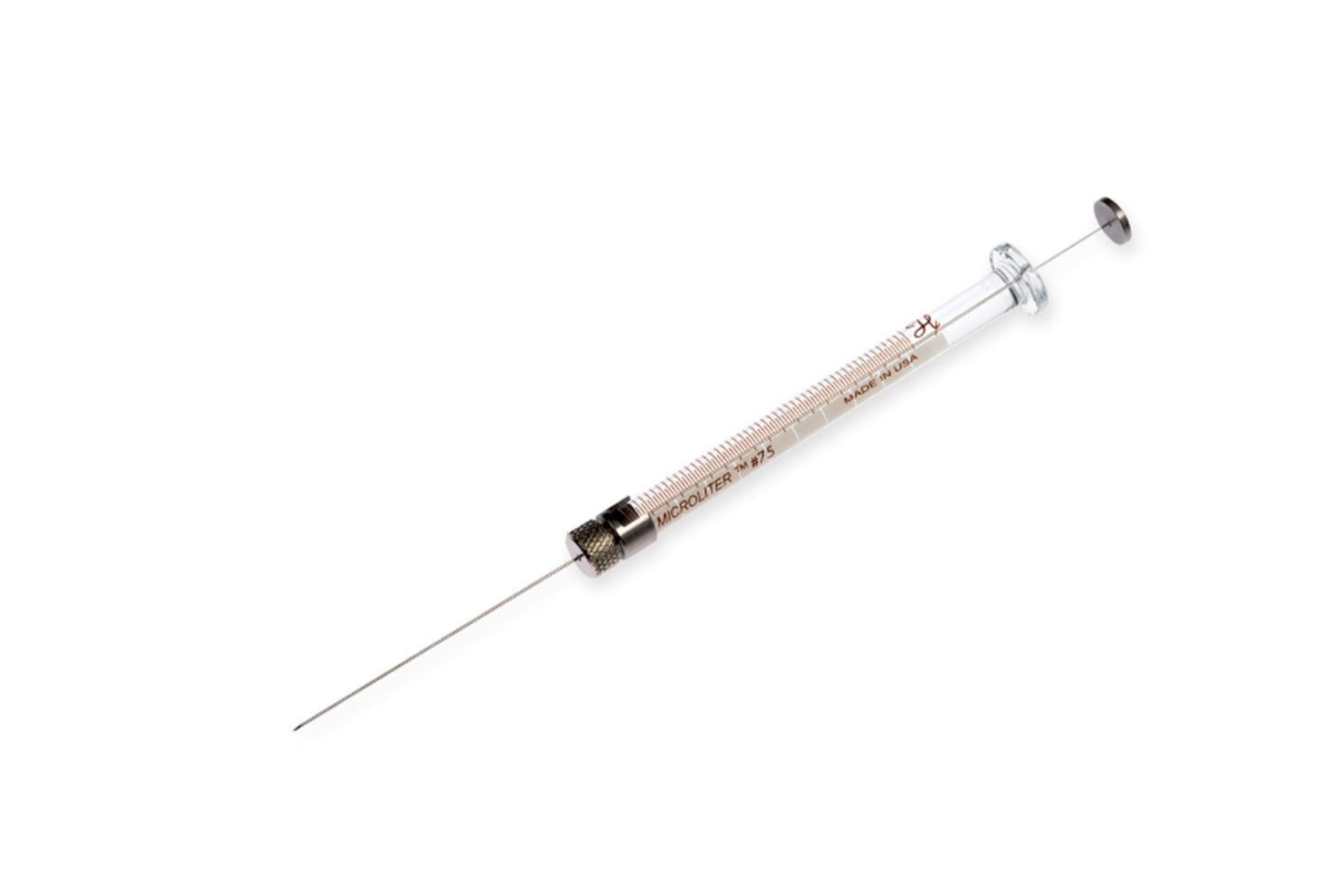

5 µL, Microliter Syringe, Removable Needle (RN), PN: 87930

26s gauge, 2 in, (50.8 mm), point style 2: curved, beveled

Part # 87930

This 700 series syringe #75 features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This 5 µL syringe (PN: 87930) is made from high-quality and chemically resistant materials. Compatible with Small RN Hub Needles. View Compatible Autosamplers

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 µL, Microliter Syringe, Removable Needle (RN), PN: 87930 Details

Hamilton's 700 series, Microliter #75 Small Removable Needle (RN) Syringe is designed for manual dispensing and use in autosamplers. Hamilton lab syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials. Commonly used with autosamplers such as Shimadzu AOC-9.

Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Compatible Autosamplers:

Shimadzu AOC-9 Syringes



Common applications Veterinary Sciences

Borosilicate Glass Syringe Body

  • Provides chemical durability and long-lasting syringe performance.
  • Maintains accuracy and precision over a wide range of temperatures and pressures.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

5 µL, Microliter Syringe, Removable Needle (RN), PN: 87930 Specifications

Print
Volume 5 µL
Syringe Type Microliter
Syringe Series 700
Termination Removable Needle (RN)
Needle Small RN
Gauge 26s gauge
Point Style 2: Curved, Beveled
Needle Length 2 inch (51 mm)
Plunger Style Standard Plunger
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
50°C / 122°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.019 inches (0.474 mm)
Std Needle Dead Volume 0.64 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 75

5 µL, Microliter Syringe, Removable Needle (RN), PN: 87930 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe Plungers

Article

Syringe Plunger Types

Hamilton manufactures a variety of plungers depending on the intended use of the syringe. This article describes which plunger design and materials are optimal for each type of syringe.
800series MICROLITER Syringes

Article

Microliter Syringe Operating Parameters

Explore detailed operating parameters of microliter syringes to ensure precise liquid handling and enhance your lab performance with Hamilton’s expert guidance.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?

Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
