VisiPro DO Ex Dissolved Oxygen Sensor (discontinued)

The discontinued VisiPro DO Ex sensor family was designed for industrial environments with standard and Ex versions for use in explosive environments. Find our equivalent replacement sensor here: VisiFerm mA

Receive More Information

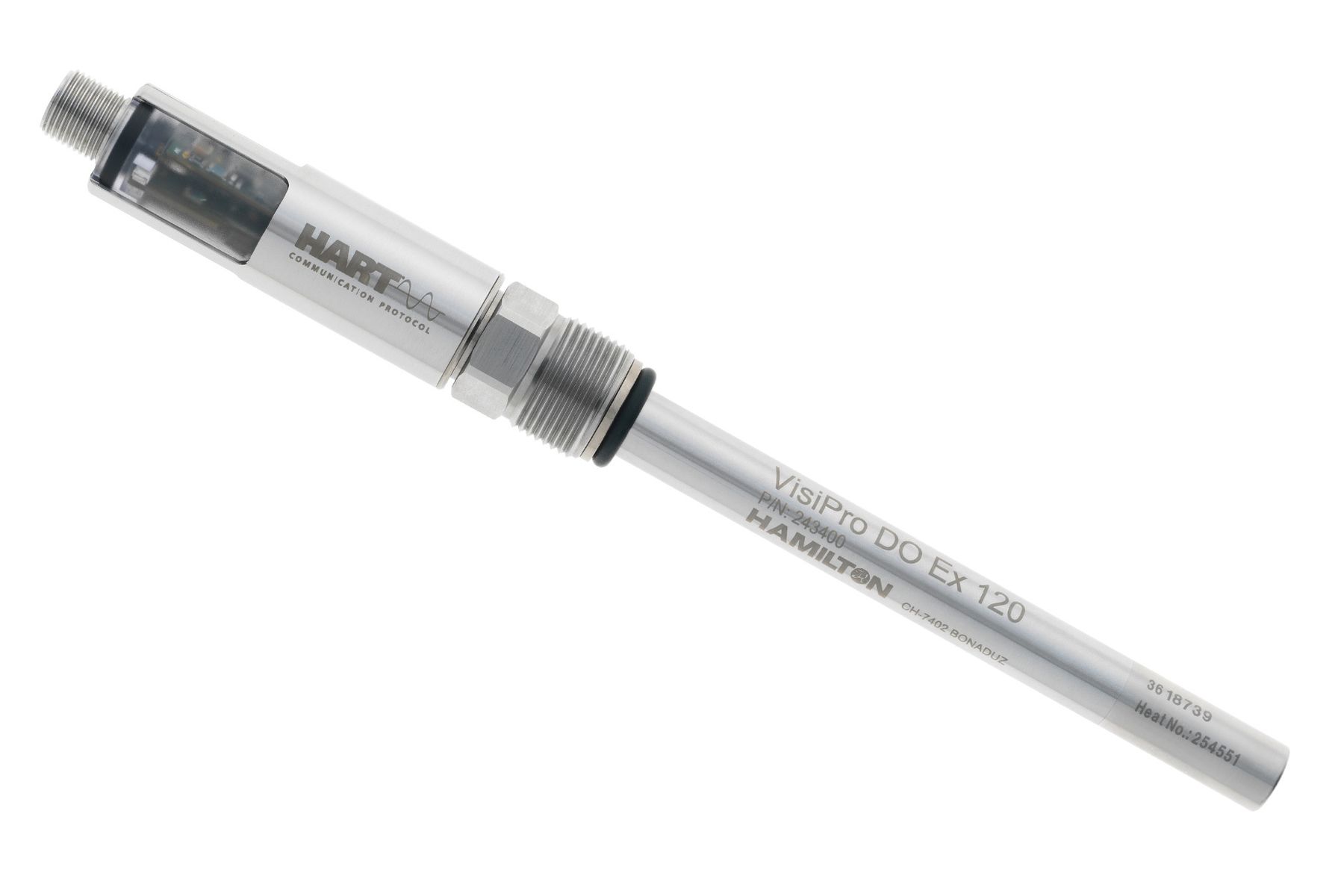

  • Visipro Do Ex Dissolved Oxygen Sensor

Commonly Grouped Accessories

VisiPro DO Ex Dissolved Oxygen Sensor (discontinued) Details

The discontinued VisiPro Optical DO Ex sensor family was designed for industrial environments with standard and Ex versions for use in explosive environments. Hamilton's own substitutes VisiFerm mA meet and exceed the specification and performance requirements and reduce the effects of ageing and temperature with 100% backwards compatibility to existing installation. VisiFerm mA is delivered with Ex approval as standard.

Find our equivalent replacement sensor here: VisiTrace mA L1

VisiPro DO Ex Dissolved Oxygen Sensor (discontinued) Specifications

Print
Process Connection PG13,5
Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document
Electrical Connector M12
Measuring Range 4 ppb to 25 ppm (DO) 0 to 62.85 %-vol or 0 to 300 %-sat
Electrolyte None
Accuracy at 25 °C 1 ± 0.05 %-vol; 21 ± 0.2 %-vol; 50 ± 0.5 %-vol
Drift at Room Temperature < 1 % per week
Oxygen Consumption None
Temperature Sensor NTC 22 kOhm
Configurable Values Dissolved oxygen (DO): mbar, %-sat, %-vol, μg/l ppb, mg/l ppm, ppm gas; Temperature: °C, °F, K
Surface Quality of Steel Ra < 0.4 µm (N5)
4 to 20 mA Current Range 3.5 to 22 mA
Analog Interface 1 Two wire sink 4 to 20 mA for DO, programmable
4 to 20 mA Accuracy < 0.3 % current value + 0.05 mA
Transmitting Power Max. 4 dBm
Digital Interface Bluetooth 4.0
HART Protocol 7
Operating Voltage 18 to 30 VDC
Serial Number Yes
Response Time t98% < 30 s at 25 °C
Certificate Yes, with measured current in air
Diameter 12 mm
Autoclavable No
Steam Sterilizable Yes, max. Temperature 140 °C
CIP Yes
Operating Temperature Range -20 to 140 °C; the sensor provides no DO reading above 85 °C
Pressure Range bar g -1 to 12 bar
Protection Rating IP68
Required Flow None

VisiPro DO Ex Dissolved Oxygen Sensor (discontinued) Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

White triangle set square ruler icon on a dark navy circular background

Technical Drawing

Technical Drawings - VisiPro Dissolved Oxygen Sensors

Download the technical drawings of the VisiPro dissolved oxygen sensors.
Certificate icon with award ribbon and star badge on navy blue circle background

Certificate

EU Declaration of Conformity - VisiPro DO and VisiTrace DO Sensors

Certificate icon with award ribbon and star badge on navy blue circle background

Certificate

IECEx Certificate BVS 13.0075X - VisiPro DO Ex and VisiTrace DO Ex

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does atmospheric pressure impact my gas phase oxygen measurement?

Yes, atmospheric pressure directly impacts the partial pressure of oxygen in the measured air and is linearly proportional to the measured oxygen content.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does temperature impact my oxygen measurement?

Yes, in a closed system, gas phase temperature is directly proportional to pressure and therefore measured oxygen content. In solution, temperature is inversely proportional to dissolved oxygen content.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can I use a VisiFerm, VisiPro, or VisiTrace for gas phase oxygen measurements?

Yes. Optical DO sensors can be used for monitoring oxygen contents in air as well as dissolved oxygen.
