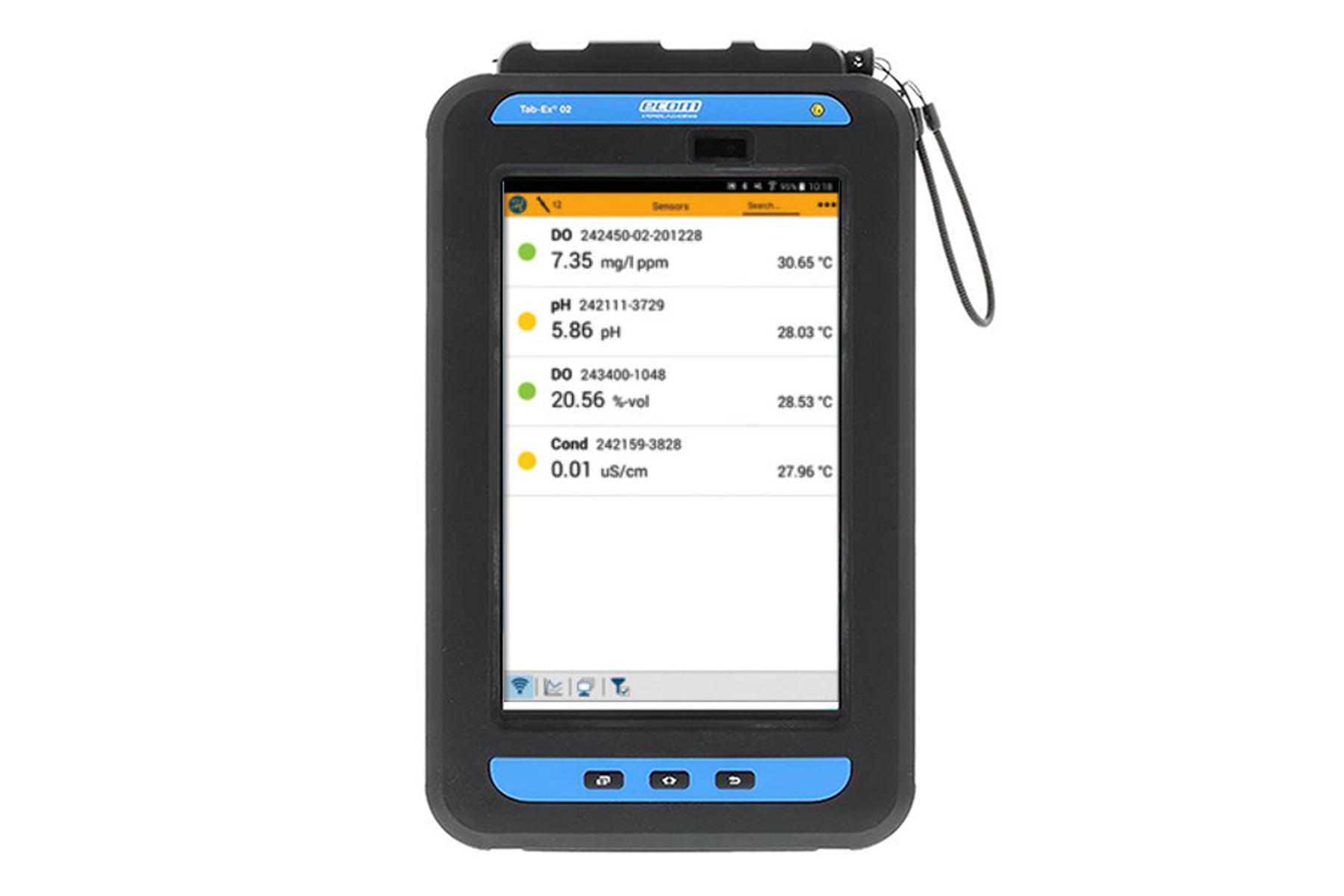

Arc View Ex Mobile

Part # 243688

The Arc View Ex Mobile is a tablet designed to be used in hazardous environments. In combination with the ArcAir app it can be used to communicate in such an environment with optical dissolved oxygen sensors like VisiFerm mA or VisiFerm mA, VisiTrace mA or Arc sensors (none Ex).

Receive More Information

Product discontinued, contact us for more information.

Commonly Grouped Accessories

Arc View Ex Mobile Specifications

Print
Dimensions (W x D x H) 162.1 x 256.0 x 33.3 mm
Weight 1250 g
Digital Interface Bluetooth 4.2
Memory Micro-SD, supports up to 256GB
Operating System Android 9
Power Supply Rechargeable lithium ion battery 4450 mAh
USB powered (3.8 V)
ATEX Approval II 2G Ex db ia op is IIC T5 Gb; II 2G Ex ia op is IIIC T100°C Db
IECEx Approval II 2G Ex db ia op is IIC T5 Gb; II 2G Ex ia op is IIIC T100°C Db
Operating Temperature Range -20 to 50 °C
Protection Rating IP64

Arc View Ex Mobile Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Certificate icon with award ribbon and star badge on navy blue circle background

Certificate

EU Declaration of Conformity - Arc System Accessories and Modbus OPC Converter

Certificate icon with award ribbon and star badge on navy blue circle background

Certificate

UKCA Declaration of Conformity - Arc Wireless Accessories

Dark navy circle icon featuring a computer monitor outline with a white checkmark on screen

Software Download

Software - ArcAir 3.11 Downloads

Download the latest version of the ArcAir software to ensure compatibility, performance, and reliable operation.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Arc Sensors - Signal Averaging

Certain applications may introduce conditions that create fluctuating or "noisy" measurements. The noisy measurement can make process control challenging. One way to improve signal stability is to adjust the moving average setting using ArcAir software.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How do I communicate with an Arc sensor?

Arc sensors have a built-in micro-transmitter within the sensor. ArcAir software is a powerful tool to access data, configure and calibrate the sensor. This can be done with Bluetooth wireless communication or with a wired connection directly to a PC.
