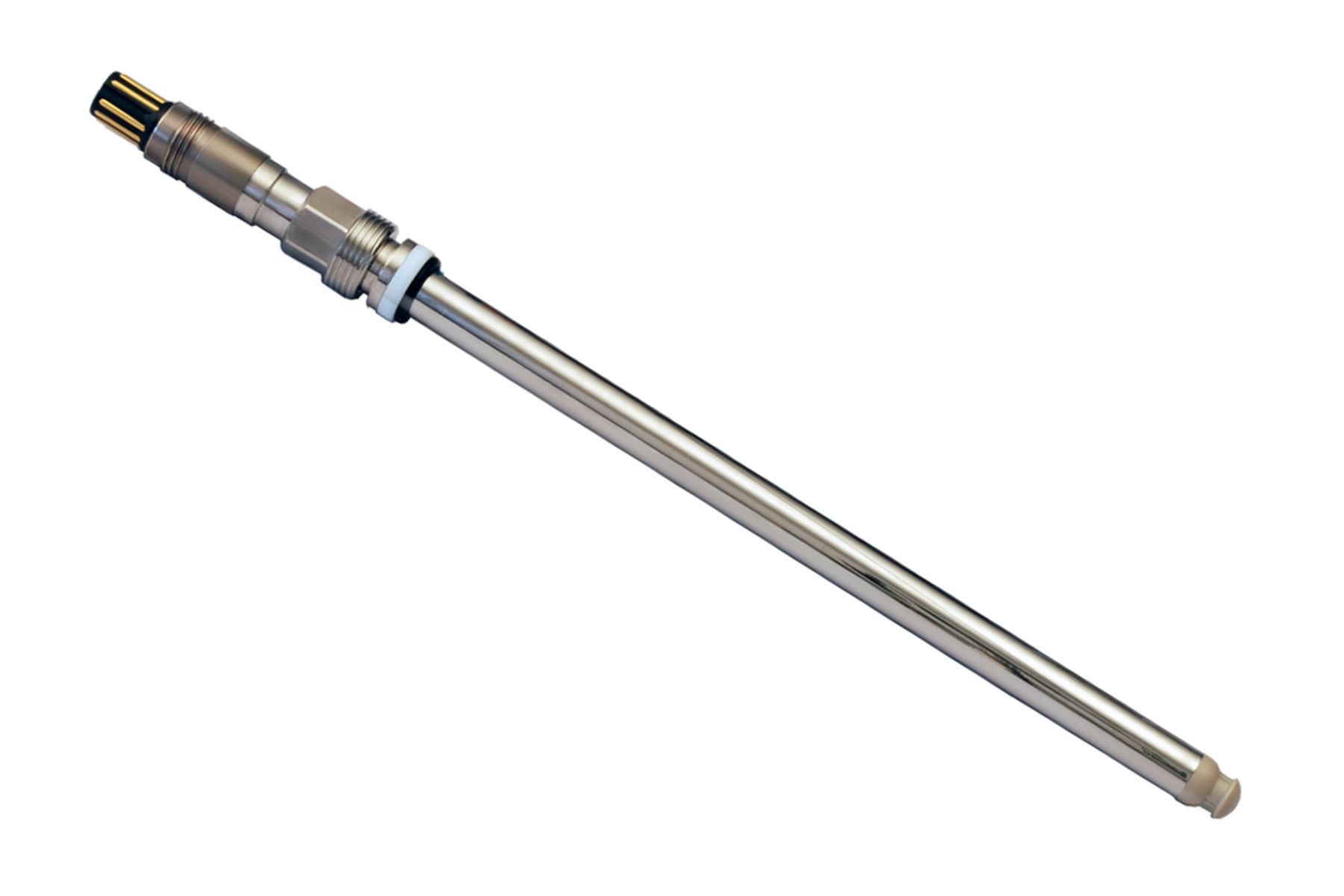

Incyte Replacement Sensor 220 LC (Low Conductivity)

Part # 243717

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton sensors enhance safety, efficiency, and reliability in chemical processes.

    Hamilton sensors and retractable fittings are not only essential for monitoring and controlling our chemical processes, but also make preventive maintenance and fault diagnosis much easier. The robustness and durability of the products mean fewer emergency call-outs and greater overall plant effectiveness. Overall, the sensors make a significant contribution to the safety, efficiency and reliability of our operating processes and help us to meet and exceed our high standards.

    Dimitri Brumm
    EMR Operating Engineer - Cassella Chemiepark

Incyte Replacement Sensor 220 LC (Low Conductivity) Specifications

Print
Process Connection PG13,5
Wetted Parts Platinum
Stainless Steel 1.4435
PEEK (Polyetheretherketone)
EPDM (Ethylene propylene elastomer)
See compliance details in Material Specification document
Electrical Connector VP11
Measuring Range 0 to 700 pF/cm, equivalent to 5 x 10^5 to 8 x 10^9 cells/mL (mammalian) or 5 to 200 g/L dry weight (bacteria and yeast)
Surface Quality of Steel Ra < 0.4 µm (N5)
Certificate Yes
Diameter 12 mm
Autoclavable Yes, max. Temperature 130 °C
Steam Sterilizable Yes, max. Temperature 135 °C
CIP Yes
Operating Temperature Range 0 to 60 °C
Conductivity Range 0.5 to 10 mS/cm
Pressure Range bar g 0 to 12 bar
a-length 220 mm
