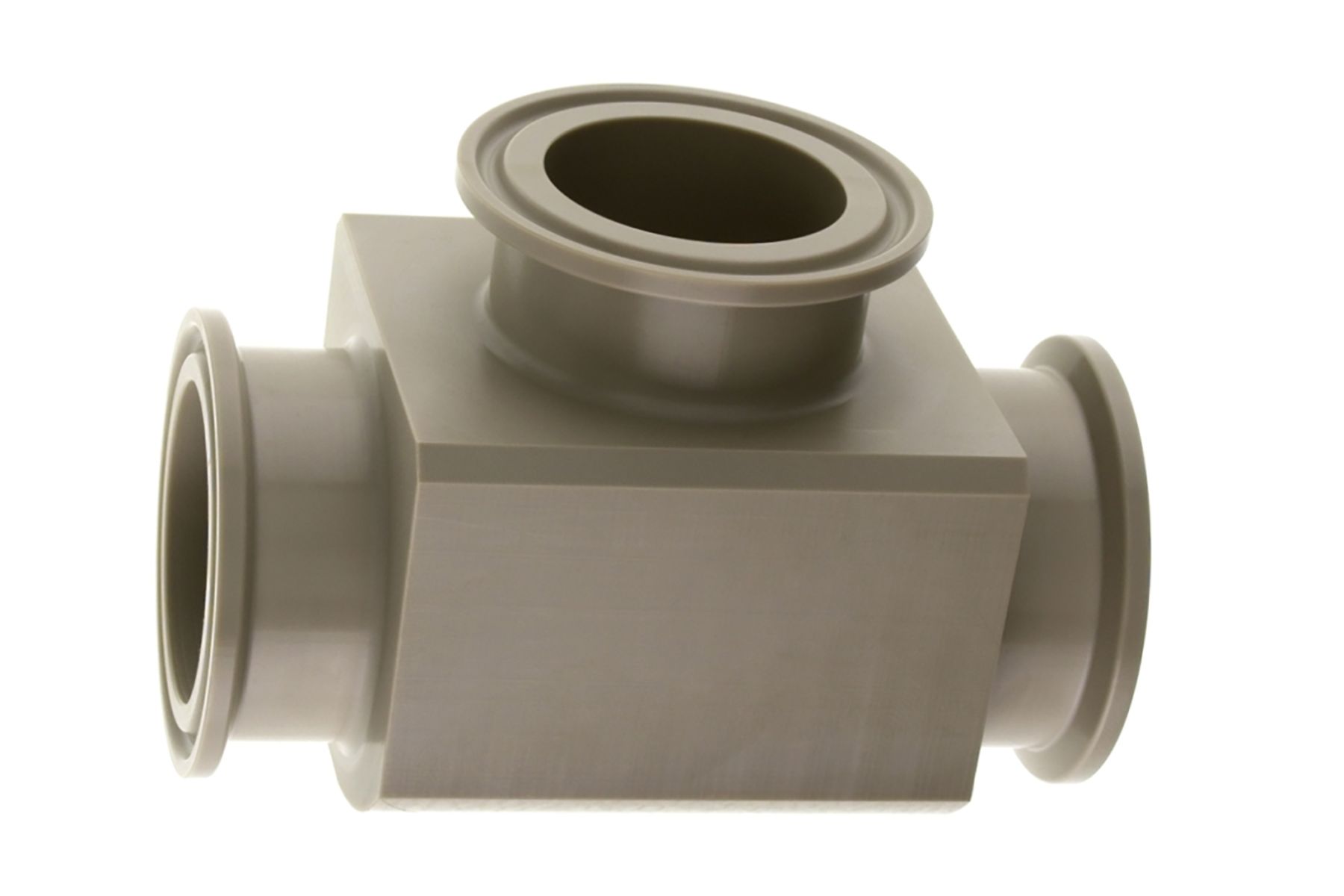

Flow-Through Cell PEEK TC

Part # 237931

Ensure accurate conductivity measurements in your piping systems with this FDA-approved PEEK flow-through cell, specifically designed to facilitate the insertion of the Conducell 4US-T150-50 sensor and eliminate interference from electronic fields in metal pipes.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Flow-Through Cell PEEK TC Details

This flow-through cell, manufactured from FDA (Food and Drug Administration) approved PEEK (Polyether ether ketone), is specifically designed to facilitate the seamless insertion of the Conducell 4US-T150-50 conductivity sensor into a piping system. When used in combination with a FlexiFit 242335-25, it is further possible to integrate all Hamilton Sensors in this FlowCell including  cell density, pH and DO sensors.

A key advantage of utilizing a PEEK flow-through cell in this application is its non-conductive nature. This crucial property effectively prevents potential measurement errors that can arise from the influence of electronic fields present in metal pipes. By isolating the sensor from the conductive environment of the piping, the PEEK flow-through cell ensures more accurate and reliable conductivity readings. The FlowCell is easy to connect thanks to the two 1.5” Triclamp connections on both sides, a widely used standard in the industry.

Prevents conductivity measurement errors from metal pipes.

Non-conductive nature eliminates metal pipe interference.

Ensures accurate conductivity readings.

FDA Approved PEEK Material

  • Constructed from PEEK, a high-performance polymer that is approved by the FDA for use in food and pharmaceutical applications.
  • This ensures biocompatibility and chemical resistance to a wide range of process fluids, maintaining the integrity of the measurement and the process stream.

Robust and Chemically Resistant

  • PEEK is known for its excellent mechanical strength, thermal stability, and broad chemical resistance.
  • This ensures the flow-through cell can withstand demanding process conditions and exposure to various chemicals without degradation, providing a long and reliable service life.

Facilitates Conducell 4US-T150-50 Insertion

  • Specifically designed with the precise dimensions and connections required for the easy and secure insertion of the Conducell 4US-T150-50 conductivity sensor into a piping system.
  • This ensures proper alignment and optimal performance of the sensor within the flow cell.

Standard 1.5" Connection

  • Features a 1.5" connection (likely a standard pipe thread or flange size), ensuring compatibility with a wide range of commonly used industrial piping systems.
  • This standardization simplifies installation and integration into existing processes.

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Flow-Through Cell PEEK TC Specifications

Print
Process Connection Triclamp 1.5"
Wetted Parts PEEK (Polyetheretherketone)
(FDA 21 CFR 177.2415; EU 1935/2004, EU 10/2011; USP <88> Class VI - 121 °C)
For Sensors with Triclamp 1.5"
Dimensions (W x D x H) 100 x 60 x 70 mm
Max. Diameter 70 mm
Max. Total Length 100 mm
Min. Total Length 100 mm
Serial Number No
Certificate No
ATEX Approval No
Diameter 35 mm
Autoclavable Yes
CIP Yes
Operating Temperature Range -10 to 140 °C
Max. Pressure bar g 3 bar
Product Family FlowCell
