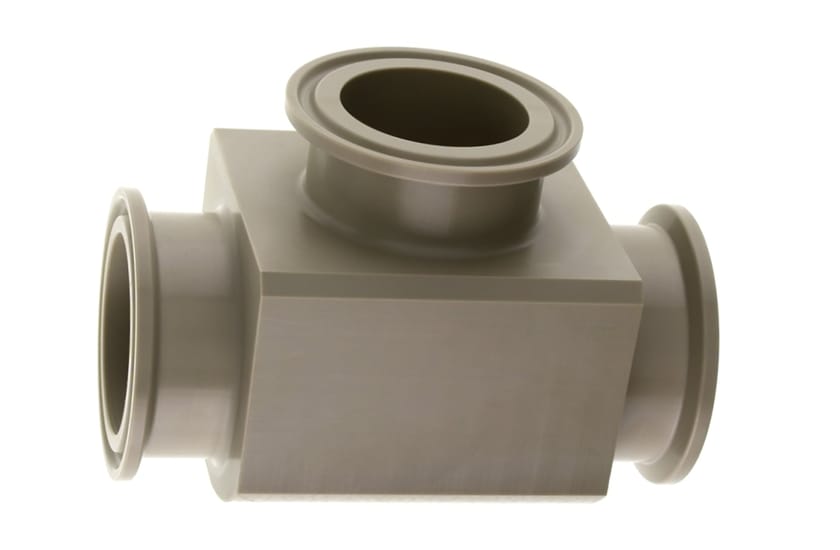

This FDA-approved PEEK flow-through cell (REF 237931) is designed for easy insertion of the Conducell 4US-T150-50 sensor into piping systems while preventing measurement errors caused by electronic fields in metal pipes.
Product Specifications
| Process Connection |
Process Connection
Triclamp 1.5"
|
|---|---|
| Wetted Parts |
Wetted Parts
PEEK (Polyetheretherketone)
(FDA 21 CFR 177.2415; EU 1935/2004, EU 10/2011; USP <88> Class VI - 121 °C) |
| For Sensors with |
For Sensors with
Triclamp 1.5"
|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
100 x 60 x 70 mm
|
| Max. Diameter |
Max. Diameter
70 mm
|
| Max. Total Length |
Max. Total Length
100 mm
|
| Min. Total Length |
Min. Total Length
100 mm
|
| Serial Number |
Serial Number
No
|
| Certificate |
Certificate
No
|
| ATEX Approval |
ATEX Approval
No
|
| Diameter |
Diameter
35 mm
|
| Autoclavable |
Autoclavable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 140 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
3 bar
|
| Product Family |
Product Family
FlowCell
|
Spec. Version B
