FlexiFlow SL 10

Part # 237340

Achieve reliable pH and oxygen measurements in challenging ion-weak media with the FlexiFlow flow-through cell, featuring a compact and self-draining design for easy integration into systems.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

FlexiFlow SL 10 Details

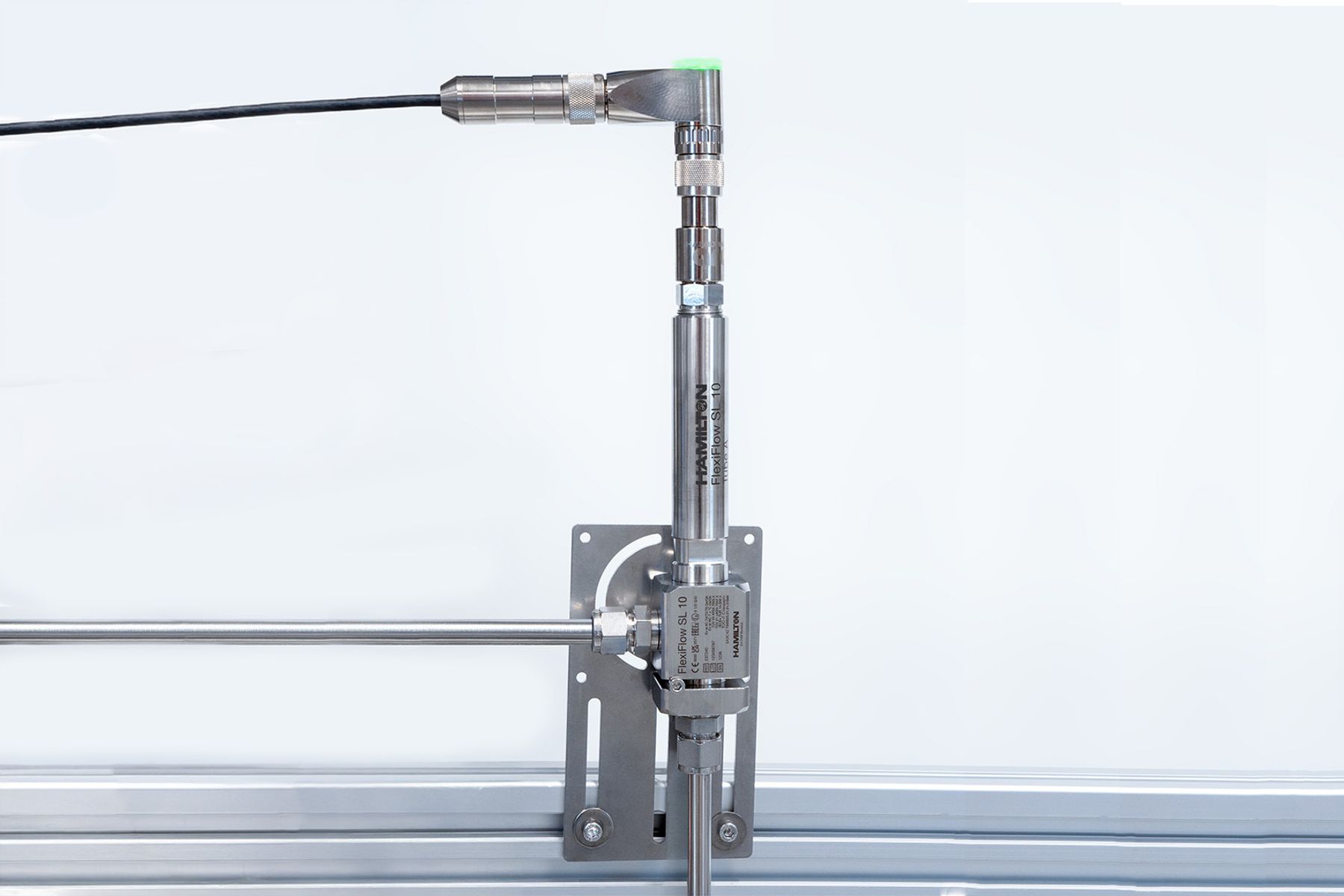

The FlexiFlow is a specialized flow-through cell designed to facilitate reliable measurements of pH or dissolved oxygen, particularly in media with low ion concentrations. This makes it ideally suited for applications such as monitoring coolant piping in power generating stations, where the ionic strength of the fluid can be very low and pose challenges for conventional sensors. The sample being measured is introduced into the cell from the bottom at a controlled, low flow speed and then exits the cell through a port located on the side. A groove is integrated into the design of the FlexiFlow, allowing for simple and secure attachment to various surfaces. This mounting flexibility enables easy integration of the flow cell into existing systems. It is important to note that the FlexiFlow flow-through cell is not compatible with Conducell conductivity sensors or Incyte biomass sensors.

Features a space-saving and compact design.

Offers easy and secure attachment to any flat surface.

Ideal for use in small pipes where direct sensor insertion is impossible.

Incorporates a self-draining design to prevent sample carryover

Reliable Measurement in Ion-Weak Media

Specifically designed to ensure accurate and dependable pH or dissolved oxygen measurements even in media with very low ion concentrations. This capability extends the application range to challenging environments where standard sensors might struggle to provide stable readings.

Compact and Space-Saving

Features a small and efficient design that requires minimal installation space. Its compact form factor and design enables simple and secure mounting to any flat surface using standard commercially available screws for easy integration into systems with limited room, making it a practical solution for various setups.

Ideal for Small Pipes

Offers a solution for applications involving small diameter pipes where direct insertion of conventional sensors is not feasible. The flow-through design allows the sample to be diverted through the cell for measurement, providing a practical alternative.

Self-Draining Functionality

Engineered with a self-draining design. This feature prevents the accumulation of residual sample within the cell after measurement, minimizing the risk of cross-contamination between different samples and simplifying maintenance procedures.

FlexiFlow SL 10 Specifications

Print
Process Connection Swagelok 10 mm
Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
(FDA 21 CFR 177.2600; EU 1935/2004; USP <88> Class VI - 121 °C)

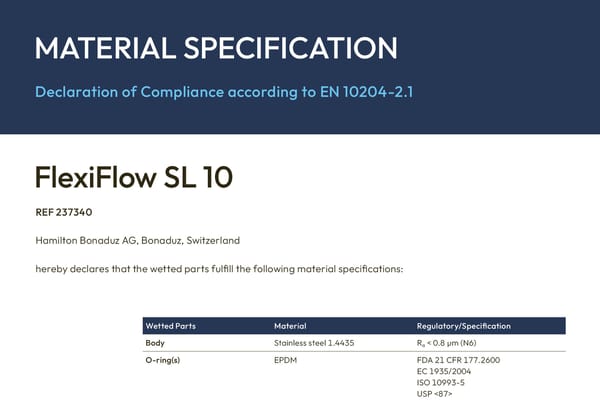

See compliance details in Material Specification document
For Sensors with 120 mm, 12 mm, PG13,5
Max. Diameter 65 mm
Max. Total Length 175 mm
Min. Total Length 175 mm
Internal Volume Approx. 5.5 mL
Mounting Bottom Screw Mount (4 pcs)
Weight 1200 g
Serial Number Yes
Certificate Yes, 3.1 certificate with heat number
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
EAC Ex Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
UKEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
Diameter 65 mm
Autoclavable No
Steam Sterilizable Yes
CIP No
Operating Temperature Range -10 to 130 °C
Max. Pressure bar g 16 bar
Product Family FlowCell
