ODO Cap S0 (discontinued)

Part # 243461

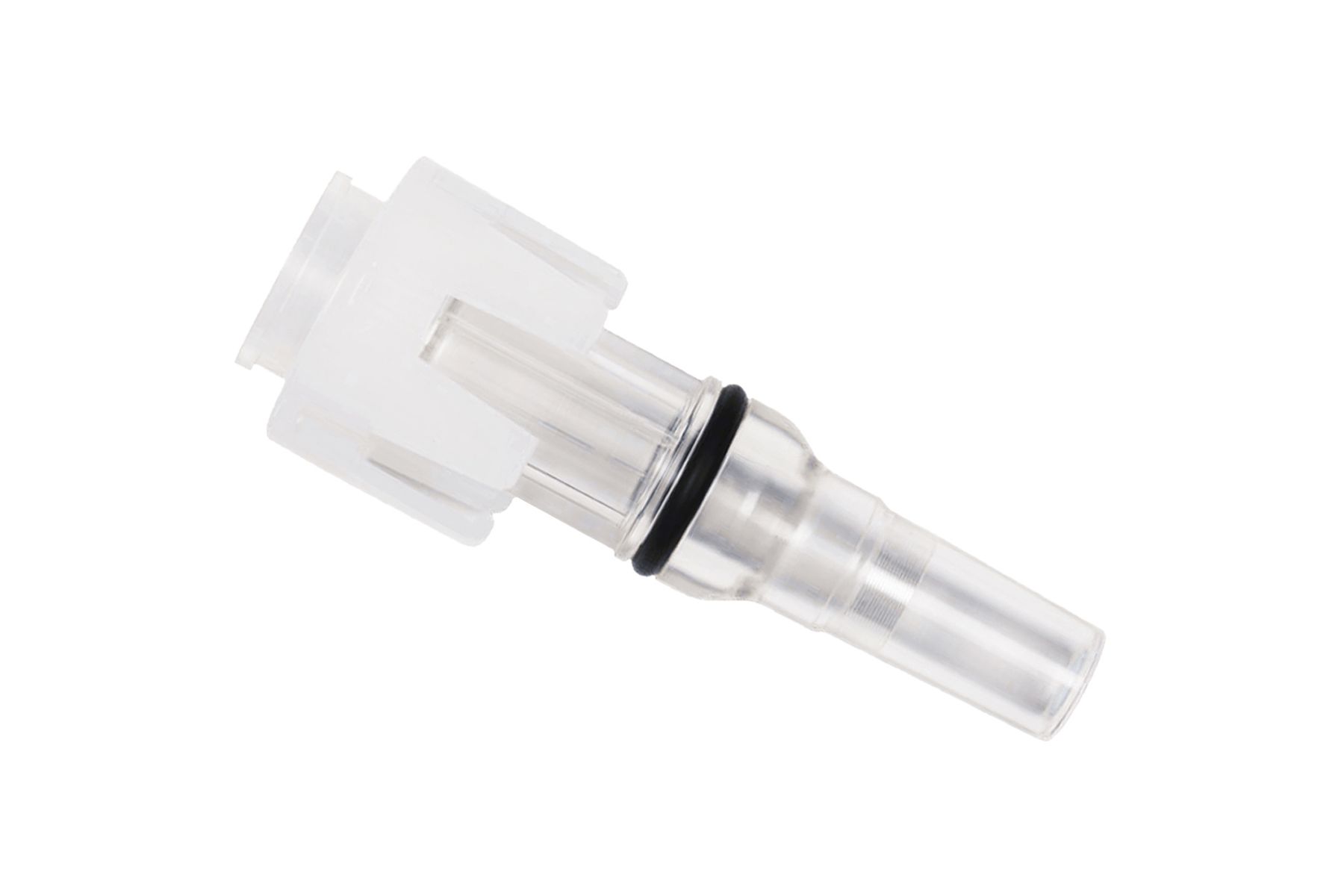

The Hamilton ODO Cap S0 Kit for the optical measurement of Dissolved Oxygen (DO) is a Single-Use (SU) cap for the VisiFerm SU sensor. It can be integrated into the single-use container within a 1" barbed bag port. The port fitting is available for integrators such as single-use bioreactor manufacturers.

This product is replaced by the ODO Cap S3.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

ODO Cap S0 Kit (discontinued) Details

The Hamilton ODO Cap Sx family of sensor elements offers a leading solution for single-use applications in the Pharmaceutical and Biotechnology industries. These sensors represent a significant advancement in single-use measurement, addressing common issues associated with traditional reusable dissolved oxygen sensors inserted into bags or benchtop bioreactors. They combine the proven reliability and measurement stability of Hamilton's conventional sensors with the convenience of seamless integration into single-use bioreactors. ODO Cap Sx sensors provide high accuracy even after gamma irradiation and have a sufficient shelf life. The ODO Cap Sx family is ideal for single-use bioreactor bag (ODO Cap S3) and rigid bioreactor (ODO Cap S2). The ODO Cap Sx, combined with the VisiFerm SU, provide industry-standard digital Modbus RTU and analogue (4 to 20 mA) signals. VisiFerm SU ECS can be connected and calibrated to most industry standard transmitters, making them an ideal solution for retrofitting existing controllers with single-use containers.

Common applications Pharma & Biopharma, Bioprocess Downstream, Single-Use Bioprocessing, Agri-Food and Beverage, Novel Food Bioprocessing

Ensure sterile DO monitoring with easy single-use integration

ODO Cap S0 (discontinued) Specifications

Print
Wetted Parts PA (Cycloaliphatic polyamide)
EPDM (Ethylene propylene elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document
Measuring Range 4 ppb to 25 ppm (DO)
0 to 62.85 %-vol
0 to 300 %-sat
Accuracy at 25 °C ± 1.0 %-sat (at 20 %-sat) after gamma irradiation and with product calibration
± 1.0 %-sat (at 100 %-sat) after gamma irradiation and with product calibration
± 2.5 %-sat (at 200 %-sat) after gamma irradiation and with product calibration
Calibration Data Yes, provided on sensor label
Drift at Room Temperature < 1 % per week (of measurement value)
Biocompatibility Yes, see separate study report (upon request)
Wet-in Time 30 min after dry storage
Shelf Life 12 months prior gamma irradiation
24 months after gamma irradiation
Serial Number Yes
Response Time t98% < 30 s at 25 °C
Autoclavable No
Steam Sterilizable No
CIP No
Gamma Irradiatable Yes, up to 50 kGy
Operating Temperature Range 4 to 50 °C
Pressure Range bar g 0 to 2 bar

Necessary Products

Explore the limitless possibilities of Hamilton products.

ODO Cap S0 (discontinued) Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Are VisiFerm SU components reusable in single-use applications?

Find out if VisiFerm SU components can be reused and how they fit into single-use bioprocessing workflows.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the expected lifetime and when should I replace my ODO cap?

ODO cap health is process specific, with a cap quality indicator in ArcAir representing the general health of the ODO cap. ODO cap quality replacement is advised at 35%, however, some customers may replace ODO caps as part of a preventative maintenance program before reaching 35%. Click to learn more.
