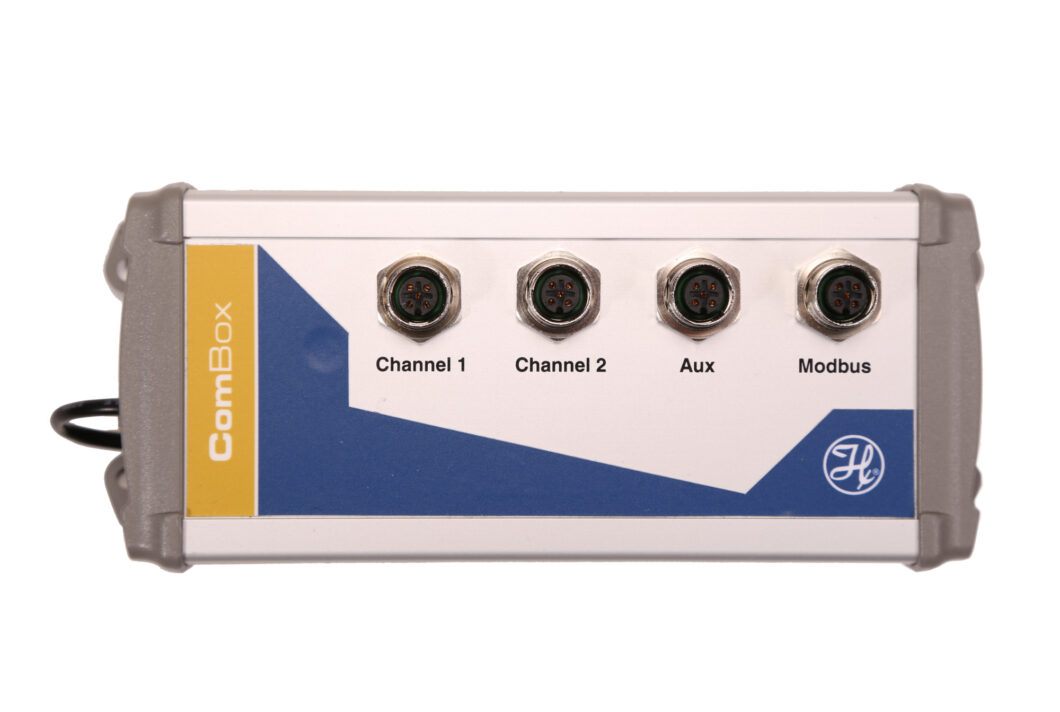

Cell Density ComBox
The Cell Density ComBox is a 2-channel USB device that enables the connection of two cell density sensors to the USB port of a Windows PC. The user provided PC must be compatible with the Hamilton cell density software.
Found in these product categories:
Part/REF # 243810
-
(In Stock)(In Stock)Stock status is updated daily. For real-time status, please contact us.
Specifications
| Dimensions (W x D x H) |
Dimensions (W x D x H)
190 x 85 x 56 mm |
|---|---|
| Analog Output |
Analog Output
Optional AUX to Analog Output Box 4-20 mA |
| Digital Interface |
Digital Interface
RS485 Modbus (max. 31 addresses) |
| Operating System |
Operating System
Works with Windows 7, 8, 10 |
| Operating Voltage |
Operating Voltage
24 VDC |
| Housing Material |
Housing Material
Aluminium, anodized |
| Measuring Channels |
Measuring Channels
2 |
Additional specifications
| Power Supply |
Power Supply
24 VDC; 2.5 A |
|---|---|
| Operating Humidity |
Operating Humidity
0 to 80 % |
| Operating Temperature Range |
Operating Temperature Range
-10 to 45 °C |
Resources
Documents
-
Brochure
-
Catalogs
-
Certificates
-
Software Downloads
-
Technical Drawings
-
Technical Manuals
-
documents
Related Content
- Sensor Initialization: ArcView Cell Density Controller and ComBox (Pre-Amp Products) Article
- Maintaining ArcView Controller Data Storage Article
- Connecting Cell Density (Pre-amp Versions) to External Systems Article
- How often do Incyte sensors (pre-amp version) need to be calibrated? FAQ
- How does Incyte measure viable cell density? FAQ
Related Products
Accessories
-
4-20 mA Analog Output Box
The 4-20 mA Analog Output Box enables the conversion of the digital Modbus signal from the Cell Density Controller to a 4- 20 mA analog output. -
OPC License
The OPC License enables OPC XML-DA communication to SCADA systems. The License valid per Cell Density Controller. -
Incyte License
The Incyte License enables the use of Incyte Sensors and is valid per Cell Density Controller. -
Incyte Scan License
The Incyte Scan Licence enables the use of 17 frequencies over the measuring range of Incyte Sensors. The Scan provides advanced data. It is valid per Cell Density Controller. -
Dencytee License
The Dencytee License enables the use of Dencytee Sensors and is valid per Cell Density Controller. -
Arc View Controller Modbus-Profibus DP module
The Arc View Controller Modbus-Profibus DP module enables the conversion from Modbus to Profibus DP protocol. Please note - the module is designed to work with Arc View Controller 465 and 465 XL only.
